MRZ Instruction Manual
Version 1.1 (25-01-2020)
The Head is Flat
○

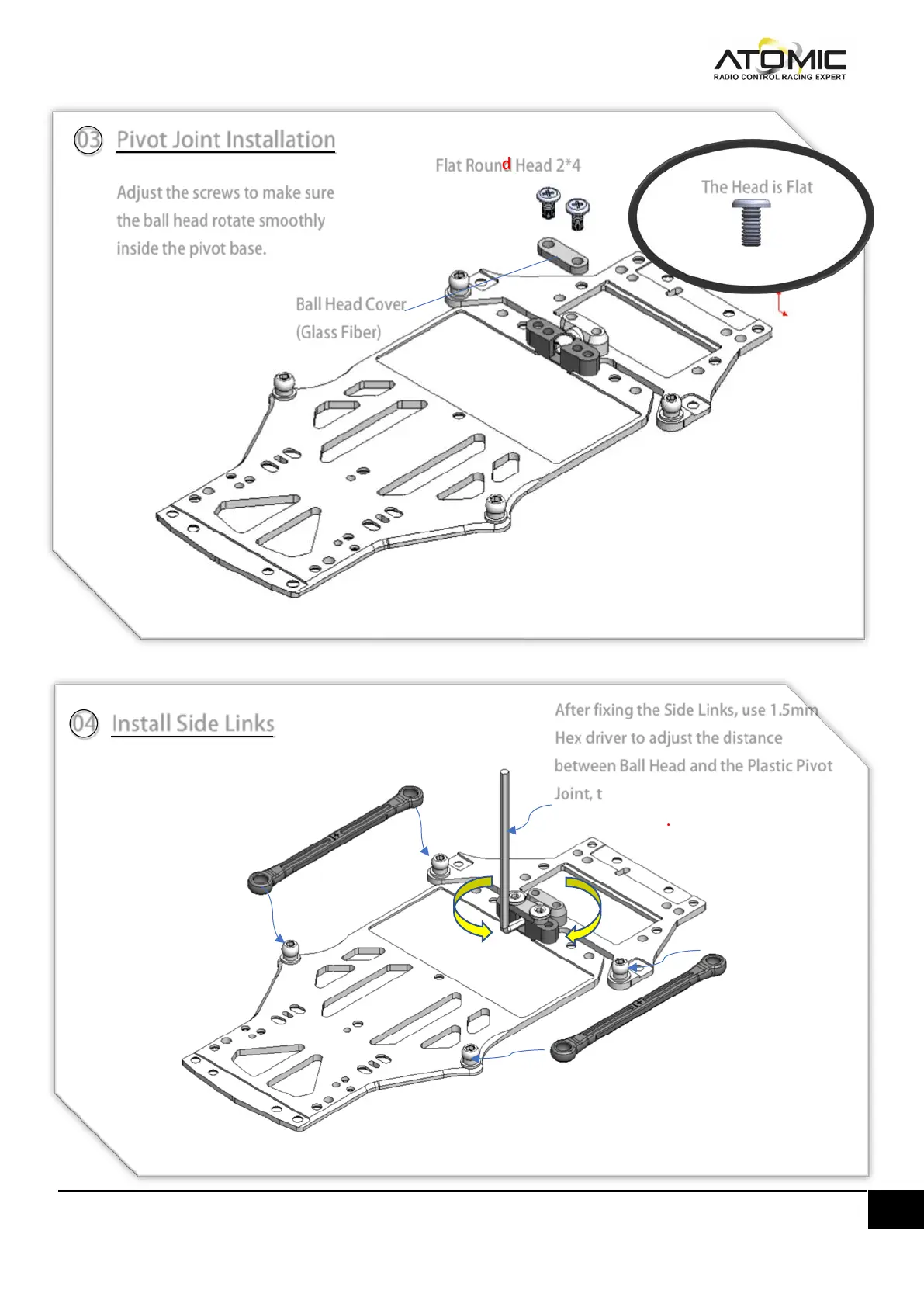

03 Pivot Joint Installation
Flat Round Head 2*4
Ball Head Cover
(Glass Fiber)
Adjust the screws to make sure
the ball head rotate smoothly
inside the pivot base.
○
04 Install Side Links
After fixing the Side Links, use 1.5mm
Hex driver to adjust the distance
between Ball Head and the Plastic Pivot
Joint, to make sure the motor plate can
rotate smoothly.
