Atomic MRZ - Gear Differential Components

MRZ Instruction Manual
Version 1.1 (25-01-2020)
20
○

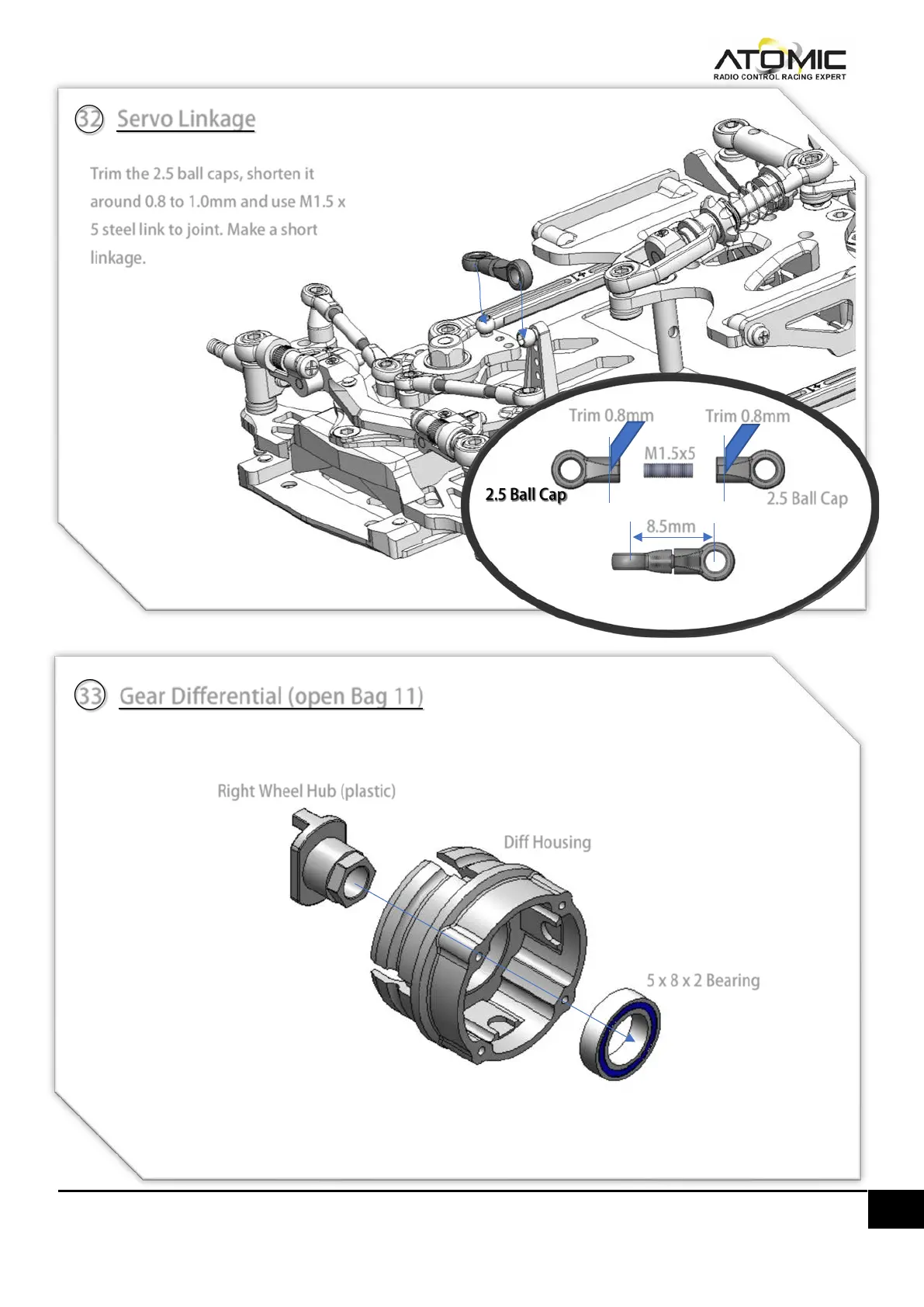

32 Servo Linkage
Trim 0.8mm
Trim 0.8mm
2.5 Ball Cap
2.5 Ball Cap
2.5 Ball Cap
M1.5x5
8.5mm
Trim the 2.5 ball caps, shorten it
around 0.8 to 1.0mm and use M1.5 x
5 steel link to joint. Make a short
linkage.
○
33 Gear Differential (open Bag 11)
Right Wheel Hub (plastic)
Diff Housing
5 x 8 x 2 Bearing
