Atomic MRZ - Gear Differential Assembly (Part 1); Gear Differential Assembly (Part 2)

27 pages

To Next Page

To Previous Page

MRZ Instruction Manual

Version 1.1 (25-01-2020)

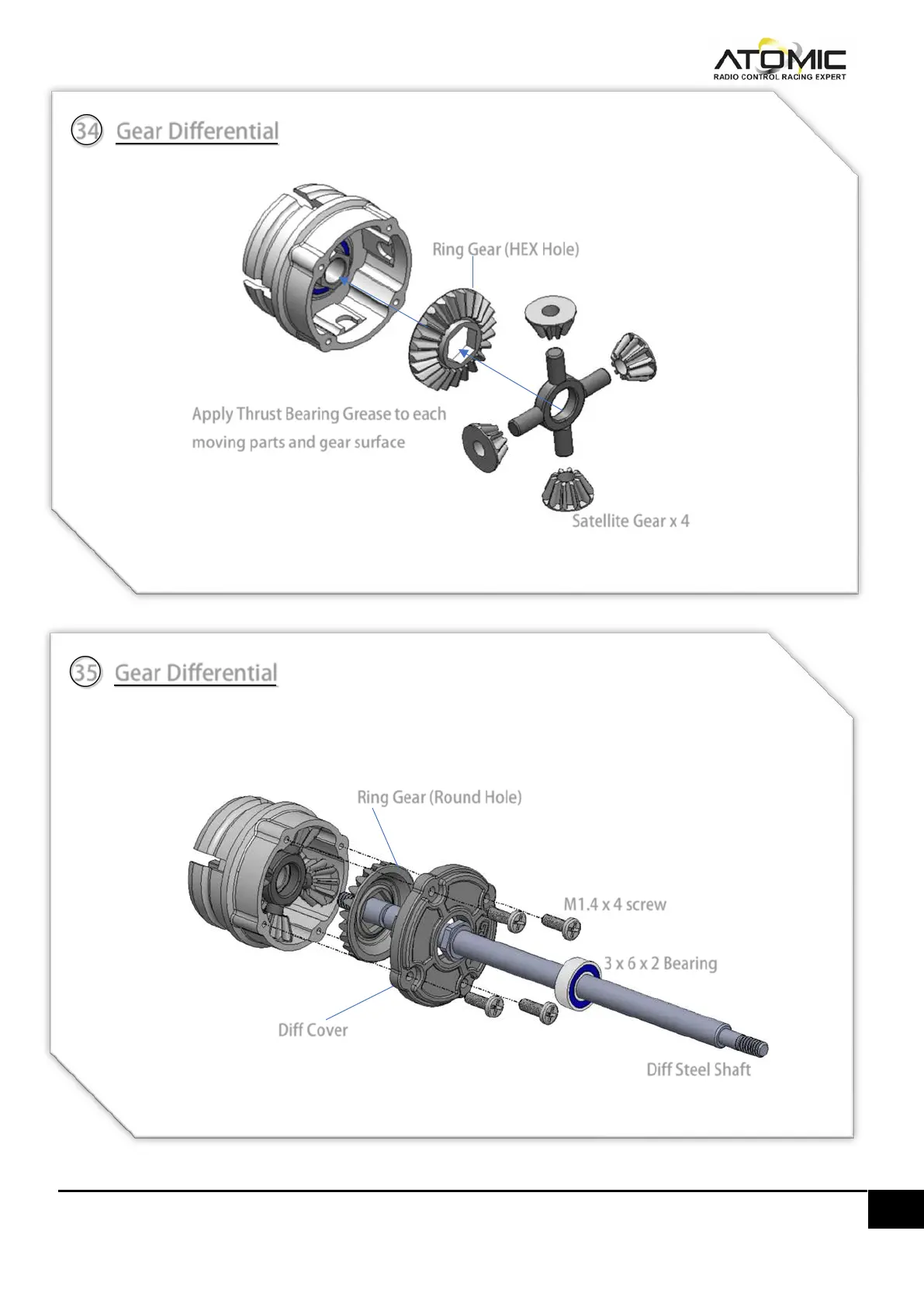

Ring Gear (HEX Hole)

Satellite Gear x 4

Apply Thrust Bearing Grease to each

moving parts and gear surface

○

34 Gear Differential

Ring Gear (Round Hole)

Diff Cover

M1.4 x 4 screw

3 x 6 x 2 Bearing

Diff Steel Shaft

○

35 Gear Differential
