Atomic MRZ - Gear Differential Assembly (Part 3); Spur Gear Installation

Atomic MRZ
27 pages
Save Page as PDF
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...
MRZ Instruction Manual
Version 1.1 (25-01-2020)
22
○

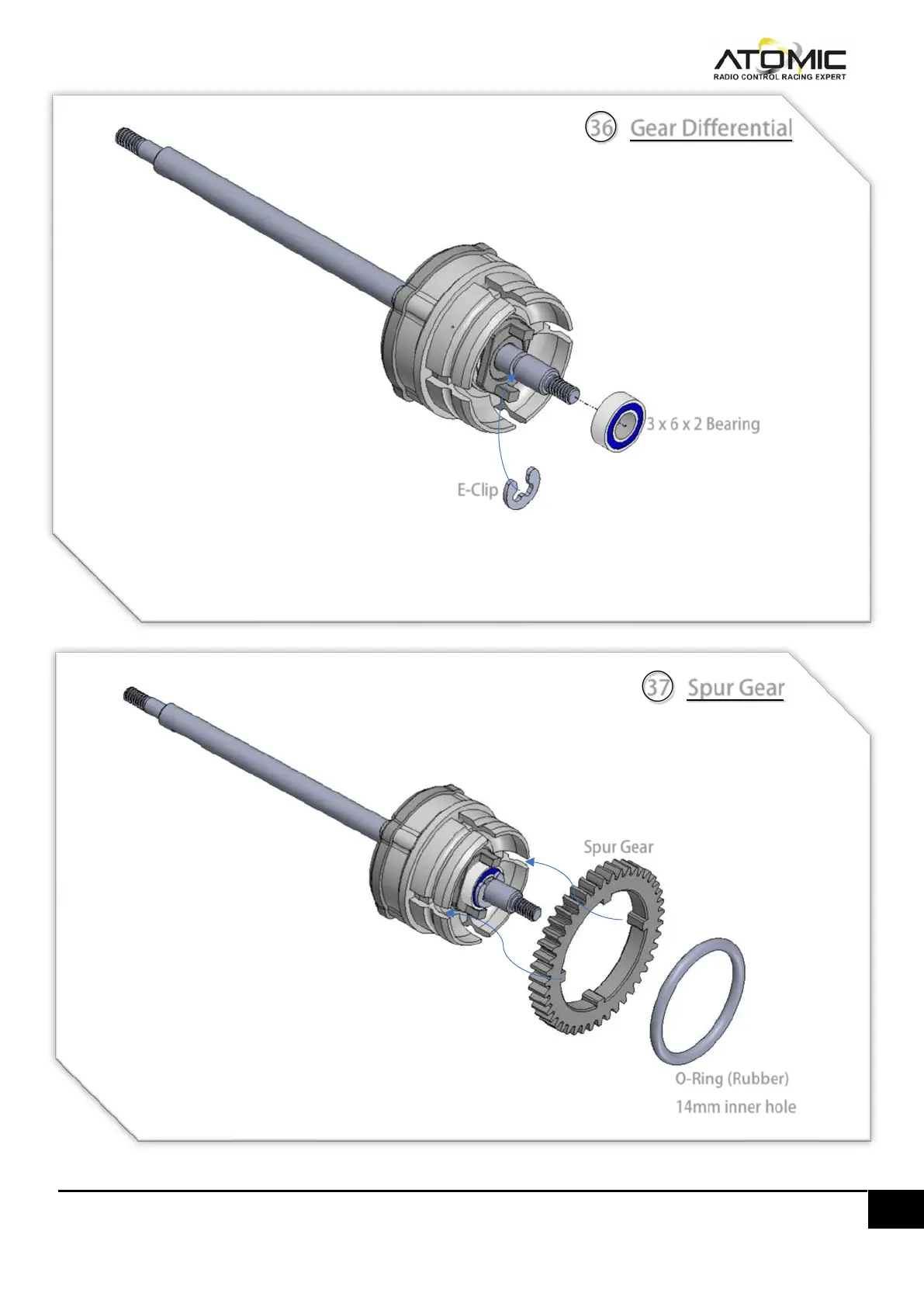

36 Gear Differential
3 x 6 x 2 Bearing
E-Clip
○
37 Spur Gear
Spur Gear
O-Ring (Rubber)
14mm inner hole
