Atomic MRZ - Differential Installation; Wheel Adaptor Installation

MRZ Instruction Manual
Version 1.1 (25-01-2020)
23
○

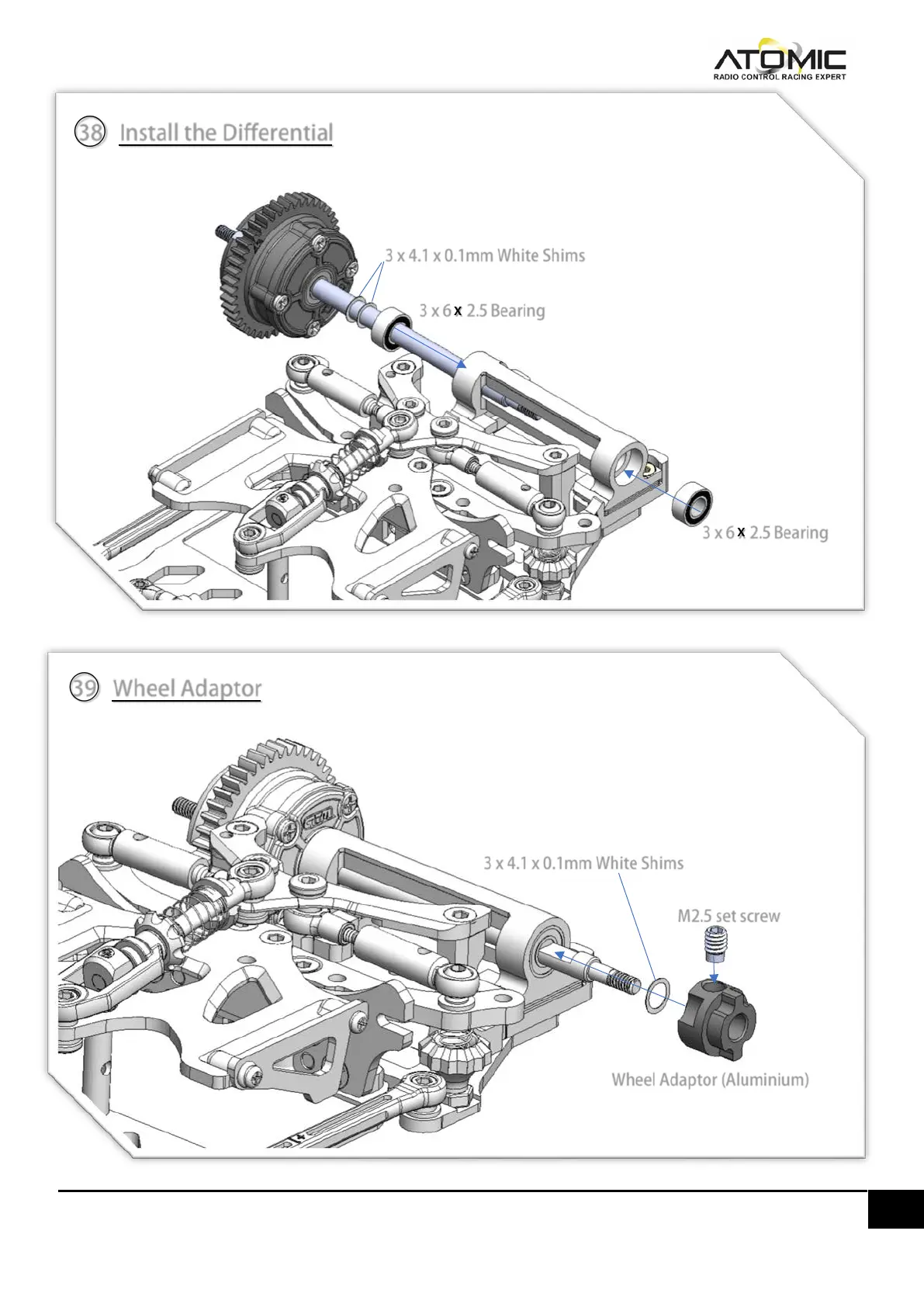

38 Install the Differential
3 x 4.1 x 0.1mm White Shims
3 x 6 x 2.5 Bearing
3 x 6 x 2.5 Bearing
3 x 4.1 x 0.1mm White Shims
Wheel Adaptor (Aluminium)
M2.5 set screw
○
39 Wheel Adaptor
