Atomos Connect-AC Series User Manual

MODES OF OPERATION
The Connect-AC converter has two
modes of operation: Converter and Test
Pattern Generator (TPG). To switch
between them, press and hold the MODE
button for more than 2 seconds. A mode
change will be indicated by the TPG LED
illuminating GREEN for TPG Mode and
the Rx LED illuminating RED or GREEN
for Converter Mode.
NOTE: Connect-AC S2H converts SDI
to HDMI and Connect-AC H2S converts
HDMI to SDI when in Converter Mode.
Converter Mode
The Rx LED indicates when an input
signal has been locked and is being
converted. See the pulldown removal
(PDR) section for PDR during conversion.
Connect-AC supports 16, 20 & 24-bit
audio in all modes of conversion.
A GREEN Rx LED indicates a locked
video signal is being converted.
A RED Rx signal indicates searching
for a signal for conversion.
Supported formats
Connect -AC S2H: HD-SDI>HDMI
1080p60
1080p59.94
1080p50
1080i60
1080i59.94
1080i50
1080p30
1080p29.97
1080p25
1080p24
1080p23.98
Connect-AC H2S: HDMI>HD-SDI
1080p60
1080p59.94
1080p50
1080i60
1080i59.94
1080i50
1080p30
1080p29.97
1080p25
1080p24
1080p23.98
1080psf30
1080psf29.97
1080psf25
1080psf24
1080psf23.98
720p60
720p59.94
720p50
486i59.94
480i59.94
576i50
1080psf30
1080psf29.97
1080psf25
1080psf24
1080psf23.98
720p60
720p59.94
720p50
486i59.94
480i59.94
576i50
Operation
Atomos Connect-AC User Manual V1.0 4

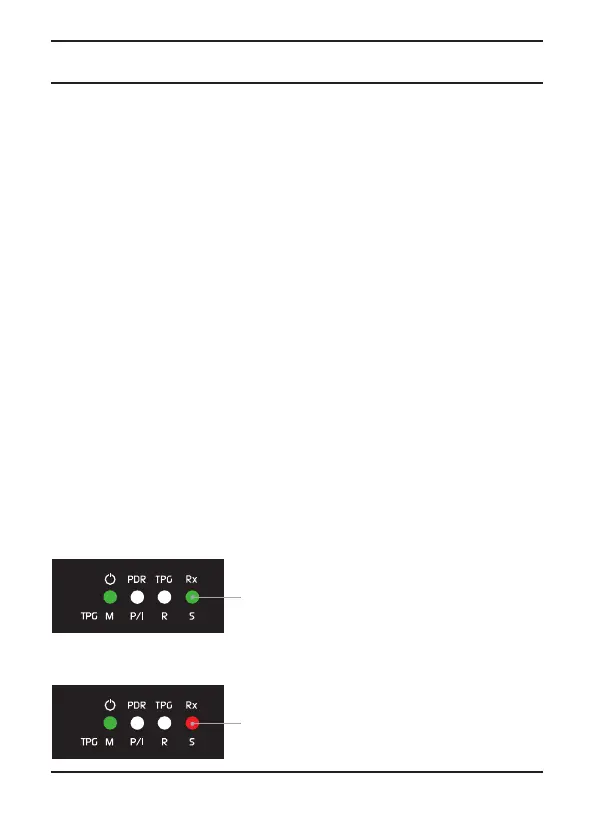

GREEN
Rx
RED
Rx
