Atomos Connect-AC Series User Manual

Changing the Test Pattern Output
While the Connect-AC is indicating the
TPG video mode, the type of test pattern
output can be changed by pressing the
PWR/BAT button.
Each subsequent press of the PWR/BAT
button while in this state will cause the
Connect-AC to scroll through the 4 test
patterns available in the following order:
NOTE: To change the test pattern in
use, you must first be in TPG Mode,
have activated the TPG Video Format
Indicator and while in this mode press
the PWR/BAT button.
To return back to Converter Mode,
press and hold the MODE button for
more than 2 seconds.

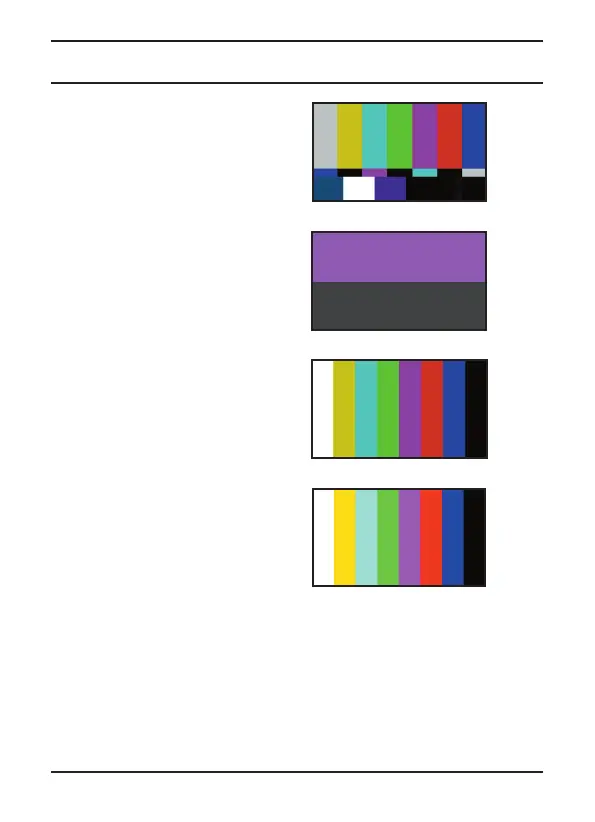

1. SMPTE Colour Bars 75%
2. SDI EQ/PLL Pathological
3. Colour Bars 75%
4. Colour Bars 100%
Operation
Atomos Connect-AC User Manual V1.0 9
