Operation
MODES OF OPERATION
The Connect converter has two modes of
operation: Converter and Test Pattern
Generator (TPG). To switch between them,
press and hold the MODE button for more
than 2 seconds. A mode change will be
indicated by the TPG LED illuminating GREEN
for TPG Mode and the Rx LED illuminating
RED or GREEN for Converter Mode.
NOTE: Connect S2H converts SDI to HDMI
and Connect H2S converts HDMI to SDI
when in Converter Mode.
Converter Mode
The Rx LED indicates when an input signal
has been locked and is being converted. See
the Pull-Down Removal (PDR) section for PDR
during conversion. Connect supports 16, 20 &
24-bit audio in all modes of conversion.

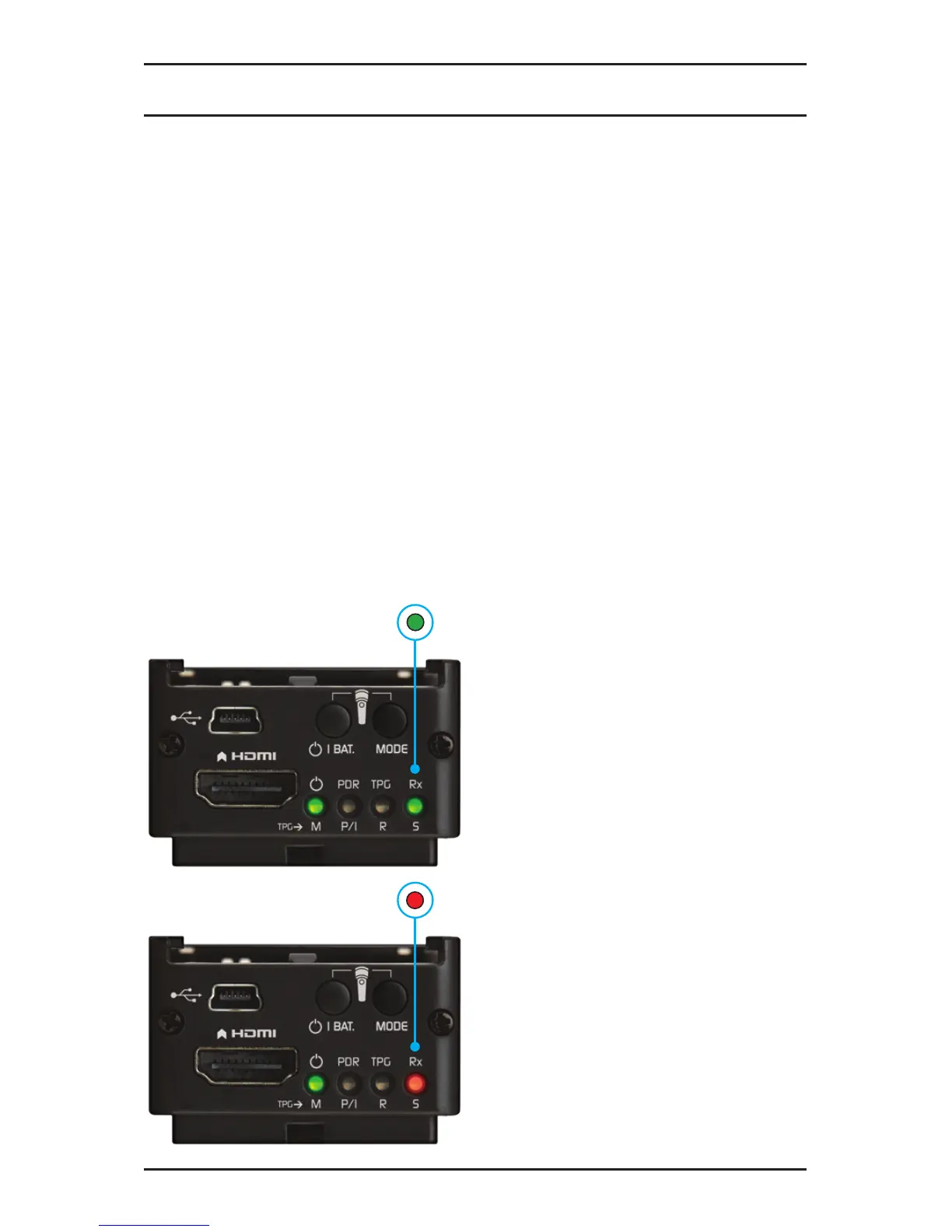

A GREEN Rx LED indicates a locked
video signal is being converted.
A RED Rx signal indicates searching
for a signal for conversion.
Supported formats
Connect S2H: HD-SDI>HDMI
1080p60
1080p59.94
1080p50
1080i60
1080i59.94
1080i50
1080p30
1080p29.97
1080p25
1080p24
1080p23.98
Connect H2S: HDMI>HD-SDI
1080p60
1080p59.94
1080p50
1080i60
1080i59.94
1080i50
1080p30
1080p29.97
1080p25
1080p24
1080p23.98
1080psf30
1080psf29.97
1080psf25
1080psf24
1080psf23.98
720p60
720p59.94
720p50
486i59.94
480i59.94
576i50
1080psf30
1080psf29.97
1080psf25
1080psf24
1080psf23.98
720p60
720p59.94
720p50
486i59.94
480i59.94
576i50
