Atomos Connect. User Manual V1.0 3
1. POWER/BATTERY
2. MODE
3. USB port (Firmware updates only)
4. HDMI port (H2S in / S2H out)
5. LED DISPLAY
6. SDI CONNECTOR
7. BATTERY TOP
8. BATTERY SHOE
LED INDICATOR OVERVIEW
There are 4 modes of operation indicated
by LEDs.
MODE LED COLOUR
CONVERTER MODE (ext. bat.)
(int. bat)
TPG MODE
PRECISE BATTERY LEVEL
FLASHLIGHT MODE
LED LABELS
PDR Pulldown Removal
TPG Test Pattern Generator
Rx Conversion Input Status
TPG> (TEST PATTERN MODE)
M Mode
P/I Progressive/Interlaced
R Rate
S Scan

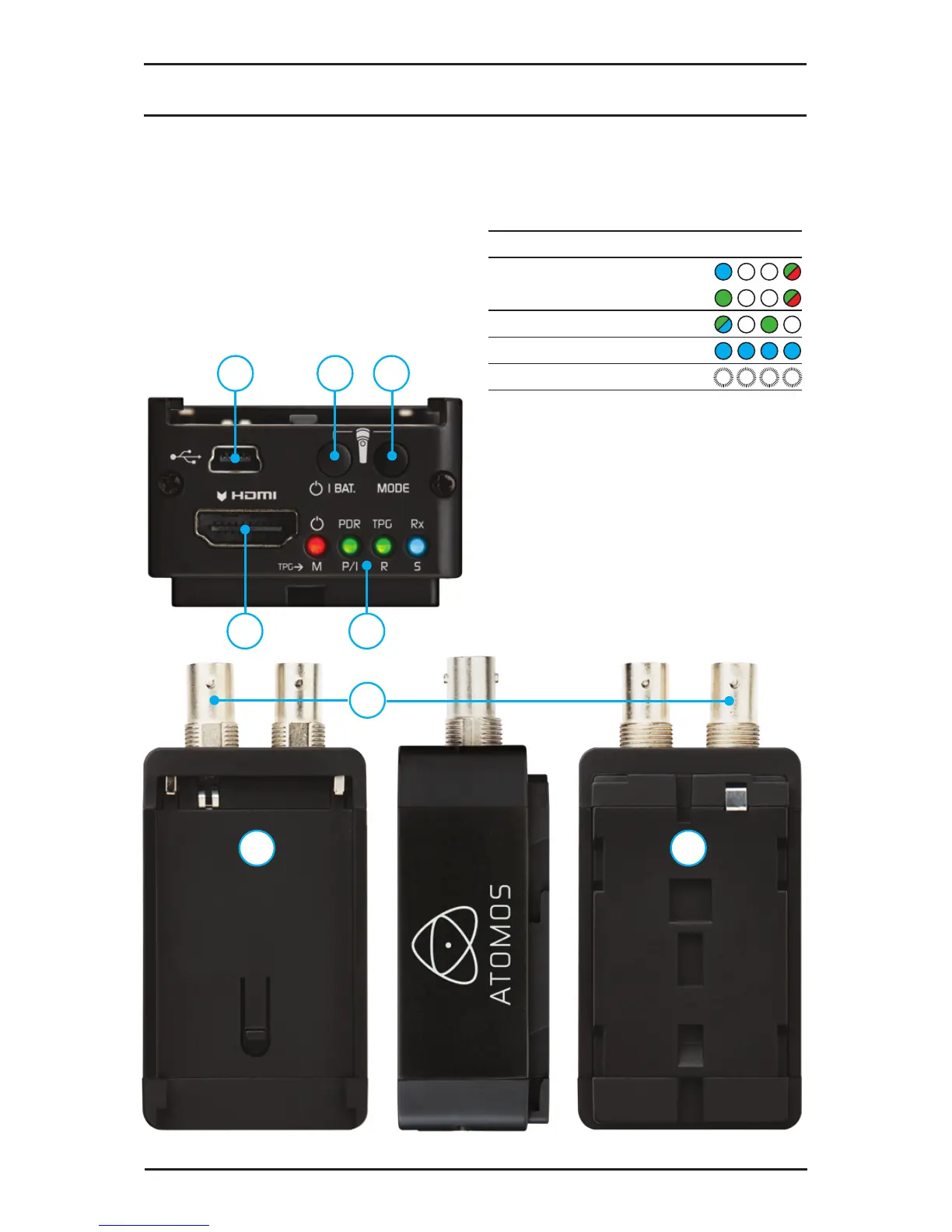

Unit description
1 23
4 5
6
7 8
