Atomos NINJA STAR User Manual

Atomos Ninja Star – User Manual Edition 1: October 2014 10
The Ninja Star is controlled by a simple
user-friendly interface. Pictured right are the
main controls seen when the Ninja Star is
rst powered up and there is a video input
connection.
Note: HDMI TRIGGER + Timecode will be auto
detected on the Ninja Star.
Record
• CODEC and Pulldown mode can be selected
by holding the previous and next buttons for
two seconds.
• The Record button can be used to start and
stop the recordings.
• The LEDs indicate the status of battery levels,
audio levels, time remaining on card, as well
as video options.

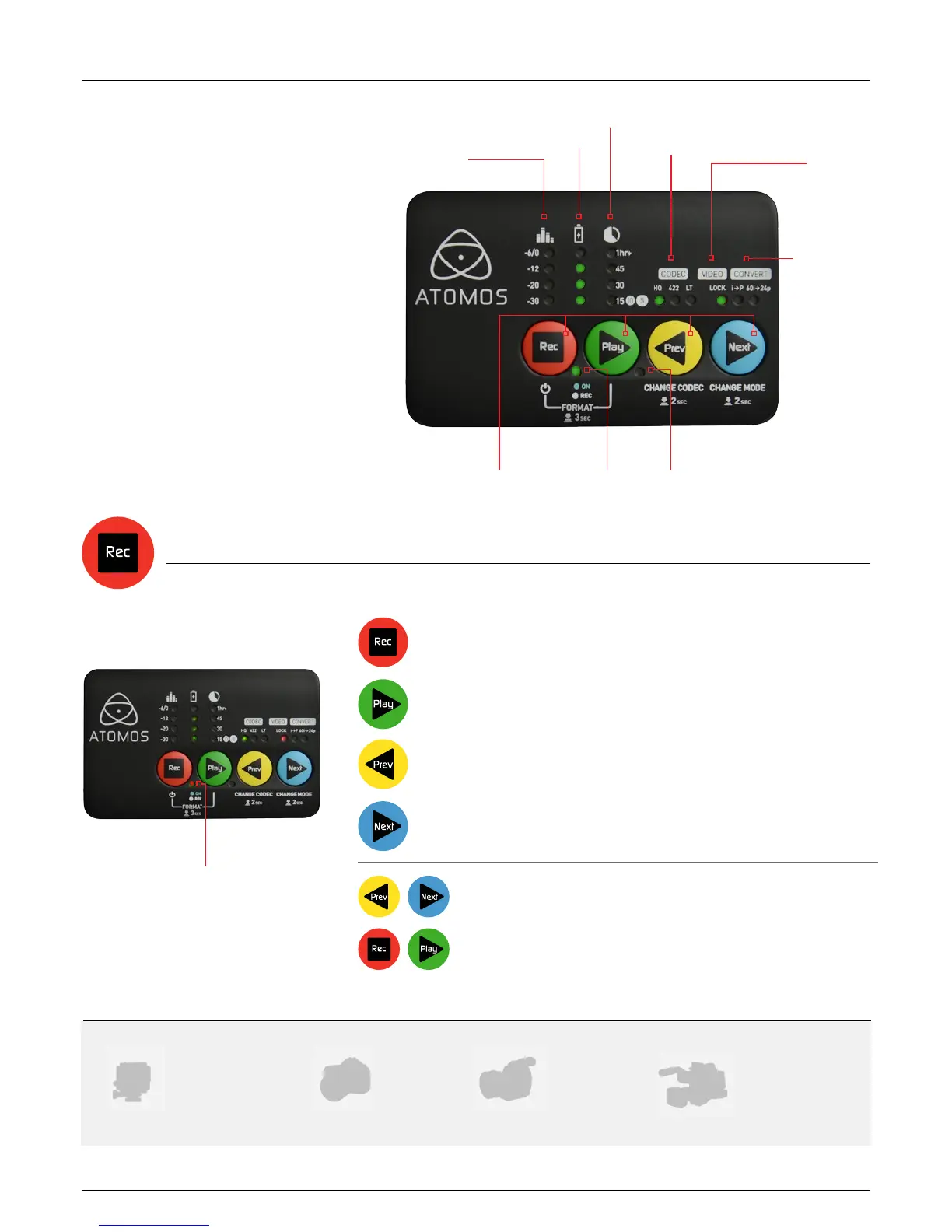

Using the Ninja Star
Record
OR
Record: Press to start/stop
recording (requires video lock)
Auto Record Trigger: Supported on
some Sony and Canon cameras
Play: Press to enter playback mode.
Hold for 2 seconds to select audio channel levels between HDMI and Analogue.
Change CODEC: Hold for 2 seconds to change CODEC
Change mode: Hold for 2 seconds to change pulldown removal setting
Hold both Rec + Play for 3 seconds to format CFast Card
Hold both Prev + Next for 2 seconds to Lock/Unlock the Ninja Star
panel buttons
Indicator LED light turns red
when recording
Record from:
Action Cam DSLR Mirrorless Video Camera
Record / Play / Prev / Next Playback
Indicator
Recording
Indicator
Baery Indicator
Time Remaining
Audio Levels
Recording Quality
Pulldown Status
Video Lock

Atomos NINJA STAR Specifications

General

Video in	1 x HDMI Micro (1.4)
Audio input	3.5mm Stereo Line-in
Aspect ratio	16:9
Product color	Black
LED indicators	Yes
Compatible memory cards	CF
Playback resolutions supported	1080i60, 1080i59.94, 1080i50, 1080p30, 1080p25, 1080p24, 1080p23.98, 1080pSF23.98, 1080pSF24, 1080pSF25, 1080pSF30, 720p60, 720p59.94, 720p50, SD 480i, 576i
Power consumption (max)	4.5 W
Power consumption (typical)	3.5 W

Weight and Dimensions

Weight	249 g
Dimensions (WxDxH)	95 x 60 x 25 mm
