Atomos Ninja Star – User Manual Edition 1: October 2014 16
AC Adaptor (sold separately)
This connects on the battery slot on the back of the Ninja Star.
The end of the adaptor will connect to a mains plug.
Alternatively you can use any NP-Compatible Charger or power supply,
as long as they use a “Dummy Battery”.

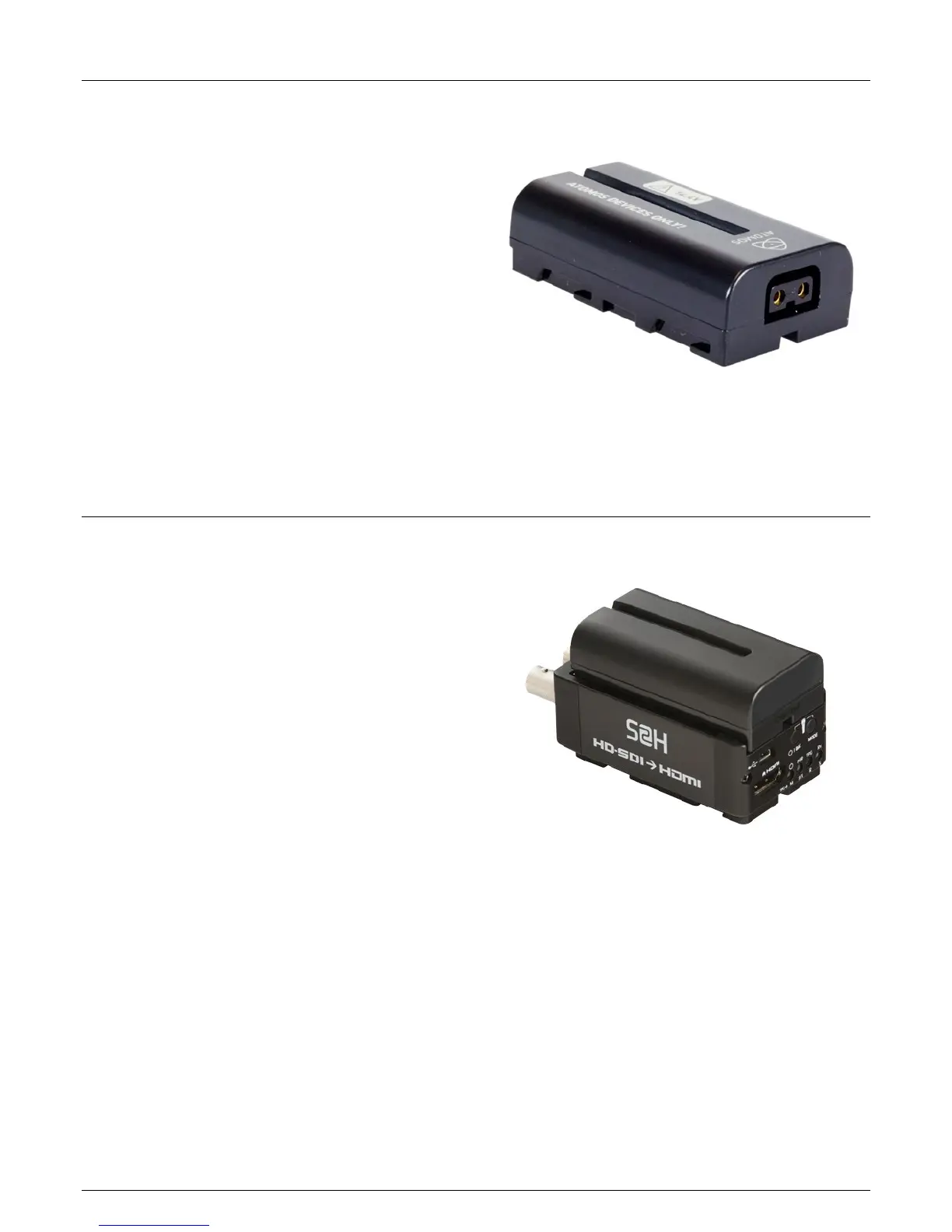

D-Tap Adaptor (sold separately)
This adaptor allows you to take the power supply from any source that has
a D-Tap connection such as external battery packs.
The D-Tap also connects to the battery slot of the Ninja Star. You will need a
D-Tap to D-Tap cable (sold separately). Voltages 7.2 to 16.8 volts.
Please refer to Atomos D-Tap document on the Atomos Knowledge Base.
CONNECT
You can think of Atomos Connect Converters as stand-alone devices
or as specially designed modules to give the Ninja Star additional
capabilities. With them you can:
• Add an SDI input to the Ninja Star for connection to
non-HDMI devices using Connect S2H
• Add an SDI output to the Ninja Star for playout to
SDI monitors using Connect H2S
There is nothing to set up when you use a Connect Converter. Just
secure the device in the battery slot and place the battery that previously
occupied that slot in the battery slot on the converter.
Using Ninja Star with external power supplies
Using Ninja Star with Atomos Connect Converters
