ATOMRC Dolphin - VTX Tx15 Manual; VTX Tx15 Wiring Diagram; VTX Tx15 Specifications; VTX Setting and Operation

1.Hold button 3 seconds into setting mode.
2.In setting mode. short press the button to change band.
3.Then hold button 3 seconds into CH setting mode, short press button to change CH.
4.Hold button 3 second to get into Power setting mode, there is short bar on LED, short
press to switch power, 1 bar means 200mW, 2 bar means 800mW, 3 bar means 1500mW.
1.⻓按设置按键三秒，进⼊波段设置模式。
2.在设置模式下，短按按键切换波段。
3.再次⻓按按键三秒钟，进⼊频道切换模式，短按按键切换频道。
4.再次⻓按按键三秒钟，进⼊切换功率模式，短按按键切换功率，数码管⼀条为200mw，两条
为800mw, 三条为1500mw。
Please download the latest user manual at
www.atomrc.com/pages/download

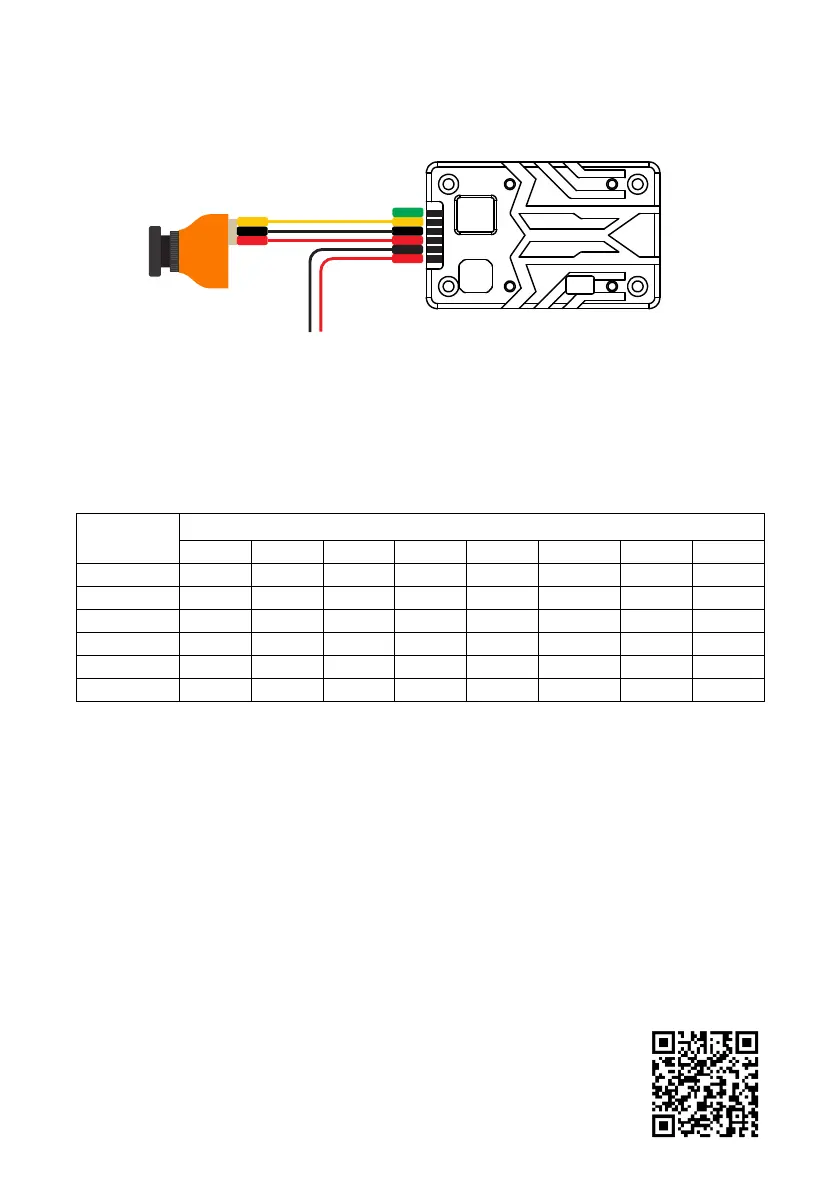

GND
VIDEO
5V
AUDIO
VIDEO
GND
5V OUT
GND
VCC
Please make sure antenna is installed before power on, otherwise the VTX will fried!!!
图传发射机通电前务必确认天线已安装妥当，否则发射线会烧毁!!!
Band
Channel
1
2
3
4
5
6
7
8
Band A
5865
5845
5825
5805
5785
5765
5745
5725
Band B
5733
5752
5771
5790
5809
5828
5847
5866
Band E
5705
5685
5665
5645
5885
5905
5925
5945
Airwave/FS
5740
5760
5780
5800
5820
5840
5860
5880
Race Band
5658
5695
5732
5769
5806
5843
5880
5917
L Band
5362
5399
5436
5473
5510
5547
5584
5621
Voltage input/电压输⼊范围: 2~6S Lipo Power/功率: 200/800/1500mw Switchable
Power consumption/功耗: 9V 1.1A Frequency/频率:5.3~5.9Ghz
VTX Tx15 Uermanual/图传说明书
Tx15 Wiring Tx15图传接线图Diagram/
Tx15 /Tx15规格参数Specs
VTX Setting/图传设置
