ATOMSTACK B3 - Capturing Calibration Dot Card Positions

07
3.2.6 Place the dot card in the position of the lightburn diagram, capturing it in a sequence of 9 positions: center, directly below center, left
center, right center, top center, bottom right corner, bottom left corner, top left corner, and top right corner. The captured position's score
should be ≤0.5, and the pattern should have slight deformation or no deformation. Click "Next." If the pattern is not captured, use the
method in 2.6 to ne-tuning the lens or move the dot card to a dierent position for recapturing (it is recommended to place the dot card in
the order of left, right, top, bottom, and center) until capturing is successful.

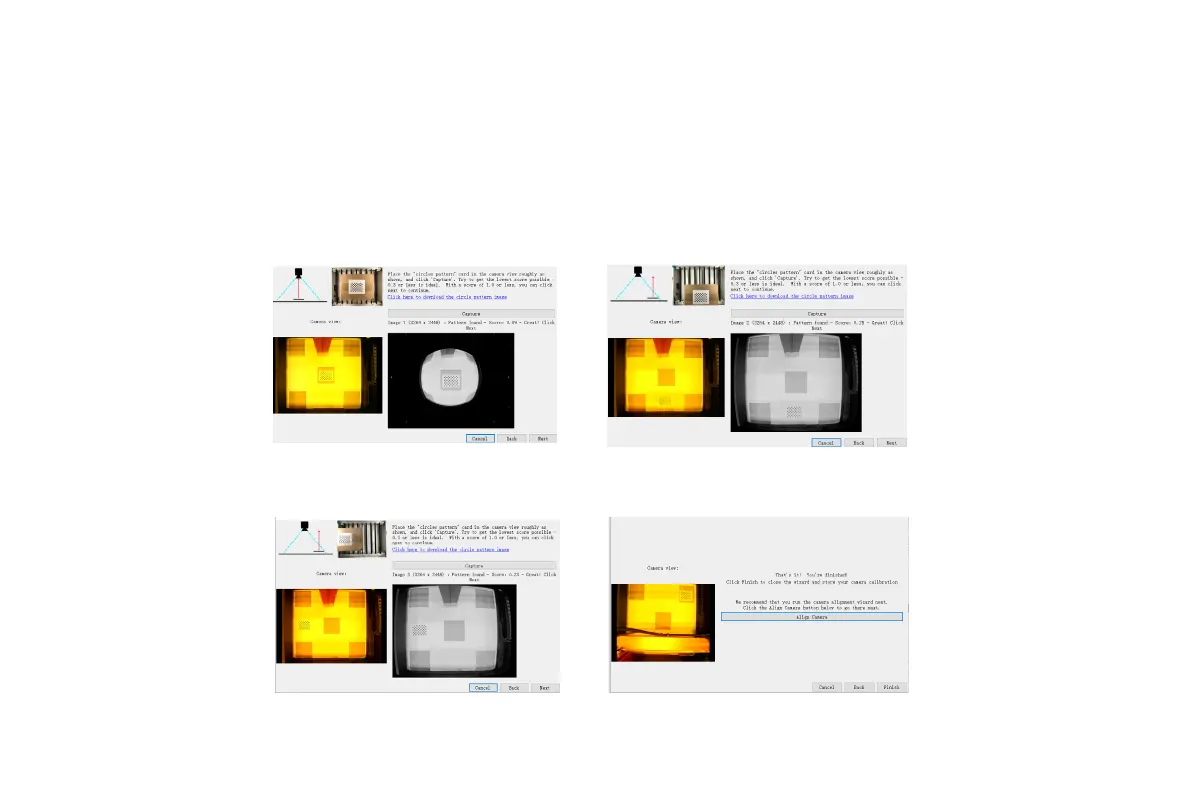

Capture in the center Capture below the center
Capture in the left center Capture complete
