ATOMSTACK B3 User Manual

08

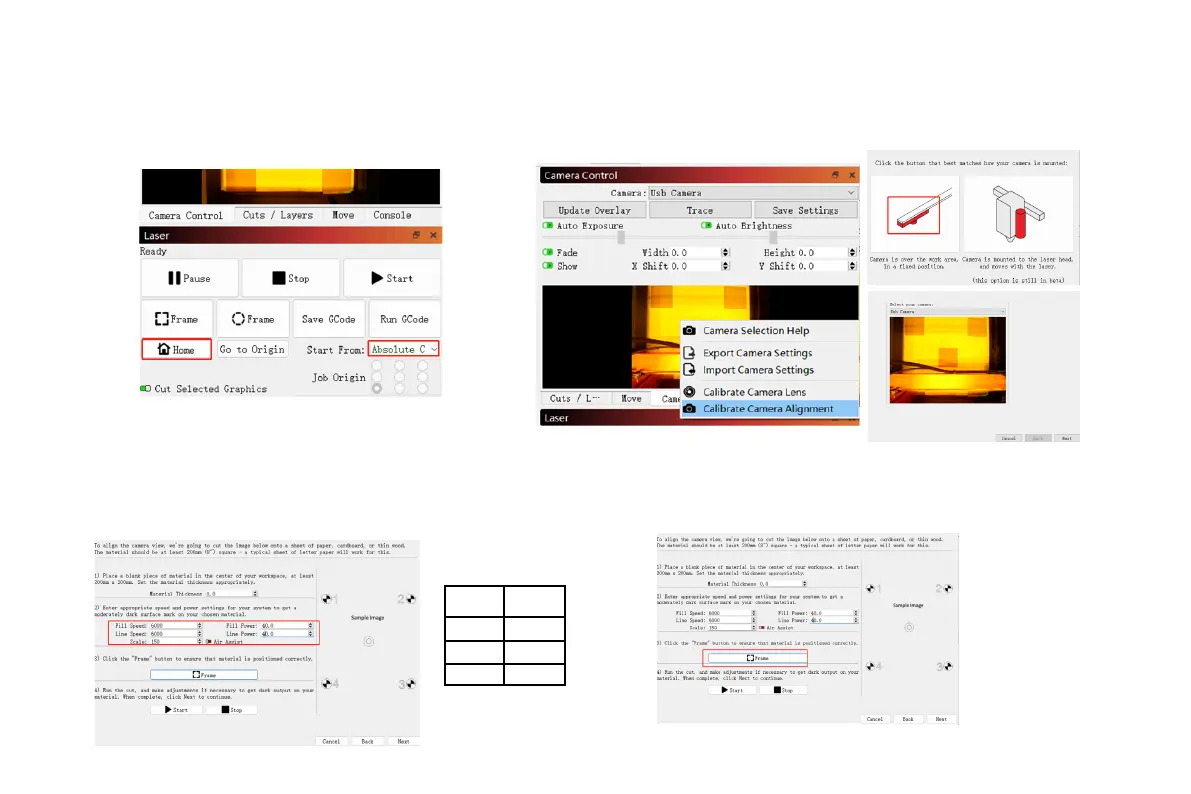

3.3 Alignment Calibration
3.3.1 Remove the dot card, x the laser focus to 8mm, and
select "Absolute Coords"->"Home" for the coordinates.
3.3.2 Click on "Camera Control"->"Calibrate Camera Alignment"->"-
Camera"->"Next".
Scale
Scale
mm^2
100
200
200*200
150
300*300
400*400
3.3.3 Set the engraving parameters (refer to the laser's
parameter table) and set the Scale value according to
the desired positioning size, recommended input is 150.
3.3.4 Check for any collisions while framing. If a collision occurs, adjust
the Scale value to a smaller one.

ATOMSTACK B3 Specifications

General

Brand	ATOMSTACK
Model	B3
Category	Industrial Equipment
Language	English

Summary

Statement

Safety and Operational Precautions

Lists important safety and operational precautions for using the ATOMSTACK protective case.

1.LED Light Function in the Protective Box

2.Box Opening Detection Function

Box Opening Detection Precautions

Lists specific precautions related to the box opening detection function.

Enable Box Opening Detection

Explains the steps to enable the box opening detection function.

Enabling Box Opening Detection Process

Provides instructions on how to enable the box opening detection function.

Resume Engraving After Opening Box Cover

Instructions on resuming engraving after opening the box cover.

3. Camera function detection

Camera Function Preparation Steps

Prepares the workspace and materials for camera function calibration.

Lens Calibration Procedure

Guides through the process of calibrating the camera lens.

Calibrate Camera Lens

Instructs to right-click and select 'Calibrate Camera Lens'.

Camera and Calibration Type Selection

Guides selection of camera name and calibration type for comprehensive calibration.

Disable Honeycomb Check Option

Instructs to close the 'Honeycomb check enabled' option.

Capturing Calibration Dot Card Positions

Details placing the dot card and capturing images for calibration at nine positions.

3.3 Alignment Calibration

Prepare for Alignment Calibration Setup

Sets focus and selects coordinates for alignment calibration.

Initiate Camera Alignment Wizard

Navigates the software to start the camera alignment process.

Set Engraving Parameters and Scale Value

Sets engraving parameters and the scale value for alignment.

Collision Check and Scale Adjustment During Framing

Checks for collisions during framing and suggests adjusting scale if needed.

Create Positioning Marks for Alignment

Initiates the process to create positioning marks for alignment.

Move Laser and Capture Alignment Image

Moves the laser after engraving for better visibility and captures image.

Mark Alignment Cross Points Sequentially

Instructs to click on cross points in sequence for alignment.

Finalize Alignment Calibration

Completes the alignment wizard by clicking the 'Finish' button.

Update Overlay After Calibration

Removes material and updates the overlay for final positioning.

3.4 How to Use Positioning

Position Material and Update Overlay

Places material, sets coordinates, and updates overlay for positioning.

Position Pattern and Start Engraving

Positions the pattern, sets parameters, and starts the engraving process.

Review Engraving Results

Shows the results after the engraving process is completed.

3.5 How to Record a Video

Turn Off Camera Control

Turns off the camera by selecting 'None' in the camera control.

Enable Camera and Choose Recording Software

Enables camera and suggests software for video recording based on OS and duration.

Optimize Windows Video Recording Settings

Recommends lower resolution for Windows video recording to save memory.

Record Video Using Quick Player

Guides on using Quick Player for video recording, selecting camera and starting.

FAQ

Edge Collision in Camera Calibration

Addresses edge collision issues during calibration alignment.

Resolving Positioning Accuracy Errors

Provides solutions for positioning accuracy errors exceeding 2mm.
