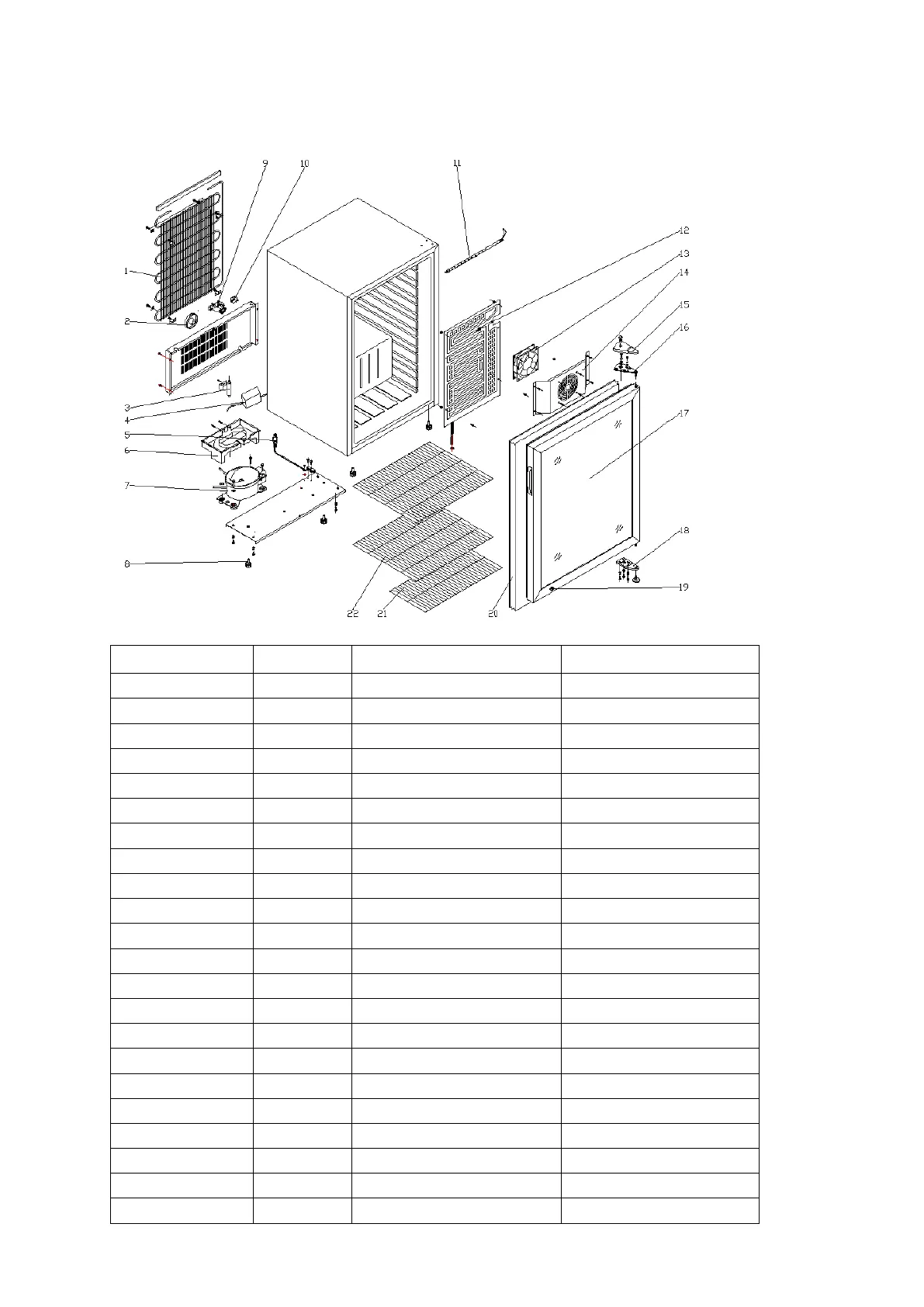

--Exploded view of CTD-5
--Part list of CTD-5
No in explode view
Part number
Description
Qty.
1
CTD034
Condenser
1
2
CTD001
Thermostat knob
1
3
CTD005
Filter（∅16 ∗ 30）
1
4
CTD006
Constant current power supply
1 AC85v-265v-15D
5
CTD009
Power line （JT-3）
1
6
CTD035
Water receiving plate
1
7
CTD022
Compressor(UKN60YA)
1
8
CTD010
Base foot
4
9
CTD002
Thermostat （WP1）
1
10
CTD003
ON/OFF button
1
11
CTD036
Led lamp
1
12
CTD037
Evaporimeter
1
13
CTD038
Fan
1
14
CTD039
Fan cover
1
15
CTD011
Hinge cover
1
16
CTD041
Hinge upper
1
17
CTD042
Door
1
18
CTD043
Hinge down
1
19
CTD018
Lock
1
20
CTD044
Door seal
1
21
CTD045
Shelf bottom
1
22
CTD046
Shelf top
3
