This document describes the Altraflame Electric Fireplace, a home appliance designed to provide warmth and aesthetic appeal.

Function Description:

The Altraflame Electric Fireplace is an indoor heating appliance that simulates the look and feel of a traditional fireplace without the need for combustion. It functions as an electric heater and a decorative element, featuring a flame generator assembly that creates a realistic flame effect. The unit is designed for homeowners and is operated via a touchscreen control panel on the fireplace itself or a remote control. It offers various temperature settings, a timer function, and adjustable ember bed and sidelight colors to customize the ambiance.

Important Technical Specifications:

Models: FA23V60L-C7, FA23V60L-C8
Voltage: 120VAC
Frequency: 60Hz
Watts: 1400 Watts
Cord: 6 feet (1.8M) three-wire cord, exiting from the rear of the fireplace.
Temperature Settings: 11 temperature settings ranging from 64°F to 82°F (18°C to 28°C).
Timer: Adjustable from 30 minutes to 6 hours.
Ember Bed/Sidelight Colors: 7 colors (d8-d2) and a dynamic condition (d1) that can be cycled through.
Remote Control Range: Up to 6 meters.
Batteries for Remote Control: 2 AAA batteries.

Usage Features:

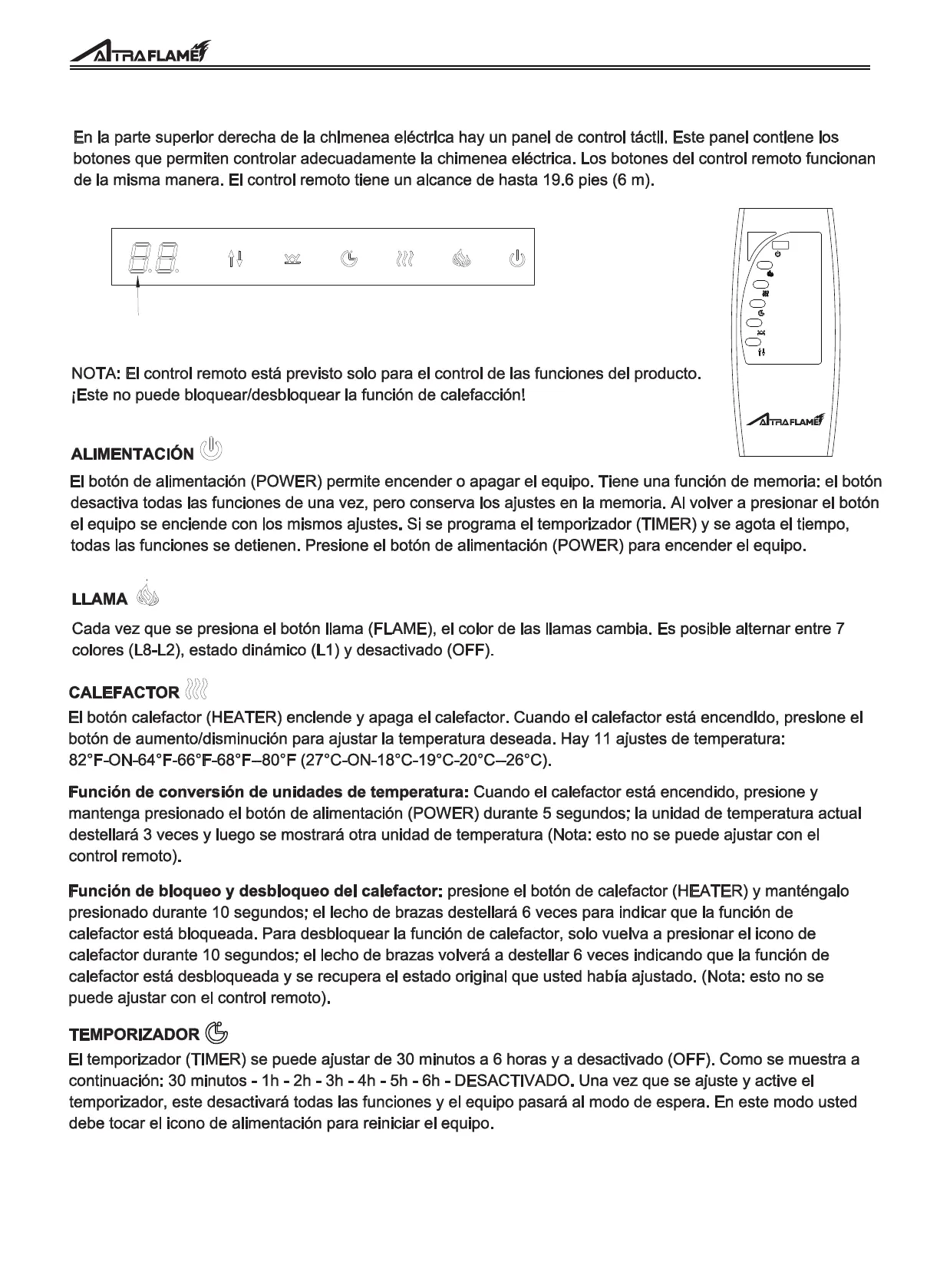

Control Options: The fireplace can be controlled using a touchscreen panel located on the top-right of the firebox or with the included remote control.
Power On/Off: The POWER button turns the appliance on or off. It has a memory function, retaining previous settings. Pressing the button again will cycle through the settings. If the TIMER has expired, all functions will stop.
Flame Effect: The FLAME button controls the color of the flame changes. There are 7 colors (L8-L2) and a dynamic condition (L1) that can be cycled through.
Heater Function: The HEATER button turns the heater On & Off. When the heater is on, pressing the Increase/Decrease button changes the desired temperature. There are 11 temperature settings available.
Temperature Unit Conversion: Holding the heater button for 5 seconds converts the temperature unit between Fahrenheit and Celsius.
Lock & Unlock Heater Function: Press and hold the Heater button for 10 seconds to lock or unlock the heater function. When locked, the heater icon will flash 6 times, and the ember bed will also flash 6 times.
Timer Function: The TIMER button adjusts the operating time from 30 minutes to 6 hours in 30-minute increments. Once the timer is set, it will close all functions and enter standby mode when the time expires.
Ember Bed Button: Each time the Ember Bed Button is pressed, the color of the ember bed and side light changes. There are 7 colors (d8-d2) and a dynamic condition (d1) that can be cycled through.
Increase/Decrease Button: With the heater on, pressing the Increase/Decrease button changes the desired temperature. There are 11 temperature settings available.
Installation: The fireplace is designed for easy installation. It involves positioning the unit into a mantel, securing it with screws, and connecting it to a grounded electrical outlet. The manual provides detailed steps for installing the acrylic crystals and sidelights.
Cold Climate Installation Recommendation: When installing against a non-insulated exterior wall or chase, it is mandatory to insulate outer walls to conform to applicable insulation codes.
Electrical Connection: The unit comes with a 6-foot (1.8M) three-wire cord. Users should plan installation to avoid using an extension cord.

Maintenance Features:

Cleaning Trim: The metal trim should be cleaned using a soft cloth slightly dampened with a citrus oil-based product, then buffed with a clean soft cloth. Brass polish or household cleaners should not be used as they can damage the metal trim.
General Maintenance: The motors for the fan and flame generator are pre-lubricated for extended bearing life and do not require further lubrication.
Periodic Cleaning: Periodic cleaning/vacuuming of the fan/heater unit is recommended. Always ensure the unit is turned OFF and unplugged before cleaning.
Battery Replacement: The remote control requires 2 AAA batteries. Instructions are provided for replacing the batteries, ensuring correct polarity.
Troubleshooting: The manual includes a troubleshooting section for common issues, such as fault codes E1 (heater overheating), E2 (NTC defective), and E3 (heater not working), along with corresponding solutions.
Safety Warnings:
- Always turn off and unplug the unit before any maintenance or cleaning to reduce the risk of fire, electrical shock, or personal injury.
- Any electrical repairs or rewiring must be carried out by a licensed electrician in accordance with national and local codes.
- If repairing or replacing electrical components, the original wire routing, color coding, and securing locations must be followed.
- Electric outlet wiring must comply with local building codes and other applicable regulations.
- Do not use the fireplace if any part has been submerged in water; contact a qualified service technician immediately.
- Disconnect power before attempting any maintenance or cleaning.
- Always remove the electrical plug from the wall outlet during any service of the appliance.

Warranty:

The product comes with a 1-year limited warranty covering defects in materials and manufacturing from the date of purchase, subject to specified conditions and limitations. The warranty is non-transferable and applies only to the original owner. It does not cover damage from improper installation, abuse, accident, or misuse. Any repairs or replacements under warranty must be confirmed by the company's inspection. The warranty is void if the fireplace is subject to prolonged periods of dampness or condensation, unauthorized alteration, willful abuse, accident, or misuse, or if the original purchase receipt is not provided.
