ATS DWS-7 - Parts Breakdown DWS-7

Purificare ©2015
14

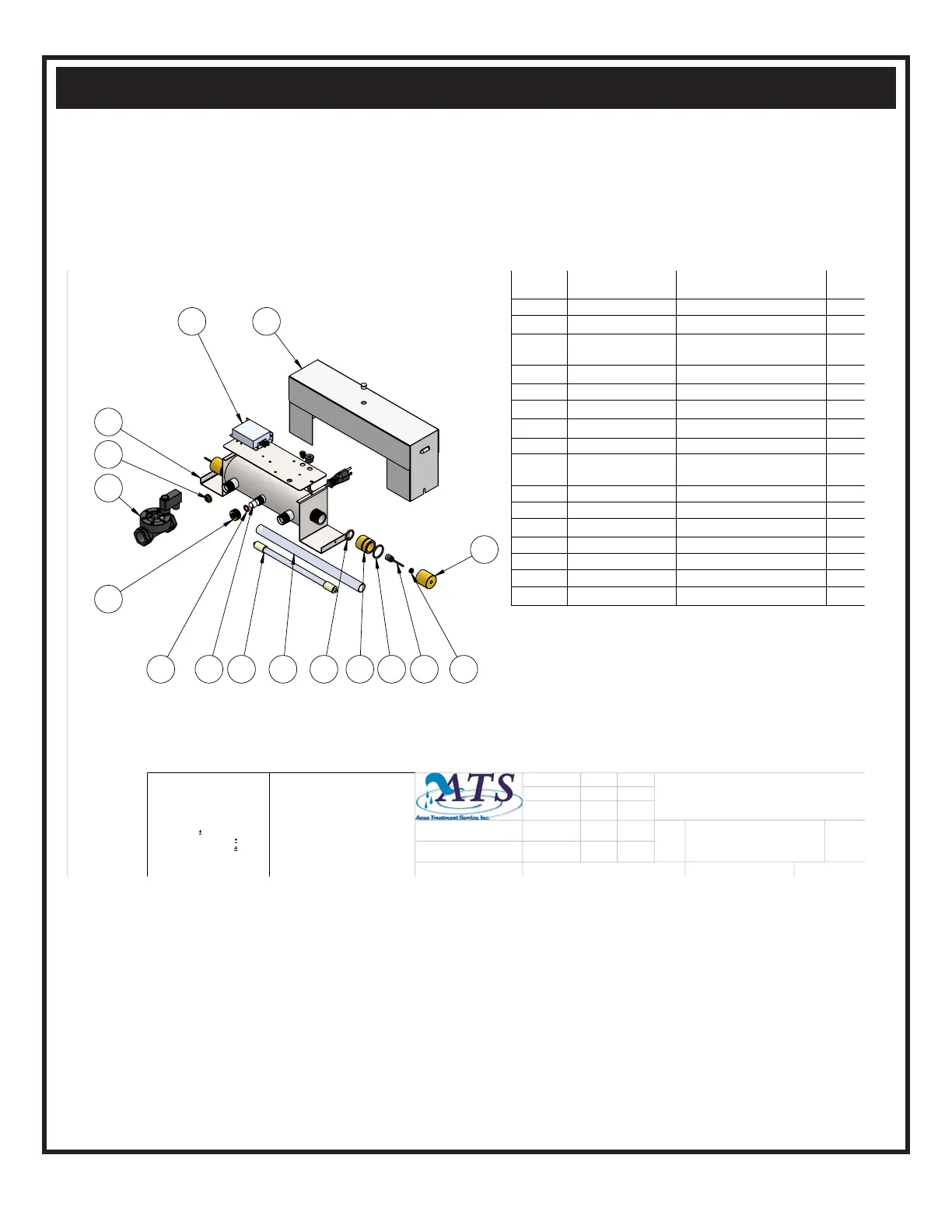

Parts Breakdown DWS - 7
DWS © 2019 • www.aquat.com
14 11
8
5
1213
4
2
10
1
9
15 763
16
NOTE:
REPLACEMENT KIT ATS-4025 AVAILABLE
INCLUDES;
ATS-N1156, ATS5-411, ATS-4010, ATS8-544,
ATS-7030, ATS8-546
ITEM
NO.
PART NUMBER DESCRIPTION QTY.
1 ATS-5100 Chamber 1
2
ATS-5172 Sightport Lens 1
3
ATS-5173
Orange .7" OD
Viewport O Ring
1
4
ATS-5171 Sightport Nut 1
5
ATS5-411 Brass End Nut 2
6
ATS8-544 Orange 1.2" OD ORing 2
7
ATS8-546 Black 1.5" OD ORing 2
8
ATS-N1156 Brass Shroud 2
9
ATS-4010
Single Pin Connector &
Cord
2
10 ATS-7GPM 7 GPM Flow Control 1
11 ATS-CO4700 Cover 1
12 ATS6-211 Open Ended Quartz 1
13 ATS1-805 UV Bulb 1
14 ATS1-421-DWS7 Ballast 1
15 ATS-7030 Rubber Grommet 2
16 ATS-079 1" Solenoid (OPTIONAL) 1
