ATS DWS-7 - Parts Breakdown DWS-15

Purificare ©2015
16

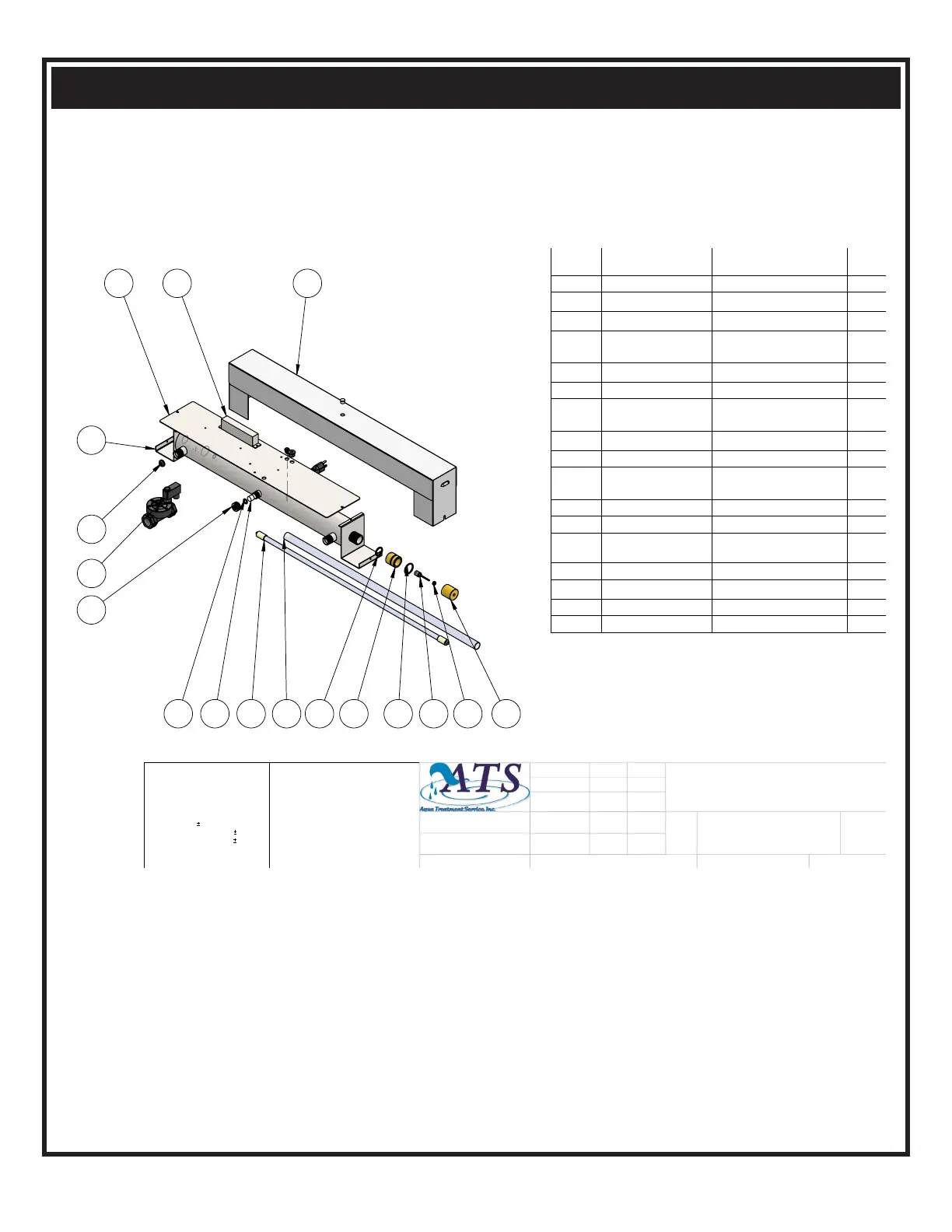

Parts Breakdown DWS -15
DWS © 2019 • www.aquat.com
172
4
12
716 9863
13
11
1410
1
15
5
NOTE:
REPLACEMENT KIT ATS-4025 AVAILABLE
INCLUDES;
ATS-N1156, ATS5-411, ATS-4010, ATS8-544,
ATS-7030, ATS8-546
ITEM
NO.
PART NUMBER DESCRIPTION QTY.
1 ATS-5200 Chamber 1
2
ATS-5210 Top Plate 1
3
ATS-5172 Sightport Lens 1
4
ATS-5173
Orange .7" OD
Viewport O Ring
1
5
ATS-5171 Sightport Nut 1
6
ATS5-411 Brass End Nut 2
7
ATS8-544
Orange 1.2" OD
ORing
2
8
ATS8-546 Black 1.5" OD ORing 2
9
ATS-N1156 Brass Shroud 2
10
ATS-4010
Single Pin
Connector & Cord
2
11
ATS-15GPM
15 GPM Flow Control
1
12
ATS-6200 Cover 1
13
ATS-079
1" Solenoid
(OPTIONAL)
1
14
ATS-7030 Rubber Grommet 2
15
ATS6-608 Open Ended Quartz 1
16
ATS8-246 UV Bulb 1
17
ATS1-421-DWS15 Ballast 1
DO NOT SCALE DRAWING
SHEET 1 OF 1 SCALE: WEIGHT:
REV DWG. NO. SIZE
TITLE
NAME DATE
MFG APPR.
ENG APPR.
CHECKED
FINISH
MATERIAL
5
4
3
2
1
BAG DRAWN
A
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
AQUA TREATMENT SERVICES. ANY
REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
AQUA TREATMENT SERVICES IS
PROHIBITED.
DIMENSIONS ARE IN INCHES
TOLERANCES:
FRACTIONAL
.25"
TWO PLACE DECIMAL
.010"
THREE PLACE DECIMAL
.002"
UNLESS OTHERWISE SPECIFIED:
3/27/2015
A
DWS-15 CUSTOMER MANUAL
