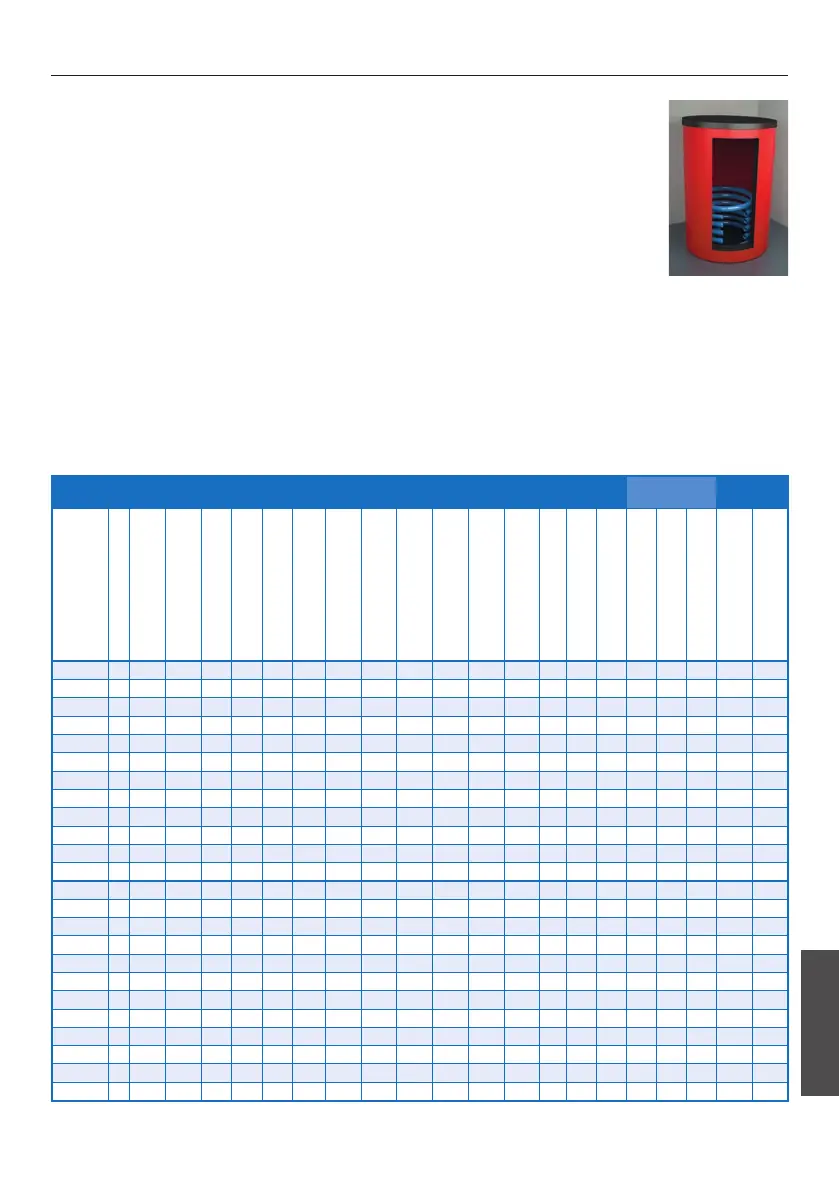

ATTACK AK Series - Page 145

7
ACCUMULATION TANKS
EN
DESCRIPTION
The accumulation tanks ATTACK AK, AS made from the quality steel serve for accu-
mulation and subsequent distribution of the heat energy from the biomass boiler
(
e.g. SLX, DPX, DP, PELLET 30 AUTOMATIC Plus, WOOD&PELLET). The ATTACK AS
model is accessorized with an extra exchanger to be connected to the solar system.
ATTACK AK: 9× socket G1 ½", 4× socket G½"
ATTACK AS: 9× socket G1 ½", 4× socket G½", 2× socket G1" – solar circuit
KEY FOR THE ACCUMULATION TANKS
1 – Flow connection – boiler . . . . . . . . . . . . . 1 ½"
2 – Freely disposable . . . . . . . . . . . . . . . . . . 1 ½"
3 – Freely disposable . . . . . . . . . . . . . . . . . . 1 ½"
4 – Return connection – heating circuit . . . . . . 1 ½"
5 – Flow connection – heating circuit (radiators) . 1 ½"
6 – Flow connection – heating circuit (oor) . . . 1 ½"
7 – Return connection – gas, oil and pellet boiler . . 1 ½"
8 – Return connection – wood boiler . . . . . . . 1 ½"
9 – Sensor of solar system or heating . . . . . . . . ½"
AS – Flow connection of solar system . . . . . . . . 1"
RS – Return connection of solar system . . . . . . . 1"
D1 – Diameter without insulation
D2 – Diameter with insulation
TECHNICAL PARAMETERS
Tank
Solar
exchanger
Tank
Type Energy eciency class Position 1–5 Position 2–6 Position 3–7 Position 4–8 Position RS Position AS L – max. length of the electric heating body ∅ D1 – Diameter without insulation ∅ D2 – Diameter with insula- tion of 100 mm Height Height with insulation of 100 mm R – Slope dimension without insulation Max. operating pressure (bar) Static loss (W) Max. operating temperature (°C) Area of exchanger (m²) Volume of exchanger (l) Max. operating pressure (bar) Volume (l) Weight (kg)
AK200K C 925 705 455 205 - - 550 500 700 1140 1190 1157 3 65 95 - - - 204 46
AK300K C 1110 790 460 210 - - 600 550 750 1350 1400 1368 3 78 95 - - - 289 60
AK400K C 1120 815 515 210 - - 700 650 850 1380 1430 1402 3 87 95 - - - 405 73
AK500K C 1405 1013 621 230 - - 700 650 850 1660 1710 1678 3 94 95 - - - 488 81
AK800K - 1545 1135 725 315 - - 840 790 990 1840 1890 1864 3 108 95 - - - 732 109
AK1000K - 1735 1255 775 295 - - 840 790 990 2030 2080 2052 3 127 95 - - - 915 118
AK1500K - 1755 1345 820 375 - - 1050 1000 1200 2095 2145 2142 3 162 95 - - - 1449 201
AK2000K - 1955 1409 862 315 - - 1150 1100 1300 2310 2360 2353 3 189 95 - - - 1980 235
AK2500K - 2005 1465 915 375 - - 1250 1200 1400 2387 2437 2438 3 - 95 - - - 2435 271
AK3000K - 2205 1600 985 375 - - 1300 1250 1450 2596 2646 2643 3 - 95 - - - 2915 363
AK4000K - 2385 1730 1065 405 - - 1450 1400 1600 2819 2869 2872 3 - 95 - - - 3819 475
AK5000K - 2285 1680 1065 455 - - 1650 1600 1800 2770 2820 2845 3 - 95 - - - 4940 578
AS200K C 925 705 455 205 205 545 550 500 700 1140 1190 1157 3 64 95 0,9 6 10 198 63
AS300K C 1110 790 460 210 210 610 600 550 750 1350 1400 1368 3 77 95 1,2 7,9 10 283 83
AS400K C 1120 815 515 210 210 610 700 650 850 1380 1430 1402 3 84 95 1,5 10 10 388 103
AS500K C 1405 1013 621 230 230 710 700 650 850 1660 1710 1678 3 92 95 1,8 11,9 10 474 118
AS800K - 1545 1135 725 315 315 725 840 790 990 1840 1890
1864 3 10
5 95 2,4 15,9 10 713 157
AS1000K - 1735 1255 775 295 295 860 840 790 990 2030 2080 2052 3 121 95 3 19,8 10 891 172
AS1500K - 1755 1345 820 375 375 895 1050 1000 1200 2095 2145 2142 3 161 95 3,6 23,7 10 1420 265
AS2000K - 1955 1409 862 315 315 843 1150 1100 1300 2310 2360 2353 3 188 95 4,2 23,7 10 1960 296
AS2500K - 2005 1465 915 375 375 1095 1250 1200 1400 2387 2437 2438 3 - 95 4,2 27,7 10 2410 345
AS3000K - 2205 1600 985 375 375 1095 1300 1250 1450 2596 2646 2643 3 - 95 4,2 27,7 10 2890 446
AS4000K - 2385 1730 1065 405 405 1125 1450 1400 1600 2819 2869 2872 3 - 95 5 33 10 3779 568
AS5000K - 2285 1680 1065 455 455 1175 1650 1600 1800 2770 2820 2845 3 - 95 6 39,6 10 4880 687
