33

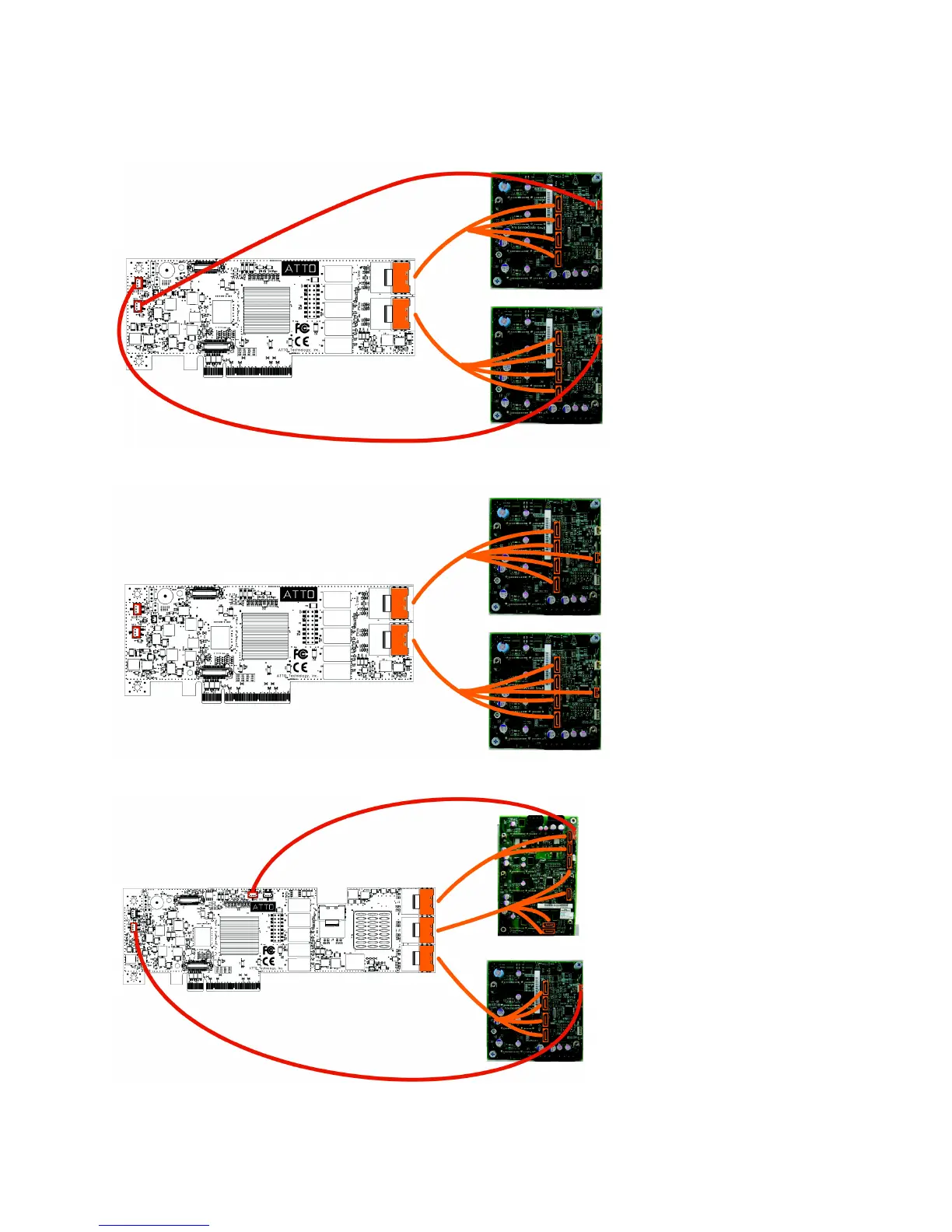

Example Configurations
Example 1 R608 with 2 Intel x4 backplanes. The backplanes are controlled by SES-I2C
Example 2 R608 with 2 Intel x4 backplanes. The backp
lanes are controlled by SGPIO
Example 3 R60F with an Intel x6 backplane and an Intel x4 backplane. The backplanes are controlled by SES-I2C
