ATTO Technology ExpressSAS R608 - Page 8

5

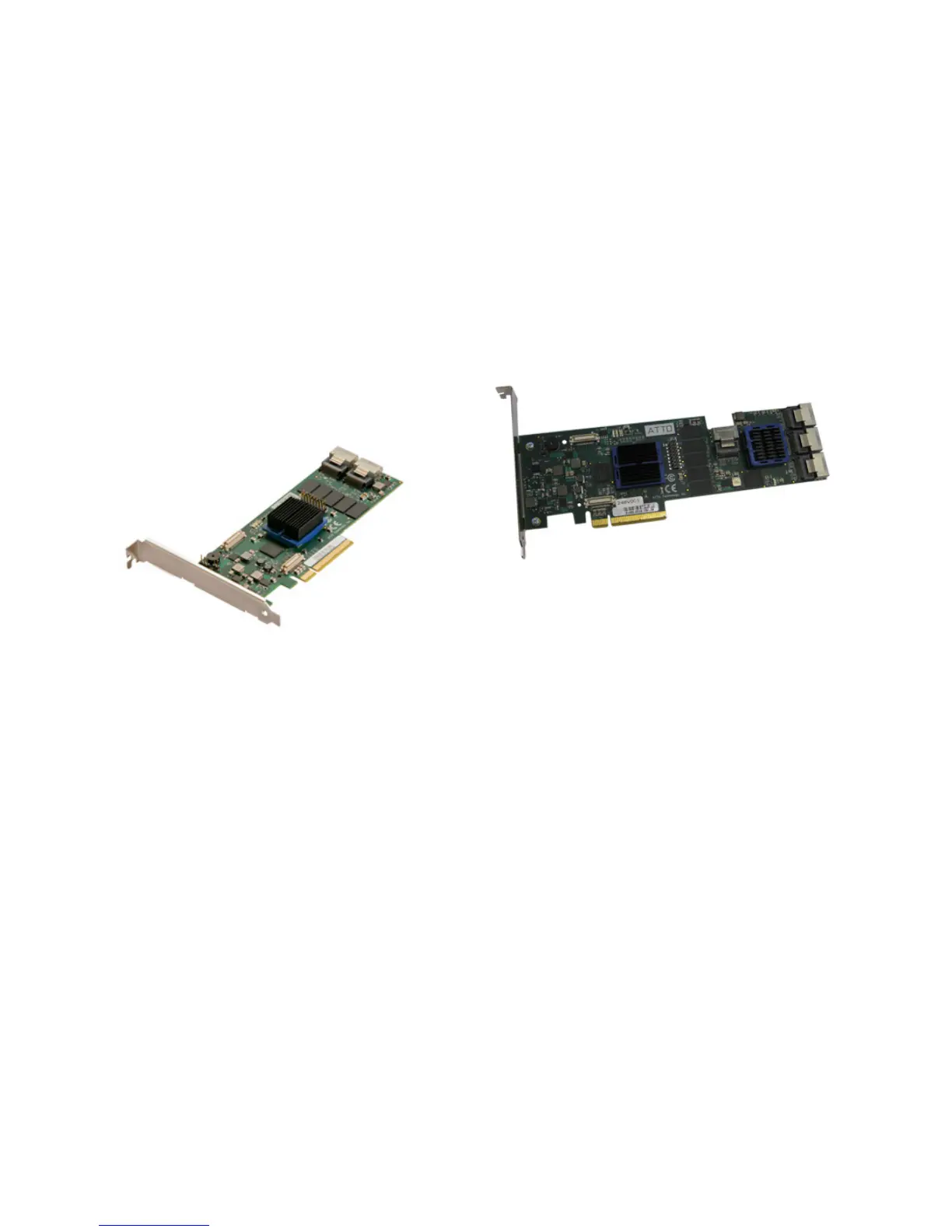

R608 technical specifications
• Eight internal ports
• Up to 6-Gb/sec per port performance
• Form factor conforms to PCI low-profile
specification
• Length: 6.600”
• Height: 2.713”
• Operating temperature: 0-40 °C (32 °F-104 °F)
• Operating humidity: 10 - 90% non-condensing
• Storage temperature: -40-70 °C (-40 °F-157 °F)
• Storage humidity: 5 - 95% non-condensing
• Power (typ): 12V @ 0.8A; 9.6W
• 12V @1.22A; 3.3V @ .06A, 15.05W
(NVCACHE charging), 12V @1.00A;
3.3V @ .06A, 12.34W (NVCACHE
charged)
• Airflow: 150 lf/m minimum
R60F technical specifications
• Sixteen internal ports
• 1/2 height form factor
• Up to 6-Gb/sec per port performance
• Length: 8.638”
• Height: 2.846”
• Operating temperature: 0-40 °C (32 °F-104 °F)
• Operating humidity: 10 - 90% non-condensing
• Storage temperature: -40-70 °C (-40 °F-157 °F)
• Storage humidity: 5 - 95% non-condensing
• Power (typ): 12V @ 2A, 25W
• Airflow: 250 lf/m minimum
