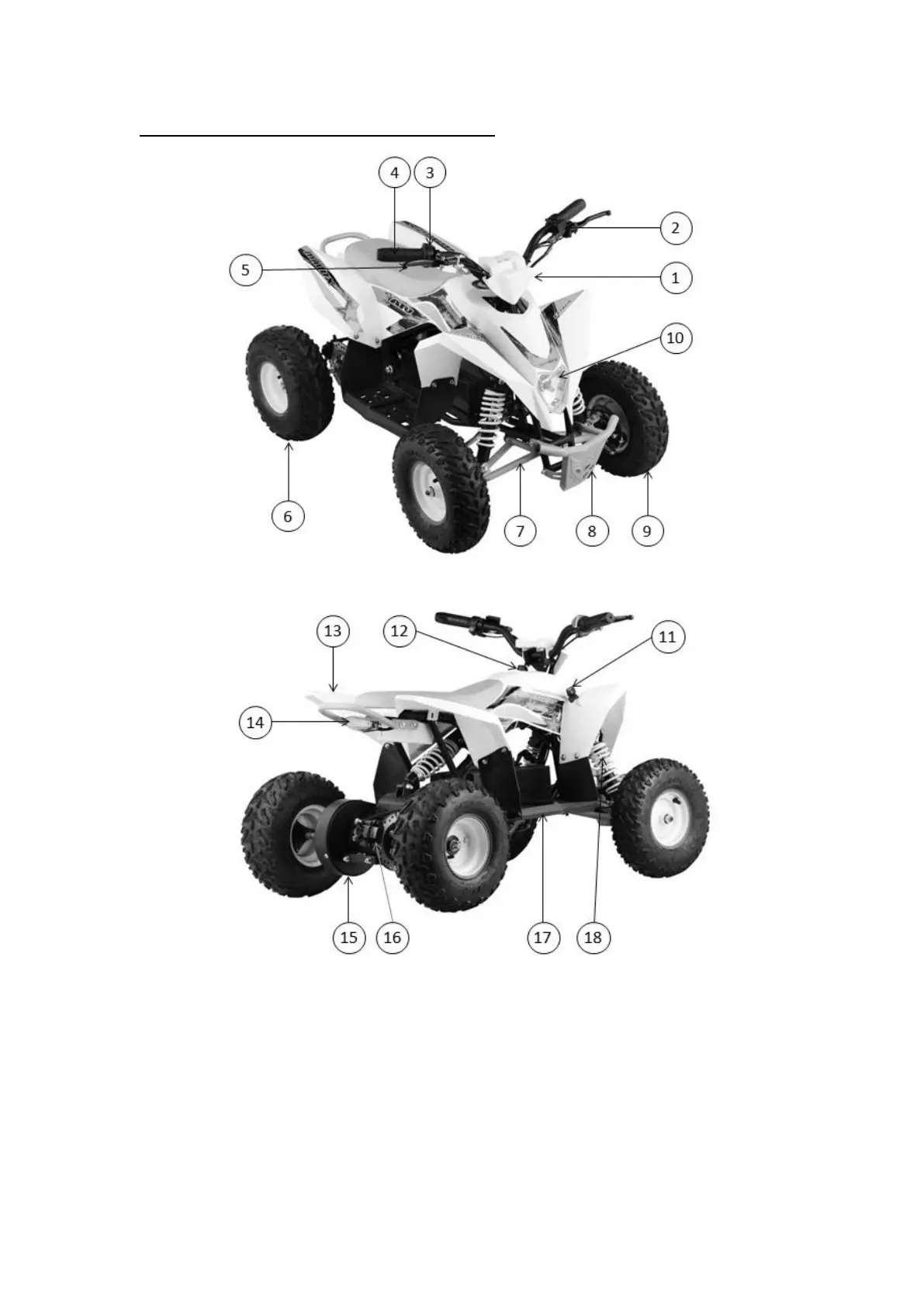

PRODUCT MAIN PART DIAGRAM
1. handlebar cover
2. rear brake lever
3. electricity volume
4. throttle
5. front brake lever
6. rear wheel & tire
7. front swing arm
8. bumper
9. front wheel & tire
10.front lamp
11. ignition switch
