- 9 -

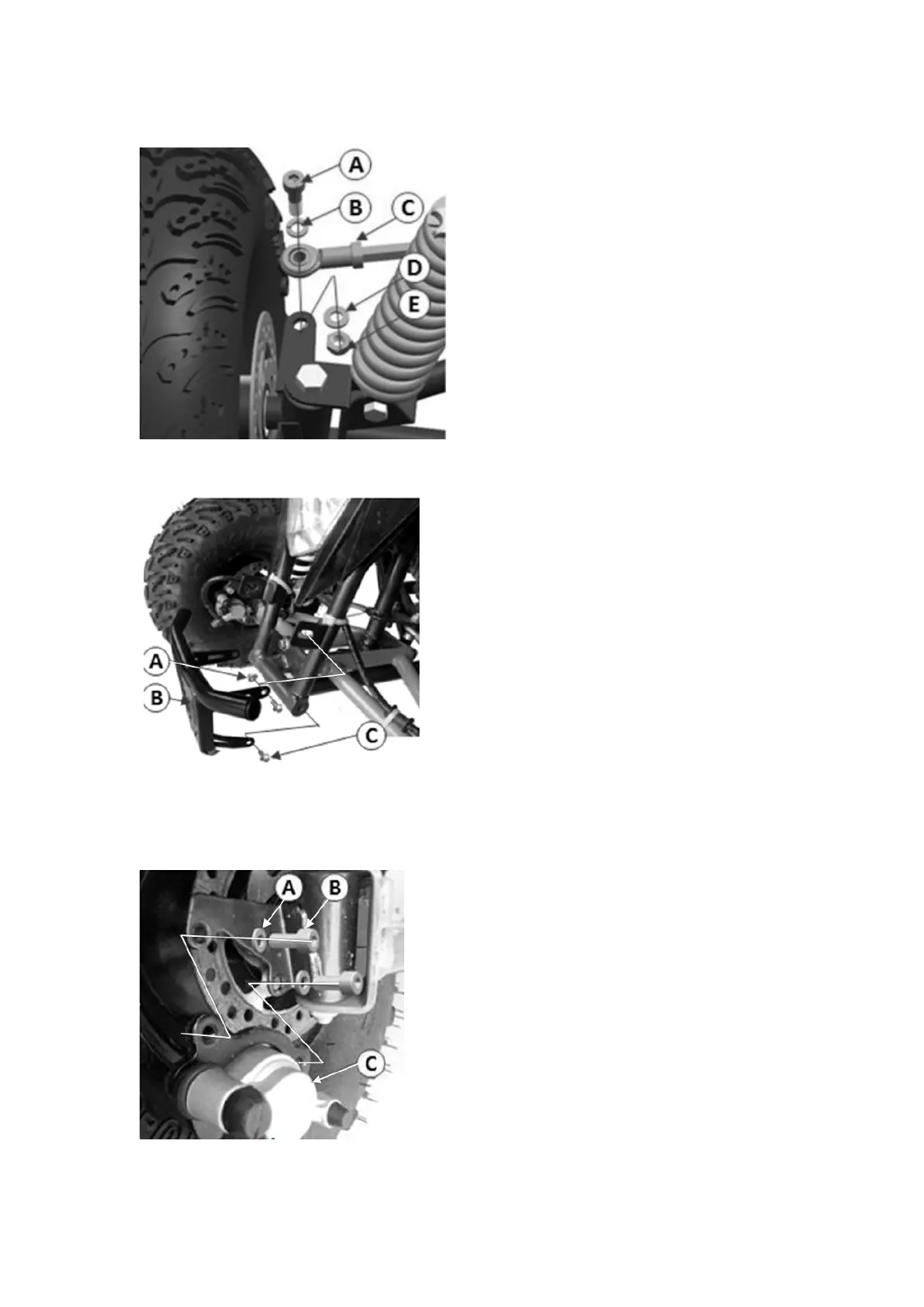

ASSEBMLY TIE ROD
A :Bolt M8*30 2pcs
B: Spring waher Φ8 2pcs
C: Tie rod left and right 2pcs
D: Waher Φ8 2pcs
E: Nut N8 2pcs
1. Align the hole of tie Spring waher (B), tie rod end
ball (C), Waher (D) in sequence.
2. Mount the bolt(A) and tighten the nut (E)
securely with 13mm - 15mm open end wrench and
6mm allen wrench.
ASSEMLY BUMPER
A: Nut M8 2pcs
B: Bumper
C: Bolt M8×16 4pcs
1. Align the bottom mounting hole of bumper (B) to
the frame bottom joint and mount the bolt (C), NOT
tighten the bolt to keep the bumper free move.
2. Turn upwards the bumper to align the upper
mounting hole of bumper to the frame upper joint,
then mount the bolt (C) and twist the nut (A).
3. Tighten the bolt (C) and nut(A) securely with 10mm
and 13mm open end wrench
ASSEMBLY FRONT BRAKE CALIPER
A: Spring washer Φ6 4pcs
B: Bolt M6*12 4pcs
C: front brake caliper
1. Place the brake disc into the front brake caliper
(C) with the hole in alignment.
2. Mount the spring washer (A) and then tighten the
bolt (B) securely with 5mm allen wrench.
To Next Page
