MCC3721H User’s Quick Setup V1.02
6

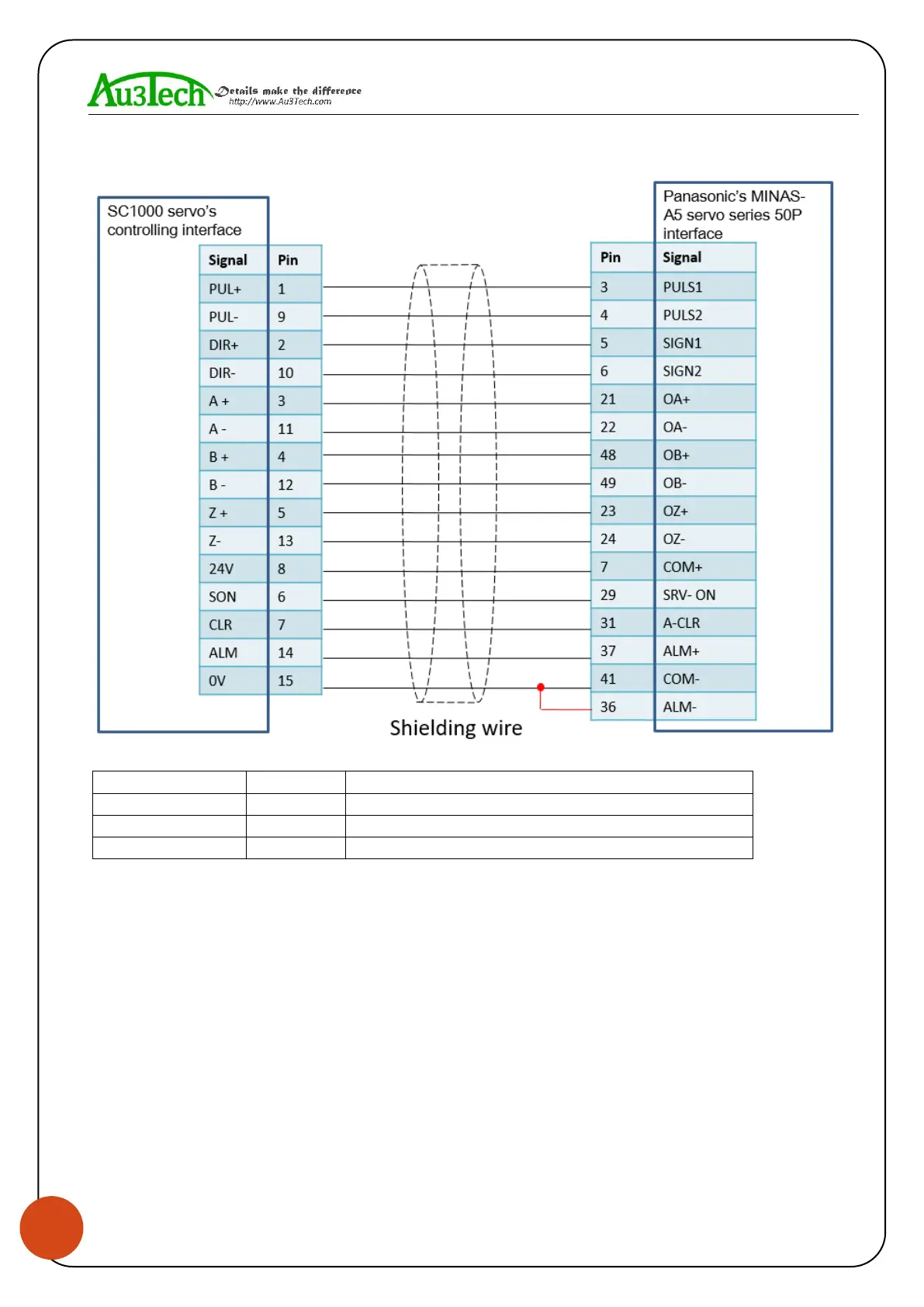

Panasonic’s MINAS-A5 servo series low-speed pulse wiring diagram shows as below.
The basic parameter settings of Panasonic’s A5 servo series shows as below.
Parameter
Set value
Meaning
PR001
0
Set servo control mode as position mode
PR007
3
Set as “Pulse + Direction” mode
PR005
0
Set pulse frequency in maximum
