- 10 -

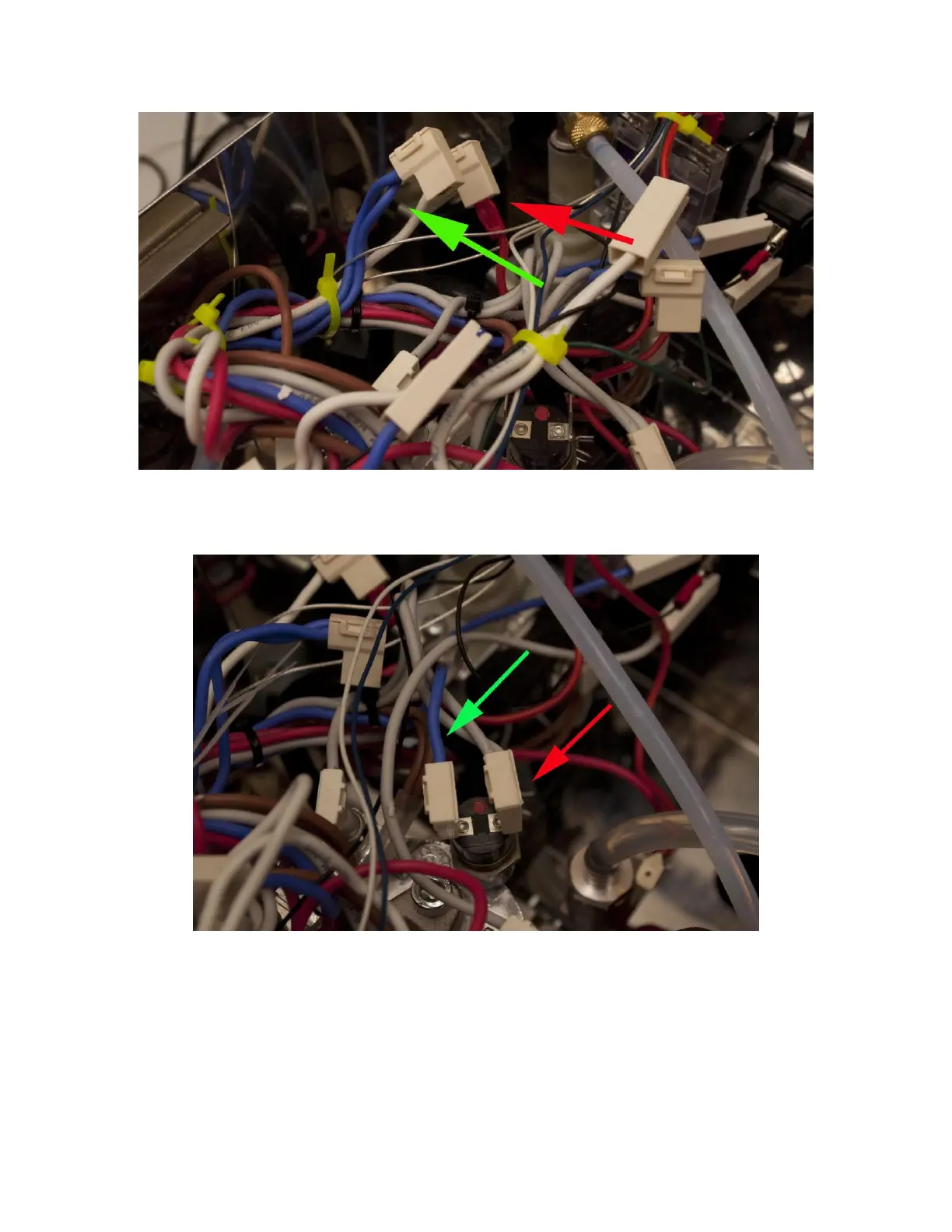

Fig 17b. Cables from brew thermostat. Single grey wire should be connected to one of the
SSR outputs. The connector with double blue wires is not connected to anything.
Fig 17c, Steam thermostat. The connector with double cable (red arrow) needs to be
connected to the second SSR output cable.
