- 3 -

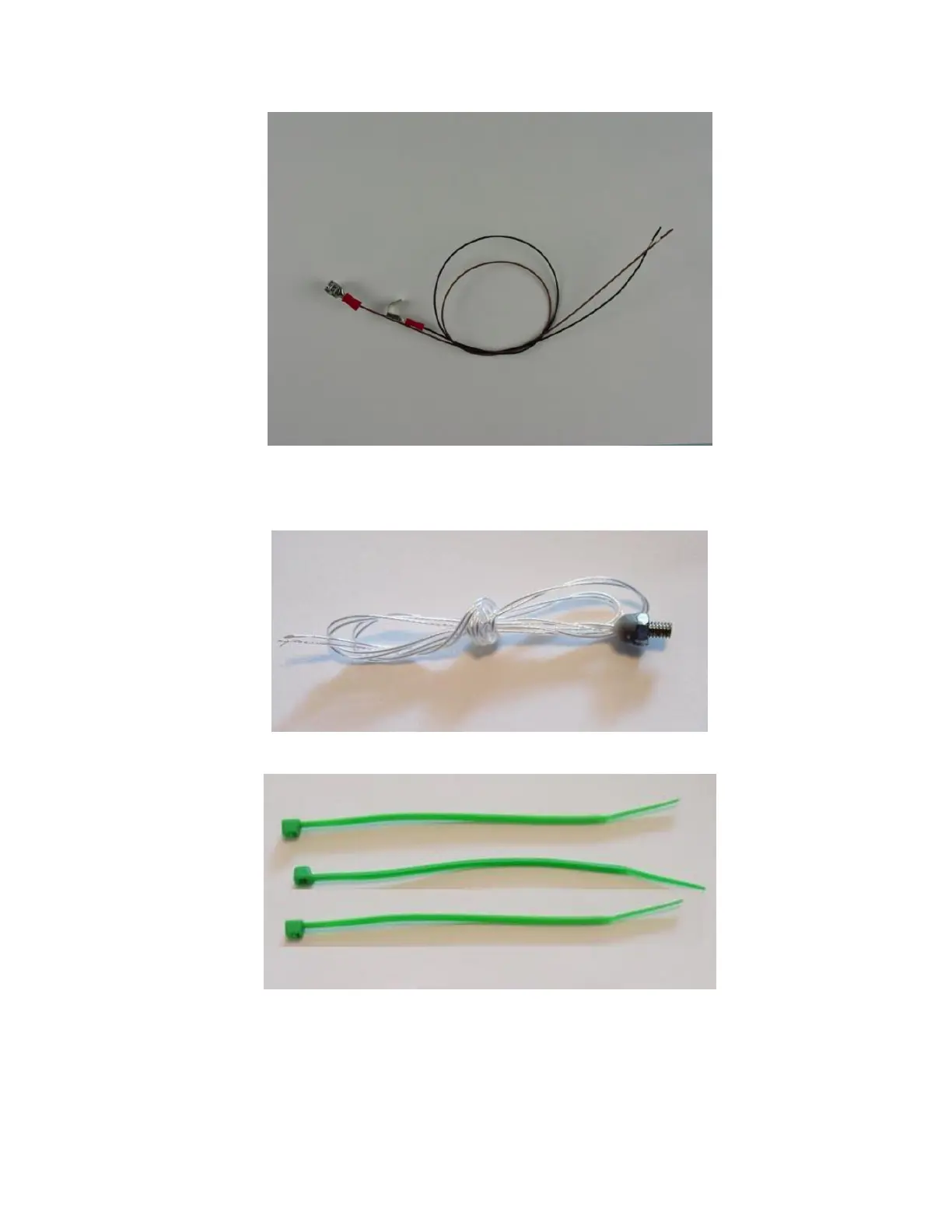

Fig 5. Two cables for tapping power to controller. One end is terminated with piggyback
connector. The black cable is for tapping the front switch. The brown cable is for tapping
the back connector.
Fig 6. Temperature sensor, Pt100 RTD, with screw tip.
