- 4 -

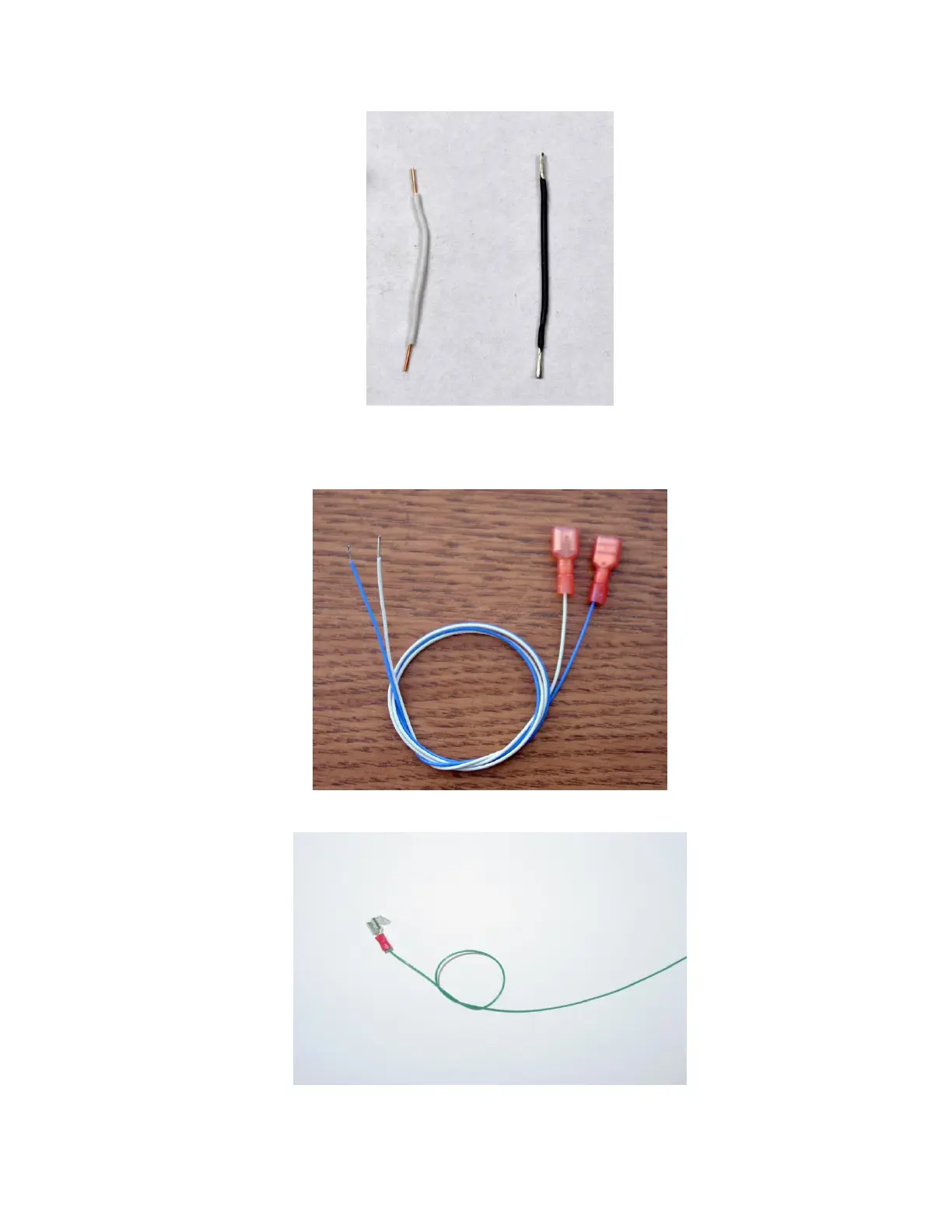

Fig 7. Cable ties and jumper cables.
The white jumper cable is for the RTD, and the black jumper cable is for brew pump
control.
Fig 8. Steam control cables.
Fig 9. Green piggyback connector for brew pump control.
