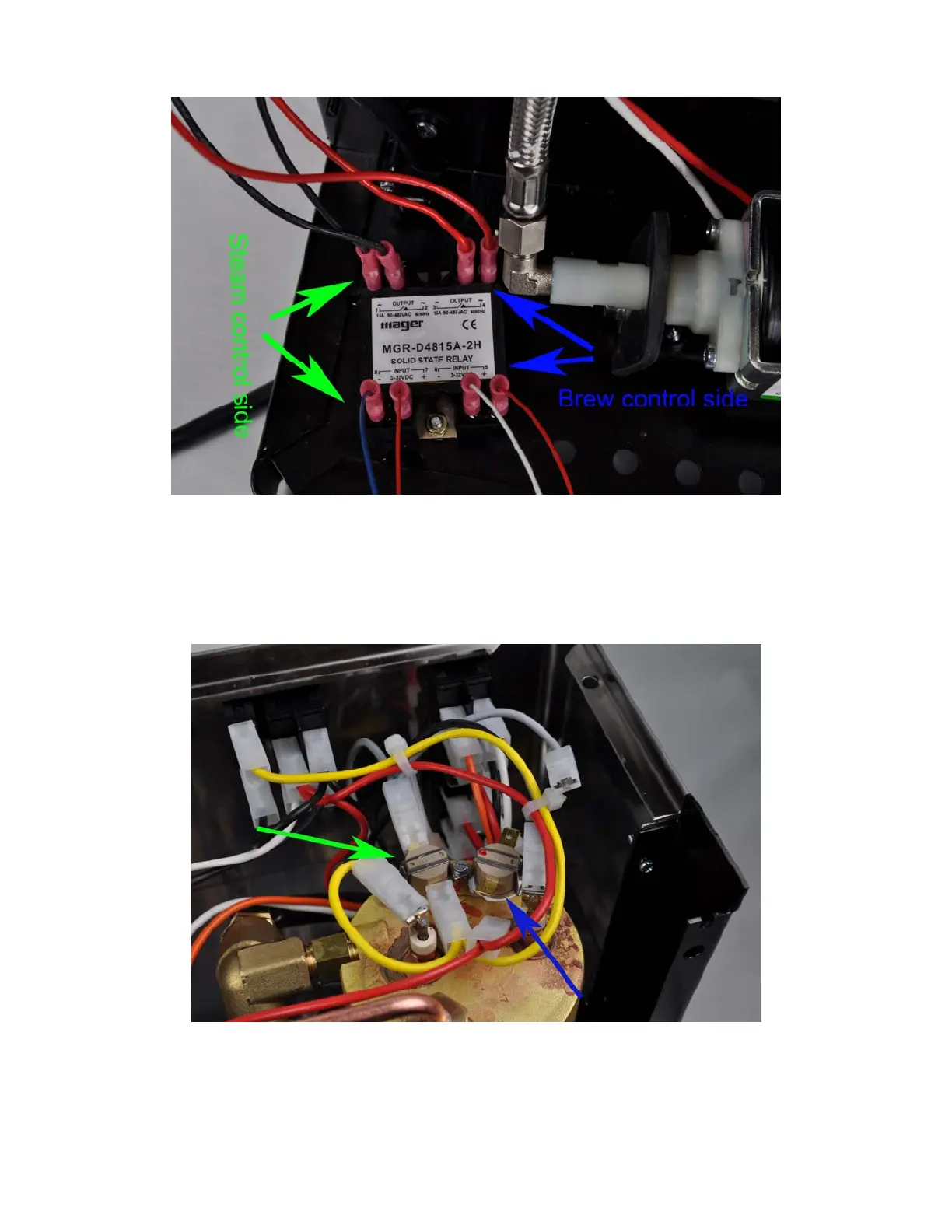

Figure 17. Connection of the cables to SSR
2) There are two thermostats on top of the boiler as shown in Figure 18. The blue arrow points
to the brew control thermostat (it has a red dot on the top). The two cables on it have been
removed. One is the gray cable on top and other is the red cable below. These cables are
going to be connected to the red cables from the SSR output. The green arrow points to the
steam control thermostat. The cables on it need to be removed and connected to the black
cables from the SSR output.
Figure 18. Brew control thermostat and steam control thermostat
3) As shown in Figure 19, the blue arrows show the red cables from SSR output are connected
to the cables originally were on the brew control thermostat. The green arrows show the
10
