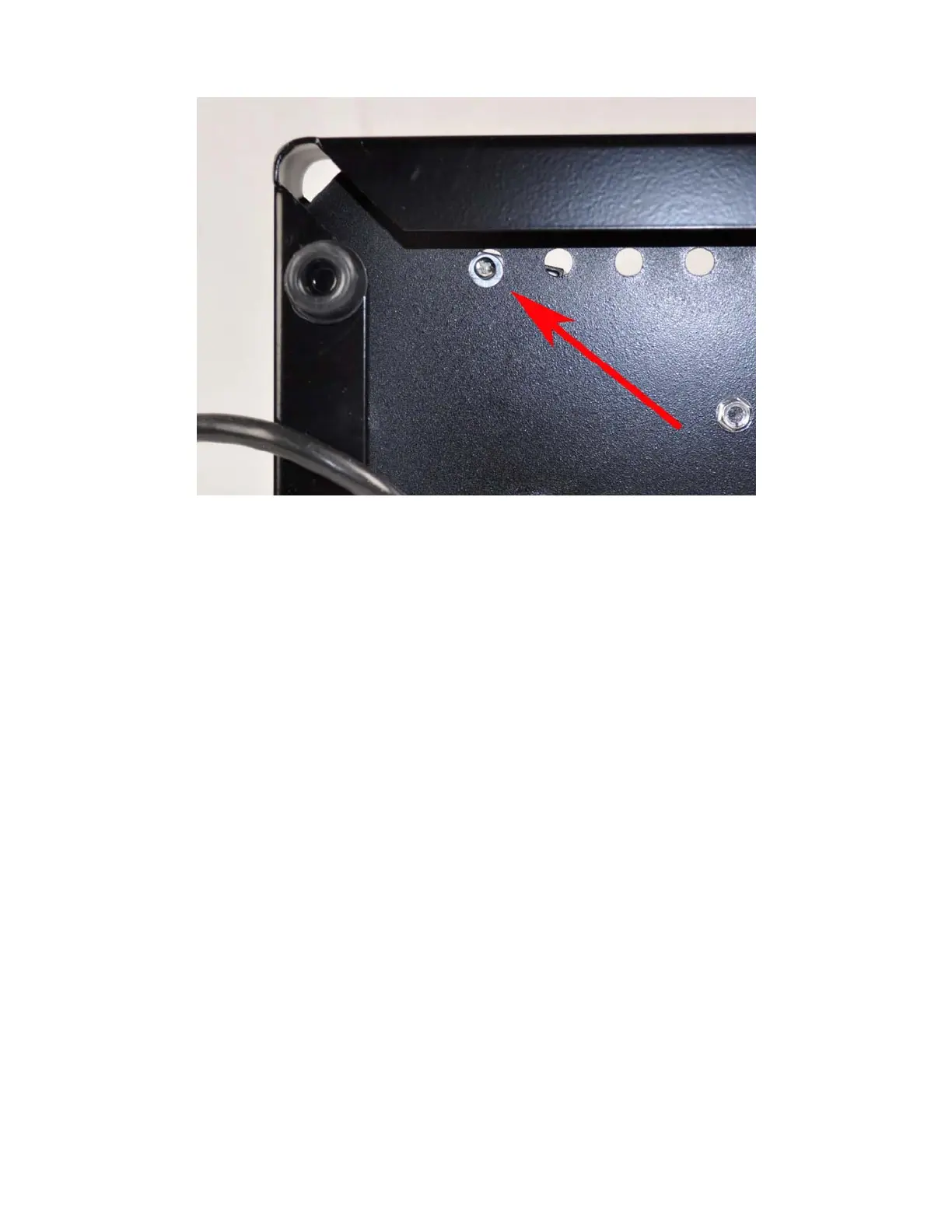

Figure 16b. Bottom view of the SSR mounting screw.
C. Connecting SSR Cables and Grounding Wire.
1) Connecting the cables to SSR as shown in Figure 17. The left side is for steam temperature
control. The two black cables are connected to the output. The blue cable is connected to the
negative of the input. Red cable is connected to the positive of the input. The right side is for
the brew temperature control. The two red thick cables are connected to the output. The
white cable is connected to the negative of the input. Red cable is connected to the positive
of the input.
