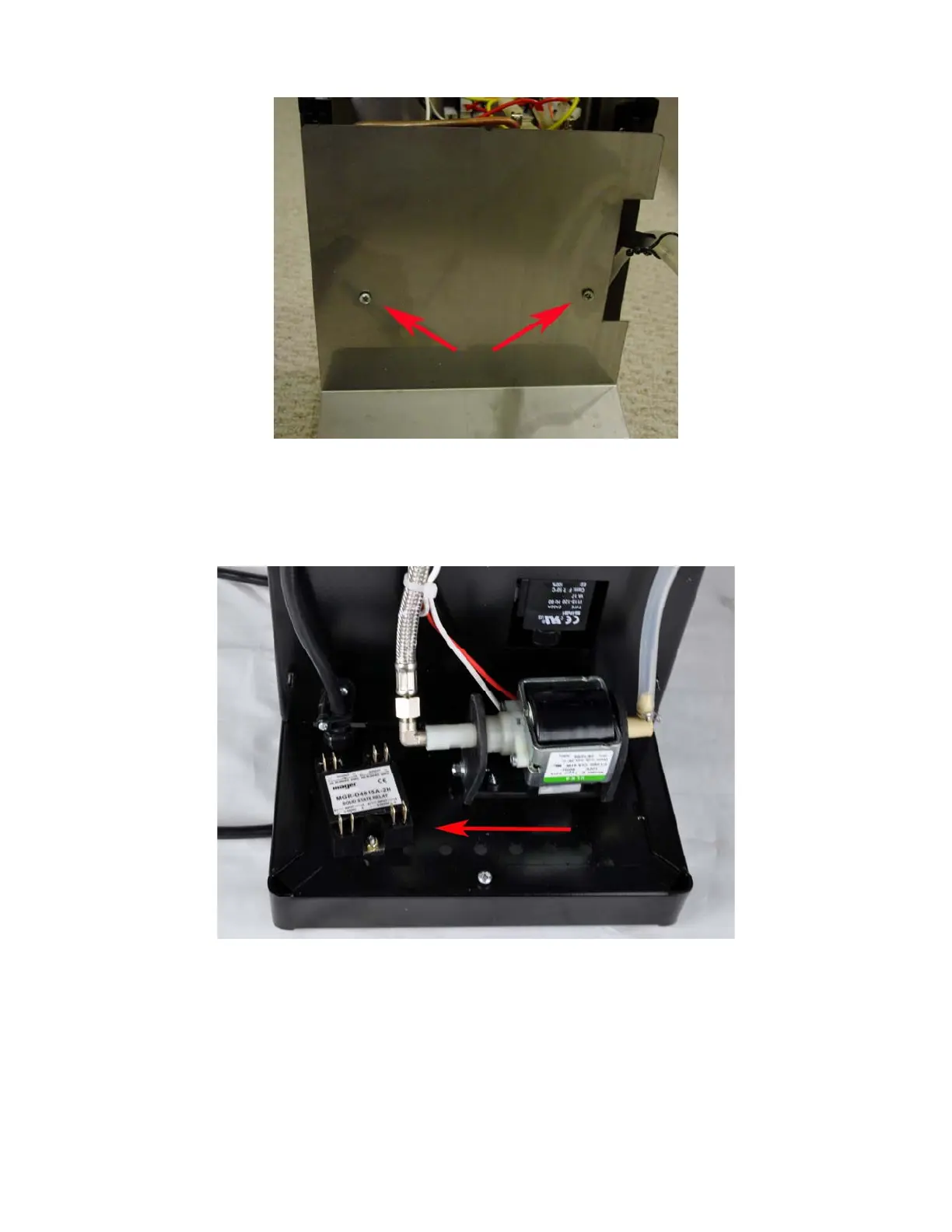

Figure 15. Screws that hold the protecting panel for the pump.
3) Mounting the SSR on the first hole from left. Apply small amount of thermal conductive
grease to the bottom of the SSR. Place it on the metal. The screw and washer should be
installed from the bottom of the base as shown in Figure 16a and 16b.
Figure 16a. SSR mounted on the base.
