shown on Figure 31. It is for reducing the heat transfer to the controller. The front panel of
the controller box should be flush with the machine front panel for neatness. For the V3
machines, the front panel might need to come out by as far as 1/8”, depending on the
rotation position of the hex nut that holds the steam wand. You have only one chance to put
it in the right position. If you remove it and try to put back again, the bonding will not be as
good.

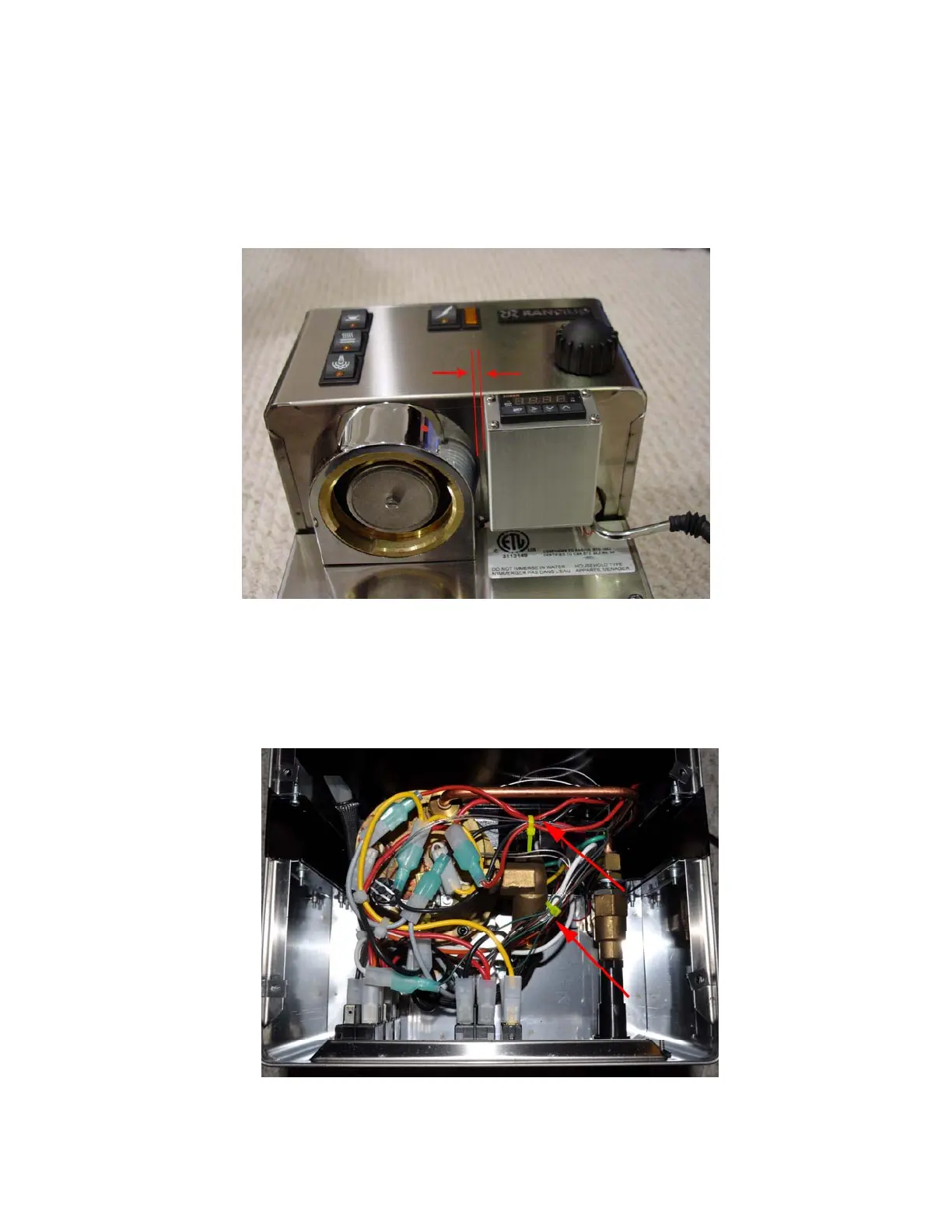

Figure 31. Control box position.
9) Tie up the wire in the boiler compartment (see Figure 32). Make sure there are no cables
touching the boiler surface. This is especially important for the cables installed by the
factory. The cables installed by the factory have PVC insulation that will melt when
touching the hot boiler surface. It can result in electric shock.
Figure 32. Tie up the cables.
22
