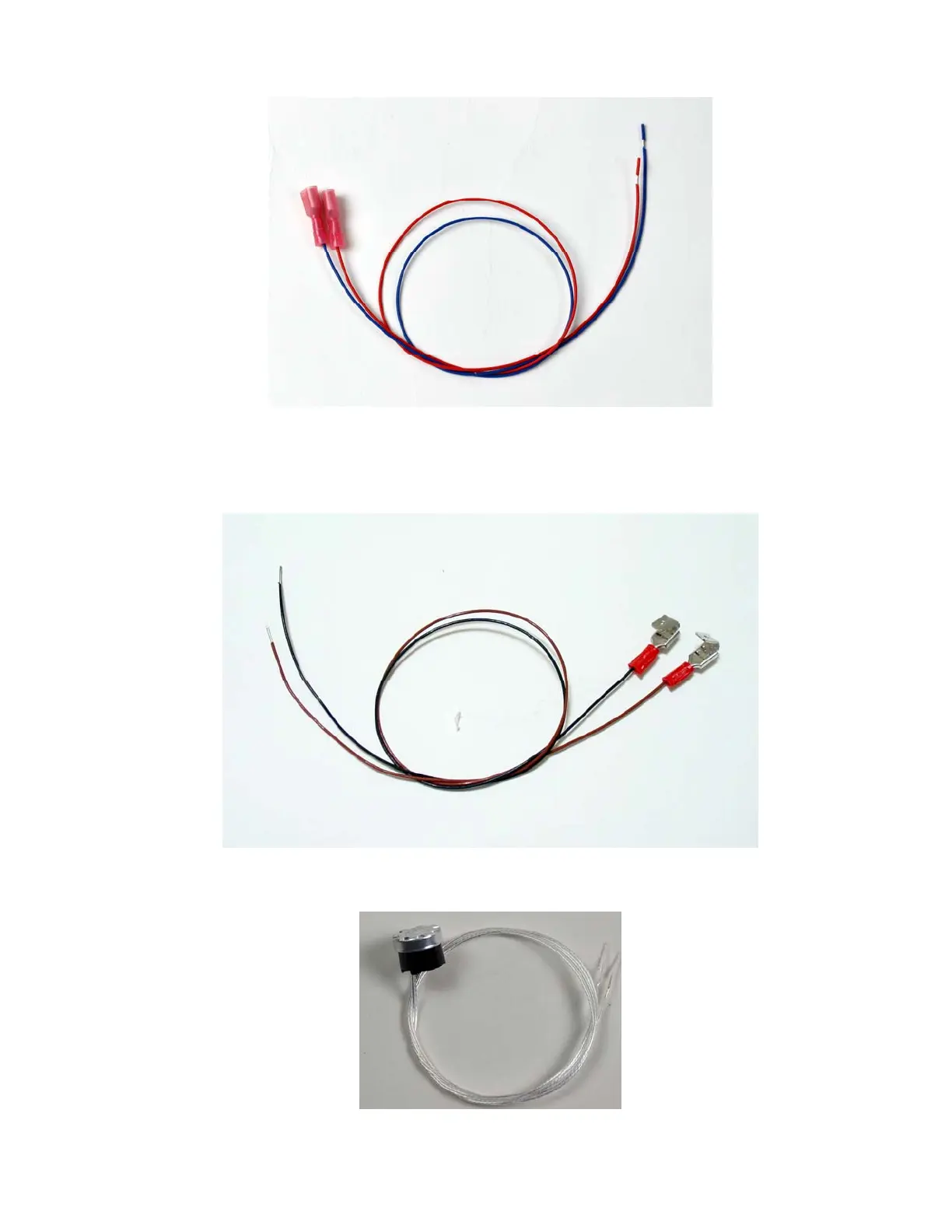

Figure 6. Cables for connecting controller steam control output to SSR steam control
input. Red cable is for positive. Blue cable is for negative. They are terminated with
female disconnect terminal on one end.
Figure 7. Cables for tapping power to controller. One black and one brown color,
terminated with piggyback connector on one end.
Figure 8. The RTD temperature sensor..
