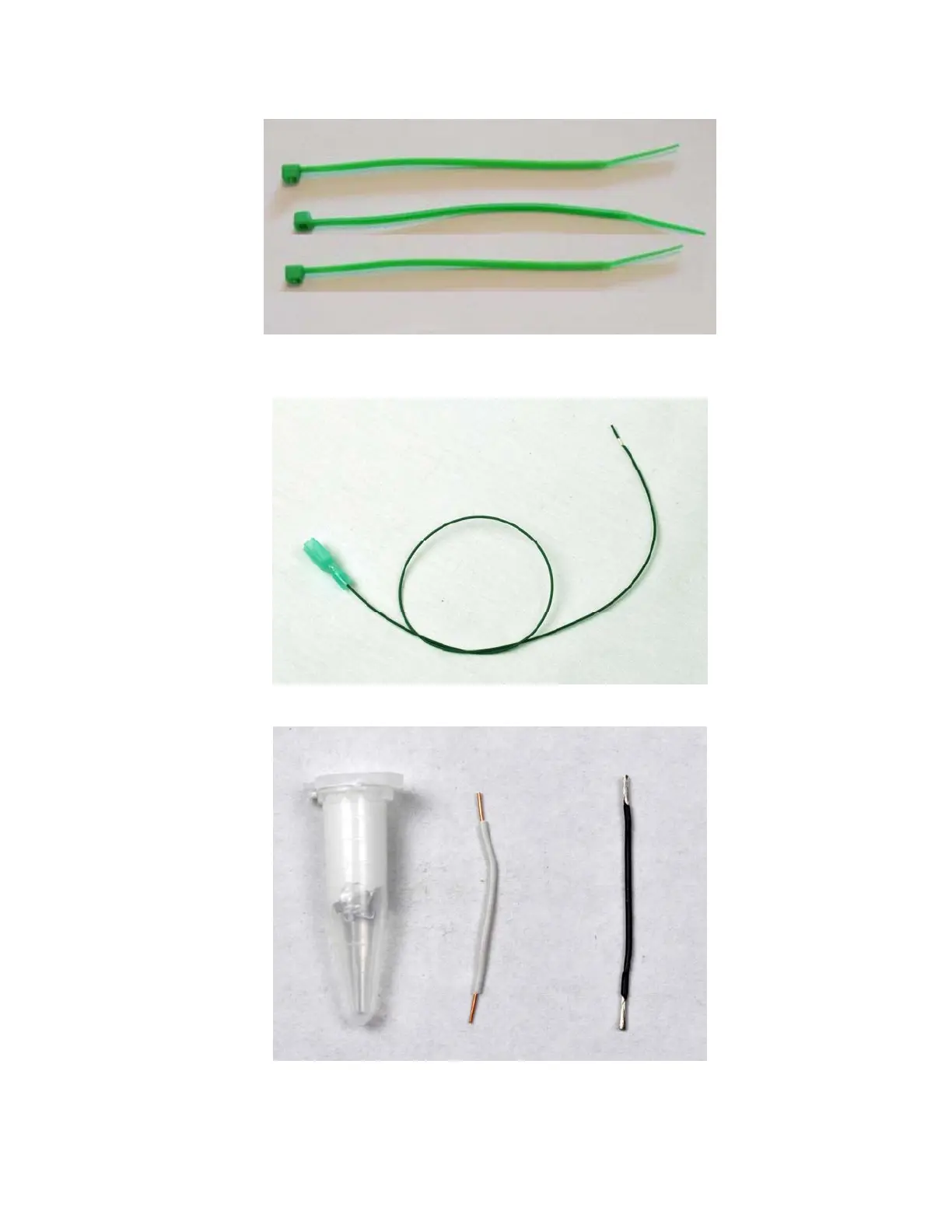

Figure 9. Cable ties
Figure 10. Brew pump control cable. Green
Figure 11. Left, silicone heat transfer compound (white paste in the vial) for SSR and
sensor, Middle, RTD jumper cable, white. Right, jumper cable for brew pump control,
black.
5

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Auber Instruments KIT-RSPb and is the answer not in the manual?

Auber Instruments KIT-RSPb Specifications

General IconGeneral
OutputRelay
Maximum Current10A
Display TypeLED
InputThermocouple
Power Supply110-240V AC
Dimensions48mm x 48mm x 110mm (1.89" x 1.89" x 4.33")
Controller TypePID Controller
