INSTALLATION MANUAL
CIRA SERIES QUICK-FIT™ CEILING SPEAKERS WITH TWIST-FIX™ GRILL

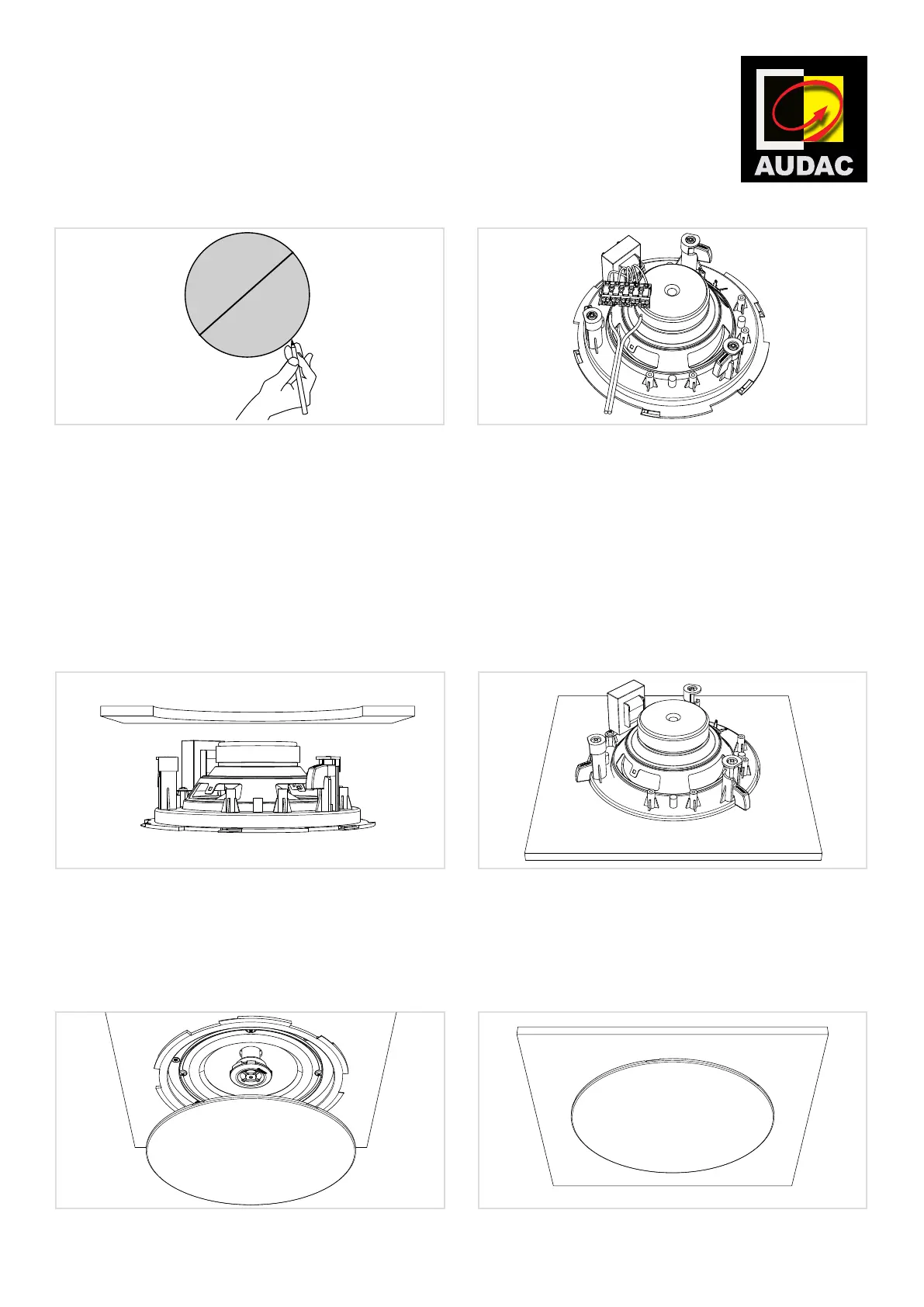

STEP 1 STEP 2
Cut a hole on the mounting location in the ceiling.
Make sure the diameter is matching the cut-out
measurement for the installing loudspeaker.
Double check if there are no cables or other
obstructions behind the mounting surface before
making the cut-out.
Connect the wires coming from the amplier to the
FastCon™ terminal block connector on the loudspeaker.
The correct power tapping is chosen by connecting the
appropriate terminals of the connector. A description
of the power tap selection is shown on the magnet
sticker on the rear side of the loudspeaker.
When using 100V speakers in low impedance mode
(8Ω), disconnect the ground wires by interrupting the
cable lugs.
Ø Diameter
STEP 3 STEP 4
Make sure the mounting clamps are fully bended
inwards, allowing the speaker t through the cut-out.
Insert the speaker to the opening.
Fix the speaker in the provided opening by tightening
the screws of the mounting clamps using a screw
driver. A quarter turn will make the mounting clamps
ip-out, locking the speaker in place. Tighten the
screws for proper xation of the speaker.
STEP 5 STEP 6
Attach the grill to the speaker by inserting the lips
into the provided openings on the speaker bae and
rotating it over a partial turn (15°).
The speaker is now correctly installed and ready for
use.
