Chapter 1

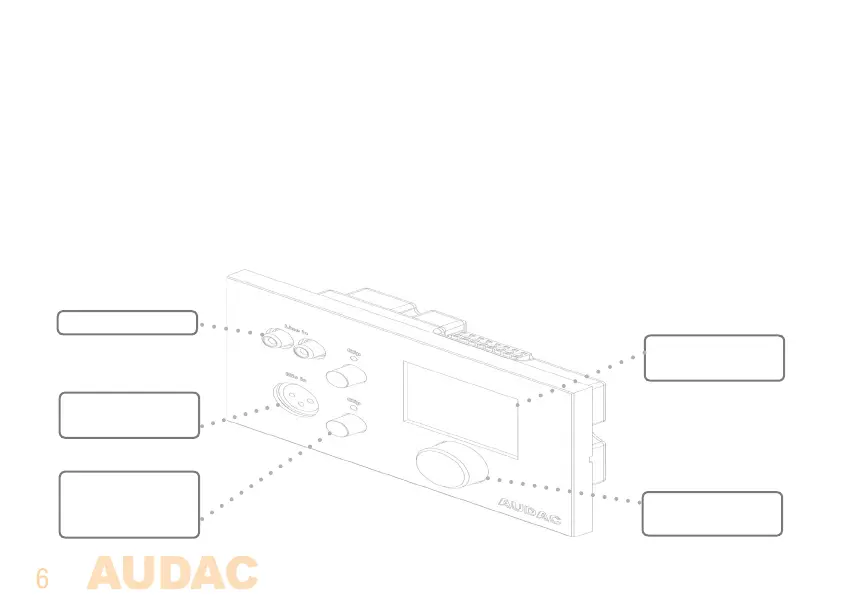

Overview front panel
The front panel of the DW5066 wall panel contains a 2.5” Graphic color LCD display with an
unbalanced line input connected by RCA connectors and a balanced microphone input connected
by an XLR connector. Each input is accomodated with a push-lock gain control potentiometer and
a Clip indicator LED. A big rotatable function selection push dial is provided below the LCD display.
2.5” Graphic color
LCD display
Rotatable function
selection dial
Unbalanced line input
Balanced microphone
input
Push-lock gain
control potentiometer
with clipping LED
