523
UTP CAT5 Cabling
WP523

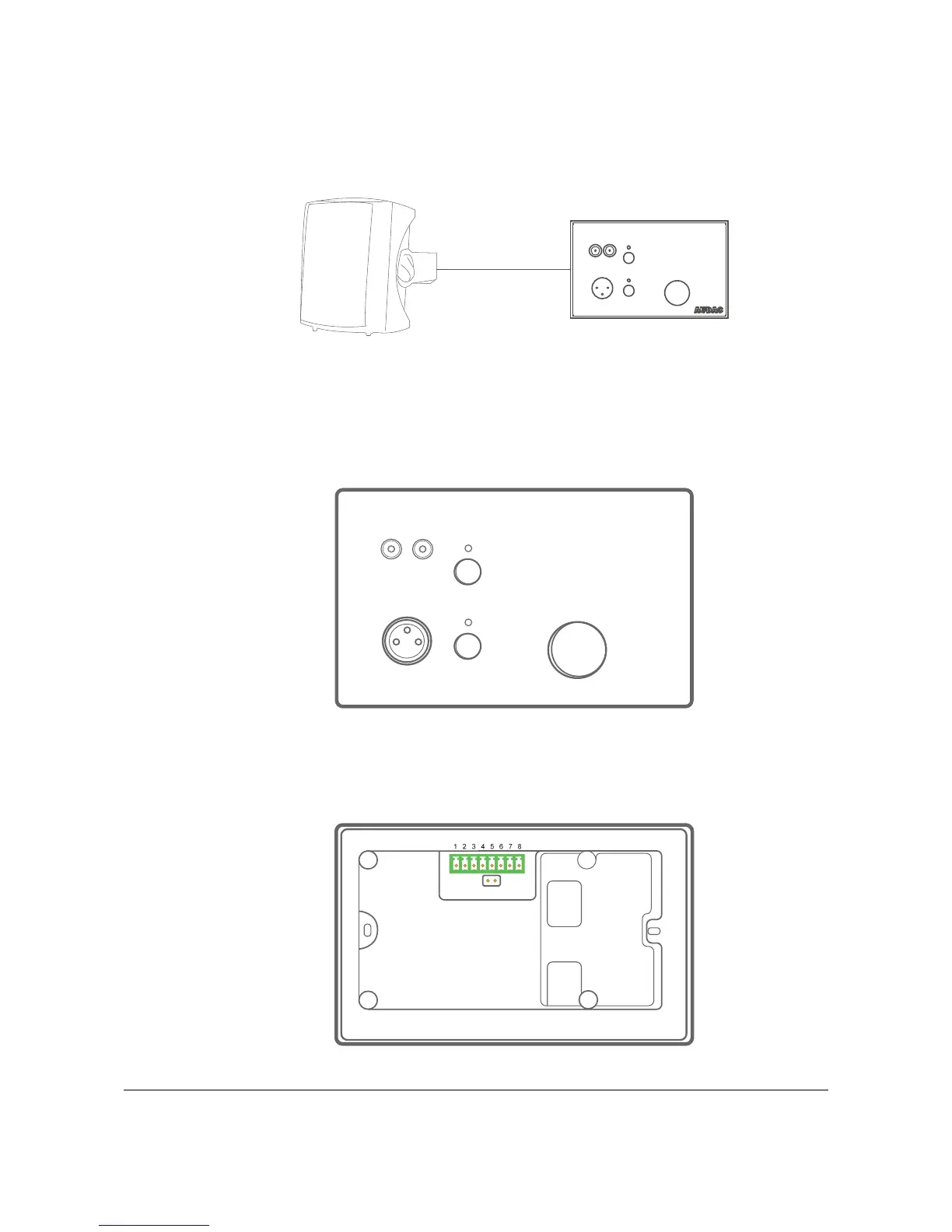

In the most common applications the LX523 active speaker system will be used in combination
with the WP523 wall panel. This wall panel contains an unbalanced line input (RCA) and balanced
microphone input (with phantom power). Both input channels have local mixing which can be
controlled through the push-lock potentiometers, and the master volume can be controlled by
means of the big dial.
AUDAC
LINE IN
MIC IN
The WP523 wall panel should be connected to the LX523 speaker system by means of the 8-pin
Euro-Terminal block connector on the rear side of the wall panel. The pins starting from Pin 1 on
the left side, to Pin 8 on the right side should be connected with the corresponding conductors of
the twisted pair cable as described on the previous page.
