Fuses and bulbs
Fuse assignment- cockpit Fuse assignment - luggage compartment

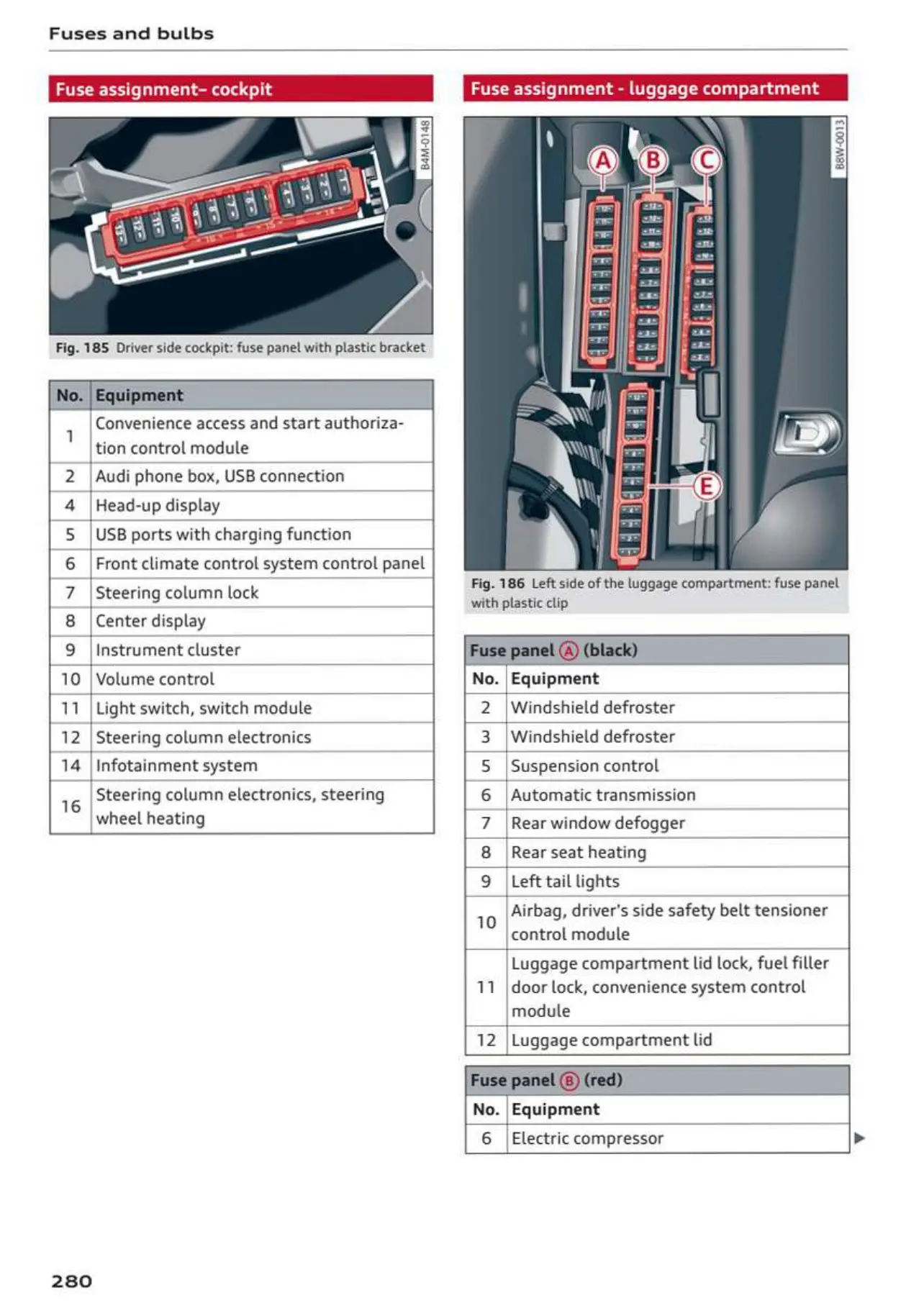

Fig. 185 Driver side cockpit: fuse panel with plastic bracket
‘No. | Equipment
1, | Convenience access and start authoriza-
tion control module
2. [Audi phone box, USB connection
| 4 |Head-up display
5 [USB ports with charging function
6 | Front climate control system control panel
7 Steering column lock | eee of the luggage compartment: fuse panel.
8 | Center display
9. | Instrument cluster Fuse panel (@) (black)
10 |Volume control No. | Equipment
| 11 |Light switch, switch module 2. |Windshield defroster |
12 | Steering column electronics 3. [Windshield defroster
14 | Infotainment system 5 | Suspension control
16 | Steering column electronics, steering | 6 |Automatic transmission |
wheel heating 7 [Rear window defogger
8 | Rear seat heating
9. [Left tail lights |
10 |Airbag, driver’ side safety belt tensioner
control module
Luggage compartment lid lock, fuel filler
11 | door lock, convenience system control
module
12 |Luggage compartment lid
Fuse panel @ (red)
No. | Equipment
6 [Electric compressor >
