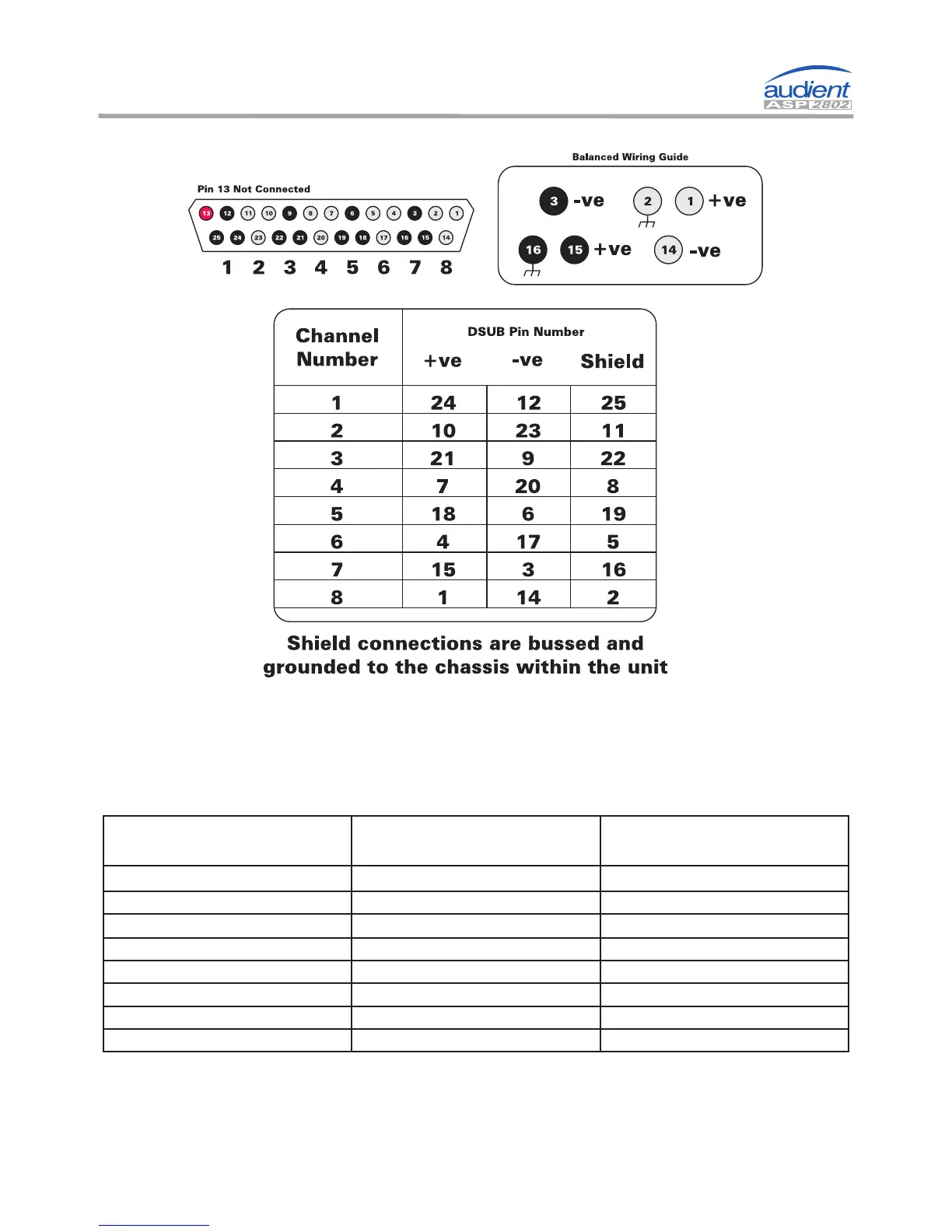

DB25 Wiring Specification
The following table provides channel counts for each DB25
connector:
Summing Input DAW Inputs DIRECT Outputs
Input 1L (24, 12, 25) DAW Input 1 (24, 12, 25) DIR Out 1 (24, 12, 25)
Input 2R (10, 23, 11) DAW Input 2 (10, 23, 11) DIR Out 2 (10, 23, 11)
Input 3L (21, 9, 22) DAW Input 3 (21, 9, 22) DIR Out 3 (21, 9, 22)
Input 4R (7, 20, 8) DAW Input 4 (7, 20, 8) DIR Out 4 (7, 20, 8)
Input 5L (18, 6, 19) DAW Input 5 (18, 6, 19) DIR Out 5 (18, 6, 19)
Input 6R (4, 17, 5) DAW Input 6 (4, 17, 5) DIR Out 6 (4, 17, 5)
Input 7L (15, 3, 16) DAW Input 7 (15, 3, 16) DIR Out 7 (15, 3, 16)
Input 8R (1, 14, 2) DAW Input 8 (1, 14, 2) DIR Out 8 (1, 14, 2)
