Installation

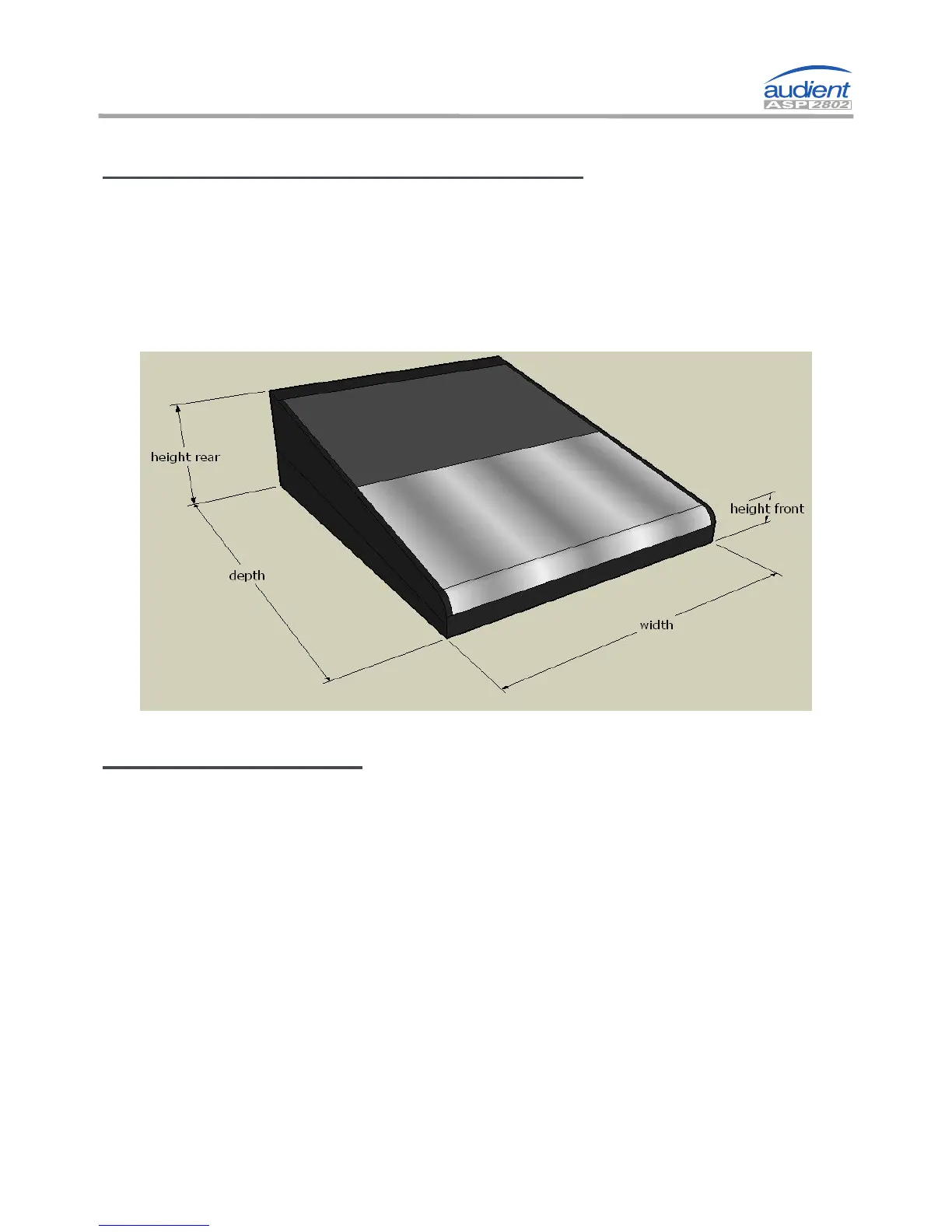

ASP2802 Dimensions (including rubber feet)
Height Front - 60 mm Height Rear - 170 mm
Width - 450 mm
Depth - 550 mm Height (depth) when racked
13RU plus connector
space - 15RU
ASP2802 Specifications
Some general performance figures from the console - taken with
Prism D-Scope test equipment.
Frequency Response +/- 0.3 dB 20 Hz to 20 kHz
THD + Noise <0.015% @ 1 kHz
Noise Mic EIN (20 Hz to 20 kHz, 150 ohm
source < -127.5 dBu
Bus Noise All inputs routed < -80 dBu
Mic CMRR 70 dB (min. gain)
