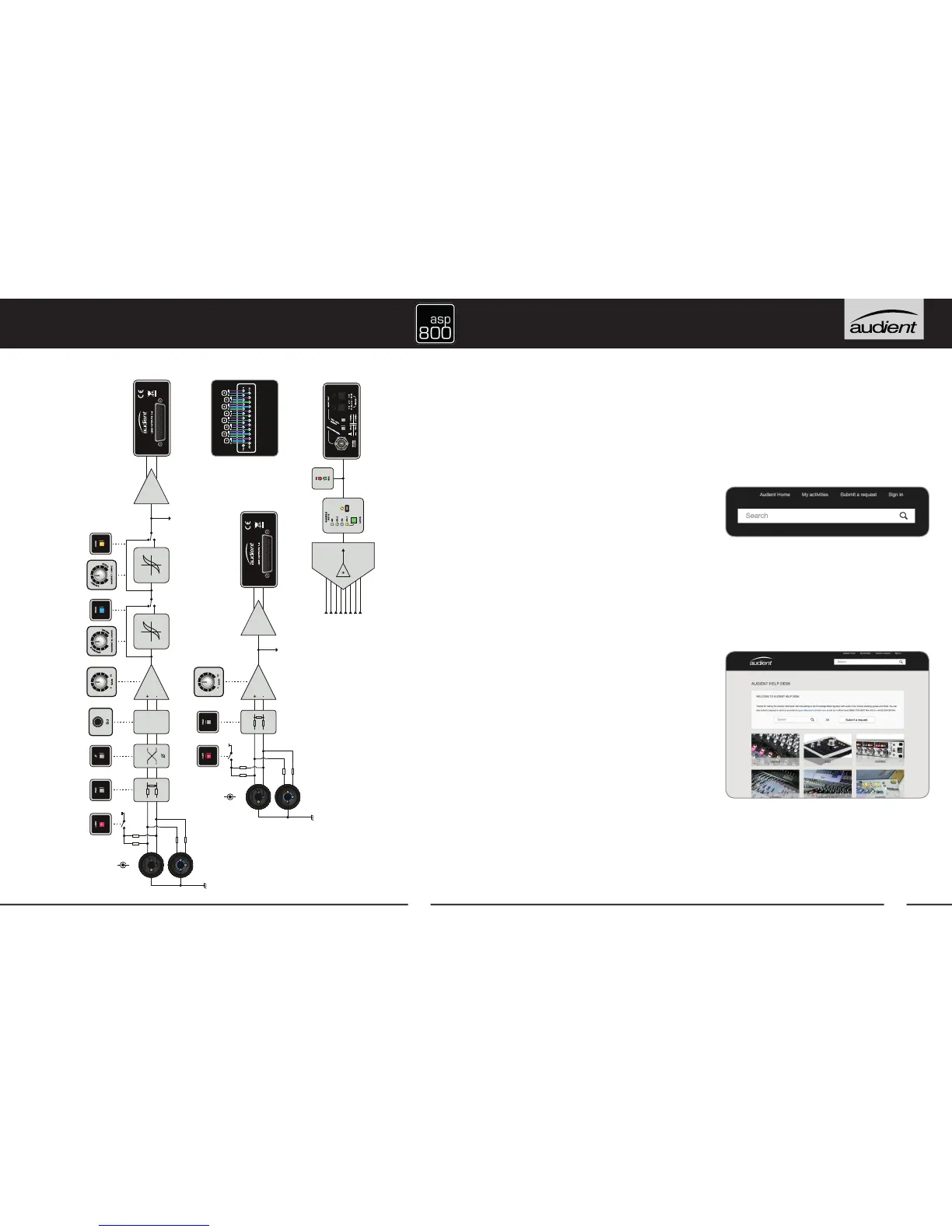

BLOCK DIAGRAM
CHASSIS
MIC
6k8
+48VDC
CH1
-15dB PAD
POLARITY
REVERSE
AUTO
SENSE
SELECT
MIC / D.I
IRON MAGNETIC SATURATOR HMX MOSFET SATURATOR
TO A-D CARD
PRISTINE 8-CHANNEL
PCM CONVERTER
CHANNEL 1
CHANNEL 2
CHANNEL 3
CHANNEL 4
CHANNEL 5
CHANNEL 6
CHANNEL 7
CHANNEL 8
24/96
ADC
116
dB-A
DYNAMIC RANGE
SIGNAL & PEAK
METERING
ADAT
SMUX
01001011
PEAK = -2dBFS
SIGNAL = -38dBFS
TOTAL SYSTEM GAIN
0 - 70dB
8-CHANNEL GROUND SENSING
ANALOGUE BALANCED OUTPUTS
CHANNEL 1 & CHANNEL 3 SHOWN ONLY
CHANNEL 2 AS CHANNEL 1 WITH D.I INSTRUMENT INPUT, HMX & IRON
CHANNELS 4-8 AS CHANNEL 3 WITH NO D.I, HMX & IRON
0dB
LINE DRIVER
TOTAL SYSTEM GAIN
0 - 70dB
0dB
LINE DRIVER
0 - 70 dB
DISCRETE CLASS-A
HYBRID MIC PRE
6k8
LINE
-10dB LINE PAD
CHASSIS
MIC
6k8
+48VDC
CH3
-15dB PAD
0 - 70 dB
DISCRETE CLASS-A
HYBRID MIC PRE
6k8
LINE
-10dB LINE PAD
ASP800 BLOCK DIAGRAM
CH1 & CH2 RETRO CHANNELS
CH3 - CH8
STANDARD
CHANNELS
BUILT-IN
BURR-BROWN
PCM4204 ADC
8-CHANNEL GROUND SENSING
ANALOGUE BALANCED OUTPUTS
8-CHANNEL SMUX
ADAT OPTICAL OUTPUTS
TO A-D CARD
ASP800 ANALOGUE OUTPUTS
TASCAM FORMAT DB25
TROUBLESHOOTING & FAQ
Troubleshooting
• My microphones are not producing
signal?
If required, double check that phantom
power is turned on via the front panel switch,
try swapping XLR cables, then double check
all connections to the recorder/interface.
• Cannot clock the ASP800 from an
external clock source, or you are
experiencing clicks & pops?
Double check that you have set the
clock source to external by using the front
panel SAMPLE RATE switch, press it until
it is flashing green. This selects external
clock mode and the unit is ready to accept
an incoming clock source via the BNC input.
From here, double check your master clock
source, and ensure it is connected via a
75ΩBNCcoaxialcabletotheASP800BNC
wordclock input.
Providing that you have a valid clock source,
ASP800 should sync to it without issue and
the SAMPLE RATE led in the switch will turn
to solid illumination. This shows that the unit
is locked. If you experience pops & clicks -
double check any master/slave device
configurations and cabling. A system should
only have one master clock.
FAQs
For more information and service
information / support, please search our
online Help Centre which can be found here:
www.audient.com/support
For technical support please create
a ticket in our online support system,
Zendesk which can also be found in the
support section of our website
(see link above).
Please consult the warranty statement on
page 27 for further information regarding
service requirements and our policies.
