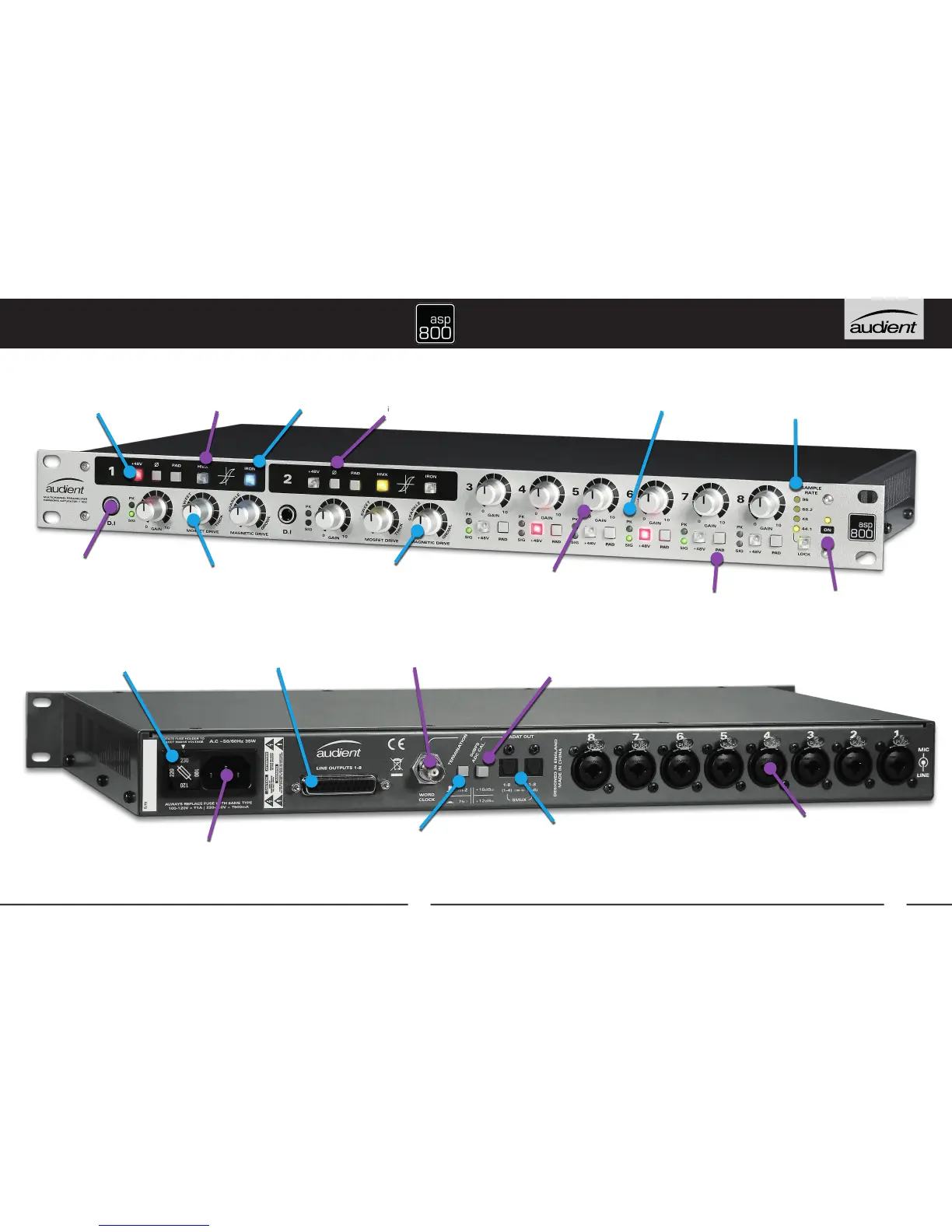

HARDWARE OVERVIEW
48V PHANTOM POWER
Stable regulated supply for your mics
POLARITY REVERSE
So you can be sure everything is
in-phase and as full sounding as possible
MAINS IEC INPUT
Please select your mains line voltage
by rotating the fuse holder and lining up
the text to the white arrow
! WARNING !
SWITCHABLE MAINS
VOLTAGE & FUSE HOLDER
T500mA (220-250V) or T1A (100-120V)
(always replace with same type)
BNC WORDCLOCK INPUT
Hi-Zor75ΩTermination
available on rear panel switch
DB25 ANALOGUE OUTPUTS
Use to feed the mic preamps into
outboard gear or analogue recorders
DISCRETE JFET D.I. INPUT
Sounds fantastic on guitars & basses!
HMX DRIVE
Sweep between “SWEET” and “THICK”
tones with this Class-A MOSFET drive
IRON DRIVE
Sweep between “SPARKLE” and “GROWL”
tones with this TRANSFORMER based drive
HMX ENGAGE
Engages Colour Stage 1
75 OHM TERMINATION
Terminates the workclock line at
ASP800, when last device in chain
ADC REFERENCE CALIBRATION
OUT - 0 dBFS = +18dBu (iD22 Professional)
IN - 0dBFS = +12dBu (iD14 Prosumer)
ADAT SMUX OUTPUTS
<48kHz = Both Ports (Ch 1-8 Parallel)
>48kHz = Split Ports (Ch 1-4 and 5-8)
XLR MIC / TRS LINE INPUTS
Line inputs are available on combi XLR TRS
jack inputs (padded into the mic pre)
SIGNAL / PEAK METERS
PEAK = -2dBFS, SIG = -38dBFS
SAMPLE RATE INDICATORS
Sample rate switch = green when using
external clock source, toggle through 4 internal
sample rates and then external sync with LOCK switch
70dB OF CLASS-A GAIN
Clean, quiet & punchy!
POWER INDICATOR
-15dB PAD
All 8 Channels feature a PAD for
increased headphone when tracking
IRON ENGAGE
Engages Colour Stage 2
