Stereo Outputs
ORIA provides two identical, balanced* stereo outputs (ST1 and ST2) to feed your
chosen stereo speakers. These outputs are relay-switched from the Stereo channels of
the surround outputs.
Surround Outputs

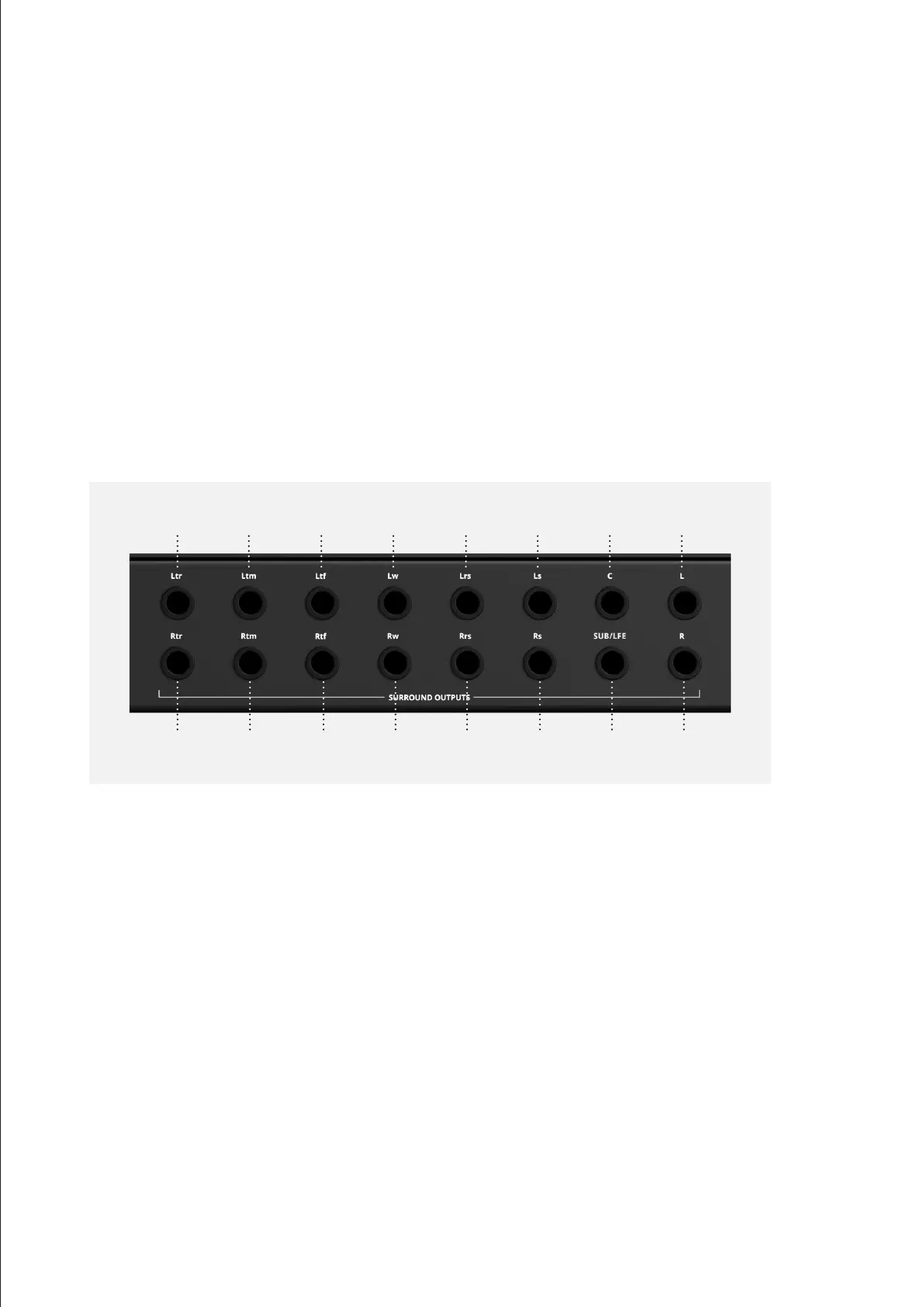

The ORIA also provides a comprehensive selection of balanced* surround outputs to
feed your chosen speaker configuration.
1. Left (R)
2. Right (R)
3. Center (C)
4. Low Frequency Eects (LFE)
5. Left Surround (Ls)
6. Right Surround (Rs)
7. Left Rear Surround (Lrs)
8. Right Rear Surround (Rrs)
9. Left Wide (Lw)
10. Right Wide (Rw)
11. Left Top Front (Ltf)
12. Right Top Front (Rtf)
13. Left Top Middle (Ltm)
14. Right Top Middle (Rtm)
15. Left Top Rear (Ltr)
16. Right Top Rear (Rtr)
1357913
24681014 1216
1115
*Due to the output topology implemented, unbalanced cables can be used if necessary.
