Block Diagram of the LC7i
)HHOLQJORVW"+HUH¶VDQLQWHUQDO³URDGPDS´WRKHOS\RXRXW7KLV

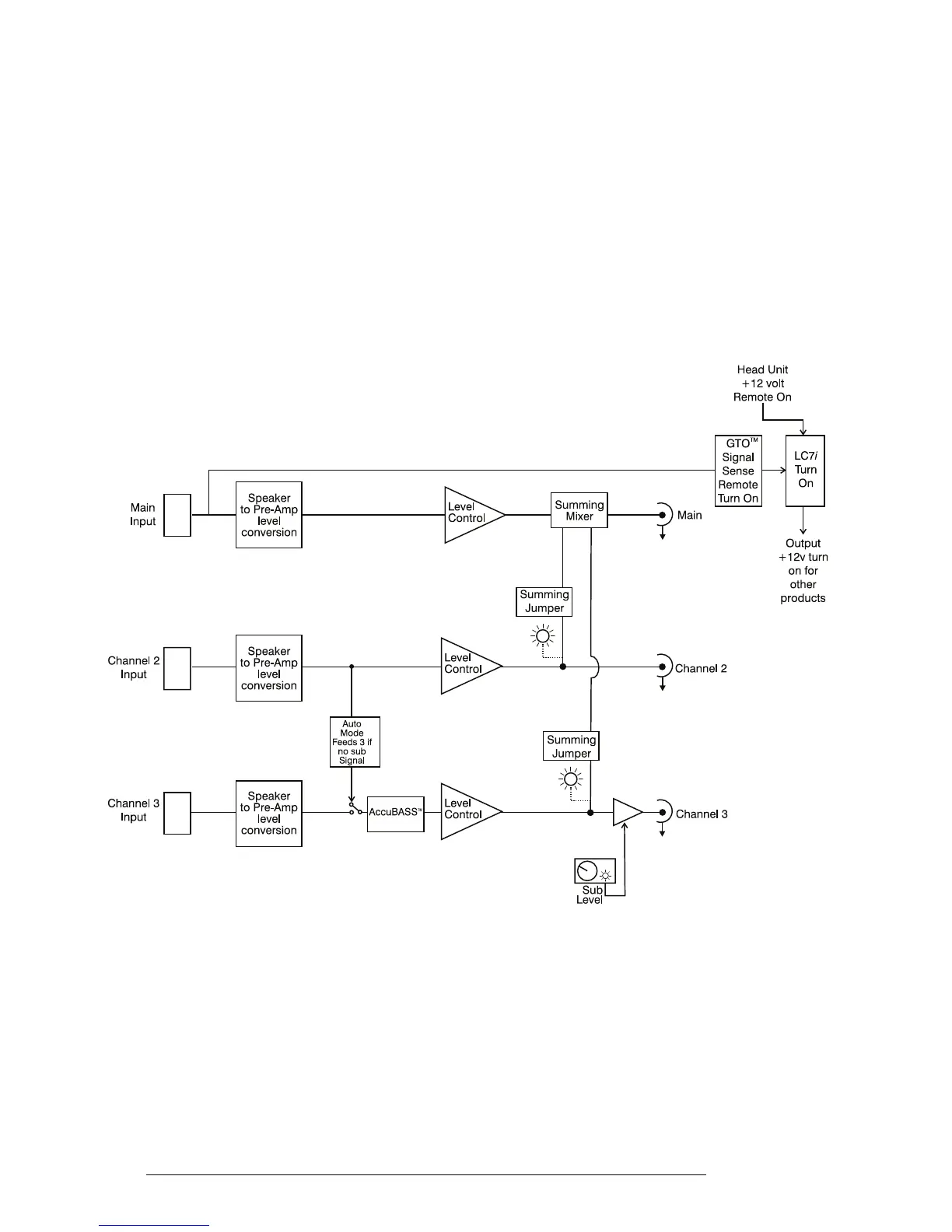

VLPSOL¿HGEORFNGLDJUDPLVDPDSRIWKHSDWKVWKHVLJQDOVWDNH
through the LC7i. With this map you can follow each input through
the processor. If you have an issue with the hook-up of your LC7i
and need to call for technical assistance, please have this diagram
available. We can help you trace the problem to get your system up
and running.
