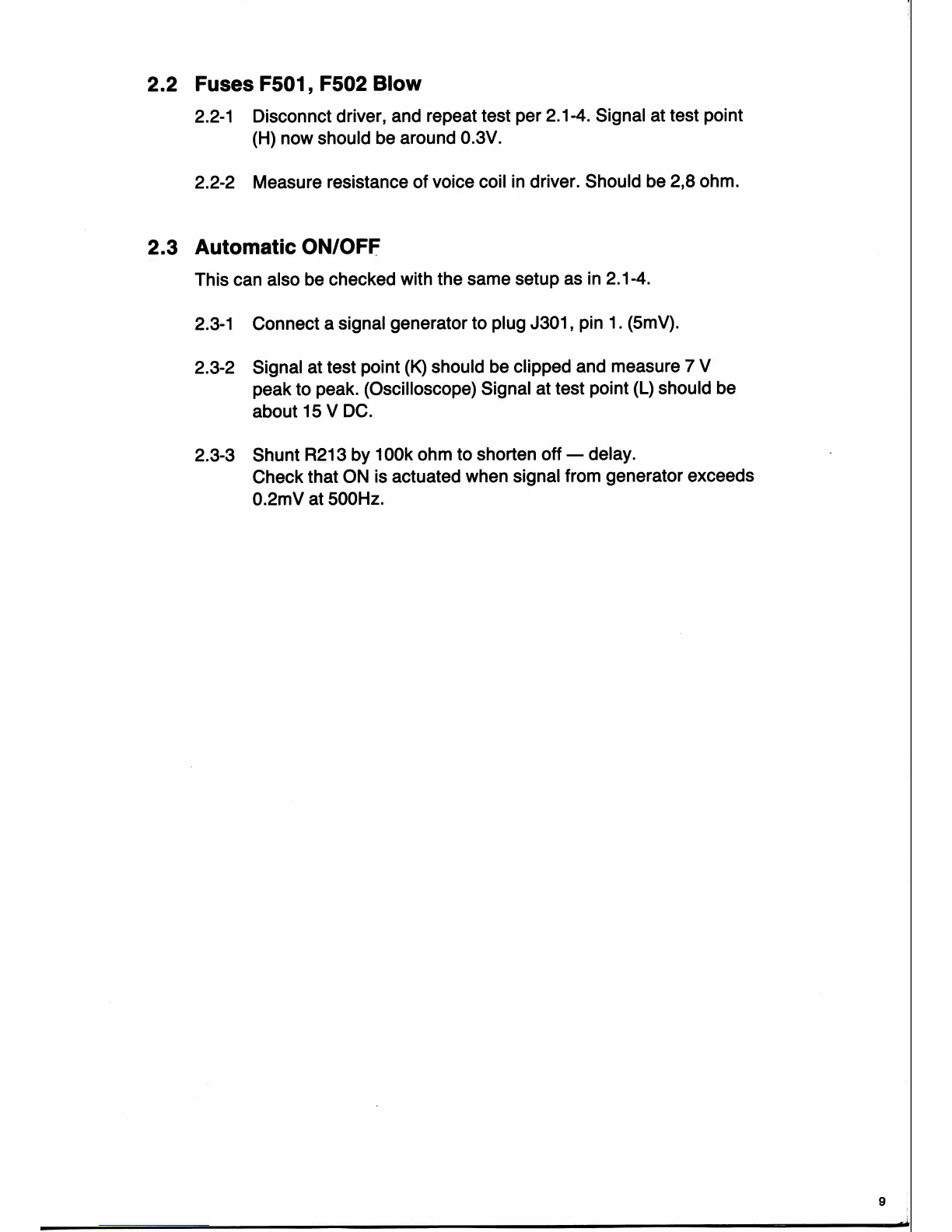

Page 9 (Fuse Blow Troubleshooting)

Audio Pro B1-45 - Fuse Blow Troubleshooting; Auto ON;OFF Malfunctions

Audio Pro B1-45

13 pages

Save Page as PDF

To Next Page

To Next Page

To Previous Page

To Previous Page

Loading...

Table of Contents

List of Contents2
Technical Description3
Power Supply3
Automatic On/Off4
Input Stage5
Filter5
Ace-Bass Circuits6
Power Amplifier7
Trouble Shooting Tips8
B1-45 Does Not Work8
Fuses F501, F502 Blow9
Adjustments10
Bias Current in Power Amplifiers10
Negative Output Resistance10
Spare Parts10
Enclosures11
Circuit Diagram 55-21279-0111
