Audio Research Reference 6 - Fuse Locations and Ratings

19
Maintenance
The Reference 6 has three replaceable fuses
to help protect the unit in the event of a
spurious electrical surge or other situation.
When replacing fuses, please use only
the specied ratings. Using ‘slugs’ or
other devices intended to bypass the
function of the fuse will not only void
the warranty in the event of damage,
but could also cause serious system
failure, re, or personal injury.
A.C. Mains Fuse
120 V units: 5A slow blow
220-240 V units: T4
CE Fuse
220-240 V units only: T1A
Note: 120 V units will have a wire
jumper in place of the fuse.
Microprocessor Fuse
120 V units: 250mA
220-240 V units: T125 mA

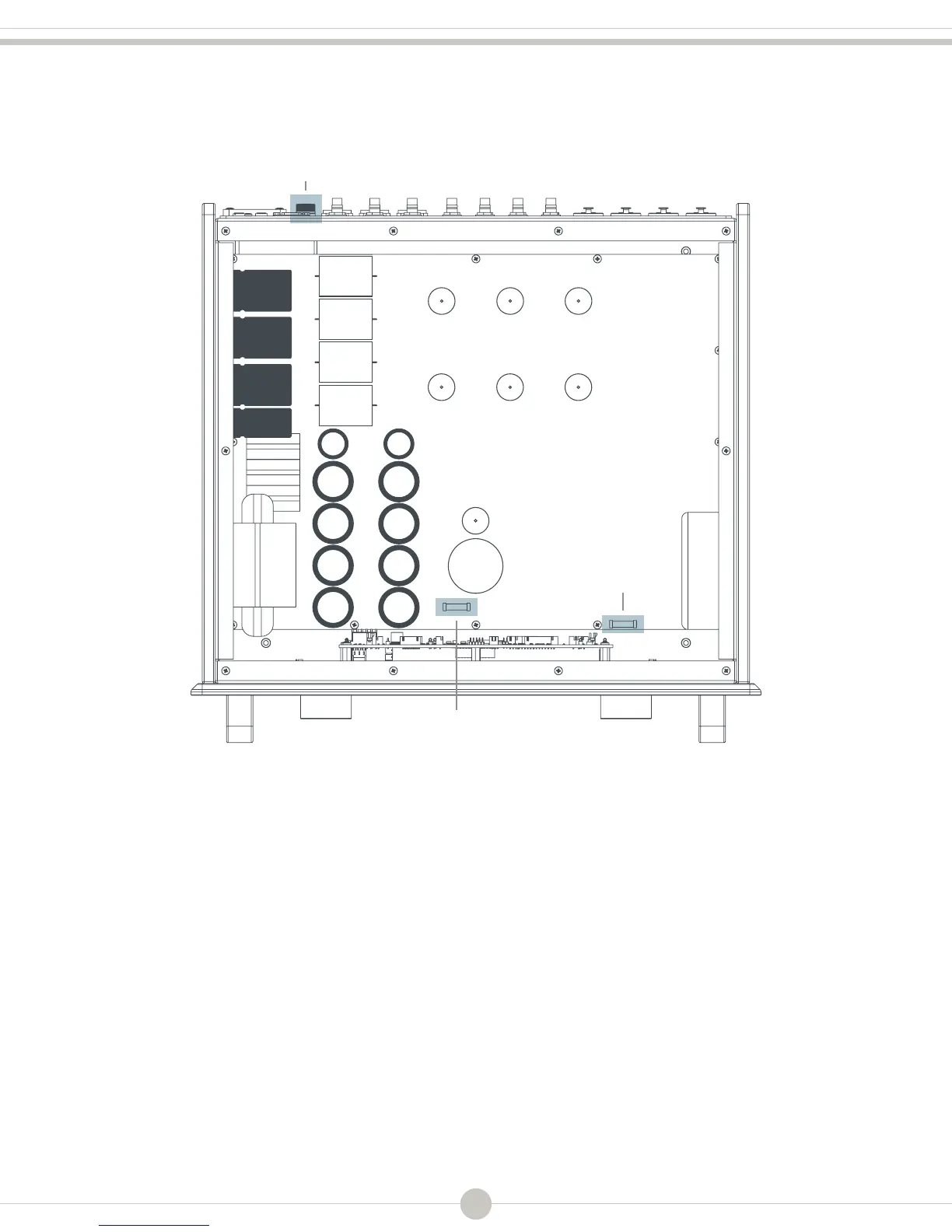

Fuse Values and Locations
A.C. Mains Fuse
CE Fuse
(220-240 V units only)
Microprocessor
Fuse
