Audio System X 100.2 - RCA Connection

-4-

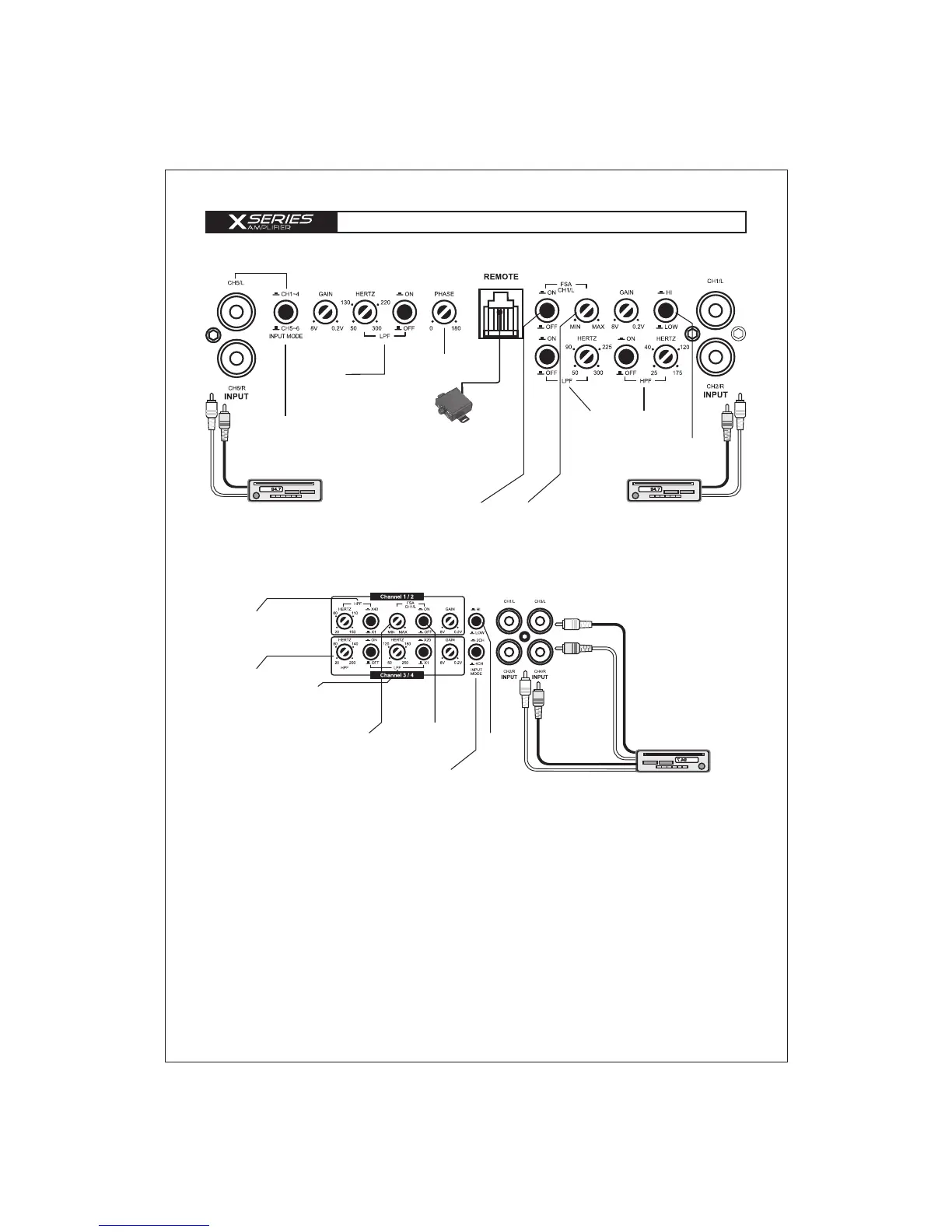

RCA connection
X 75.6 (channel 5 + 6)
HEAD UNIT
Wired Remote
Control RTC
(optional)
HEAD UNIT HEAD UNIT
X 70.4 / X 75.6 . (channel 1 - 4)
RCA INPUT
mode
4 CH / 6 CH
RCA INPUT
mode
4 CH / 6 CH
The x series amplifier offers RCA-Inputs, which are connected through cinch cables with the
preamplifier-outputs of the head unit.
With the aid of the variable high- and lowpassfilter and the gain-controller you are able to adjust the
amplifier on to your prefered taste of hearing, the circumstances of the vehicle and to the speakers.
Another special feature is the FSA (Front Stage Adjuster). Ths is a analog phase correction for the left
front channel. By adjusting the FSA volume you can set the sound and voices in front of you.
In this regard, AUDIO SYSTEM Germany recommends to adjust your amplifier through a
specialized service center, dealer or a specialist.
Optional the x 75.6 und X 100.2 can be installed to a wire remote controller RTC, which allows you
to rule the amplifier in front of the car (only if the LPF is switched „ON“).
.
FSA
volume
FSA on/off
switch
FSA on/off
switch
HI / LOW
switch
HI / LOW
switch
LPF
on/off
1x o. 20x
switch
LPF
switch
on/off
LPF
switch
on/off
HPF
switch
on/off
Variable
phase-shift
HP
filter
1x o. 40x
X 100.2
HP
filter
FSA
volume
