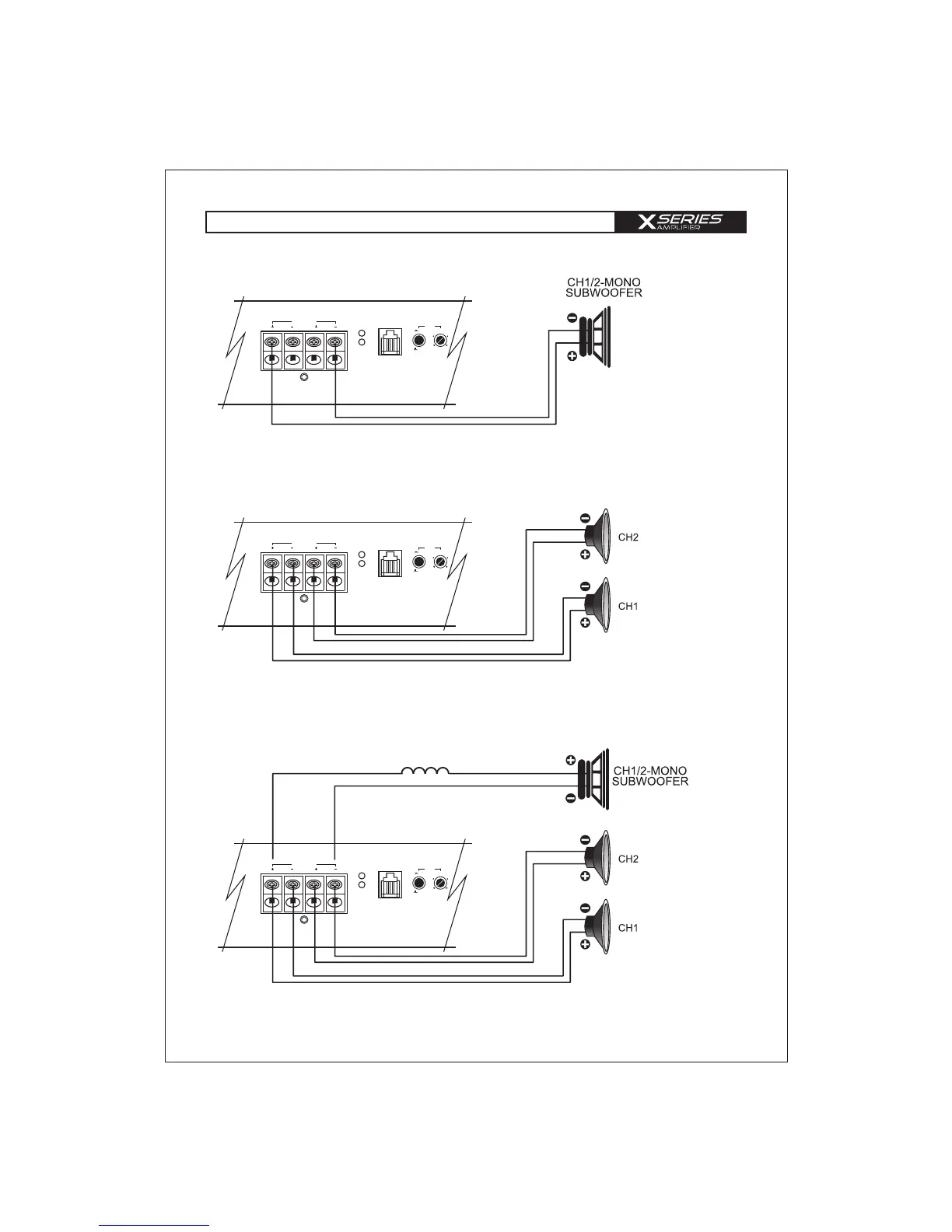

speaker connection
-5-
1-Channel Bridged
2-Channel Stereo
Tri-Mode
Speaker
Impedance
4 ~ 8 ohm
Speaker
Impedance
2 ~ 8 ohm
Speaker
Impedance
4 ~ 8 ohm
X 100.2 / X 75.6 (channel 5 + 6)
Protection
Power
REMOTE
+ BRIDGE -
CH1/L CH2/R
ON
OFF
HERTZ
50 300
LPF
90 225
Protection
Power
REMOTE
+ BRIDGE -
CH1/L CH2/R
ON
OFF
HERTZ
50 300
LPF
90 225
Protection
Power
REMOTE
+ BRIDGE -
CH1/L CH2/R
ON
OFF
HERTZ
50 300
LPF
90 225
coil
