Assistent 30 integrated tube amplifier__________________________________

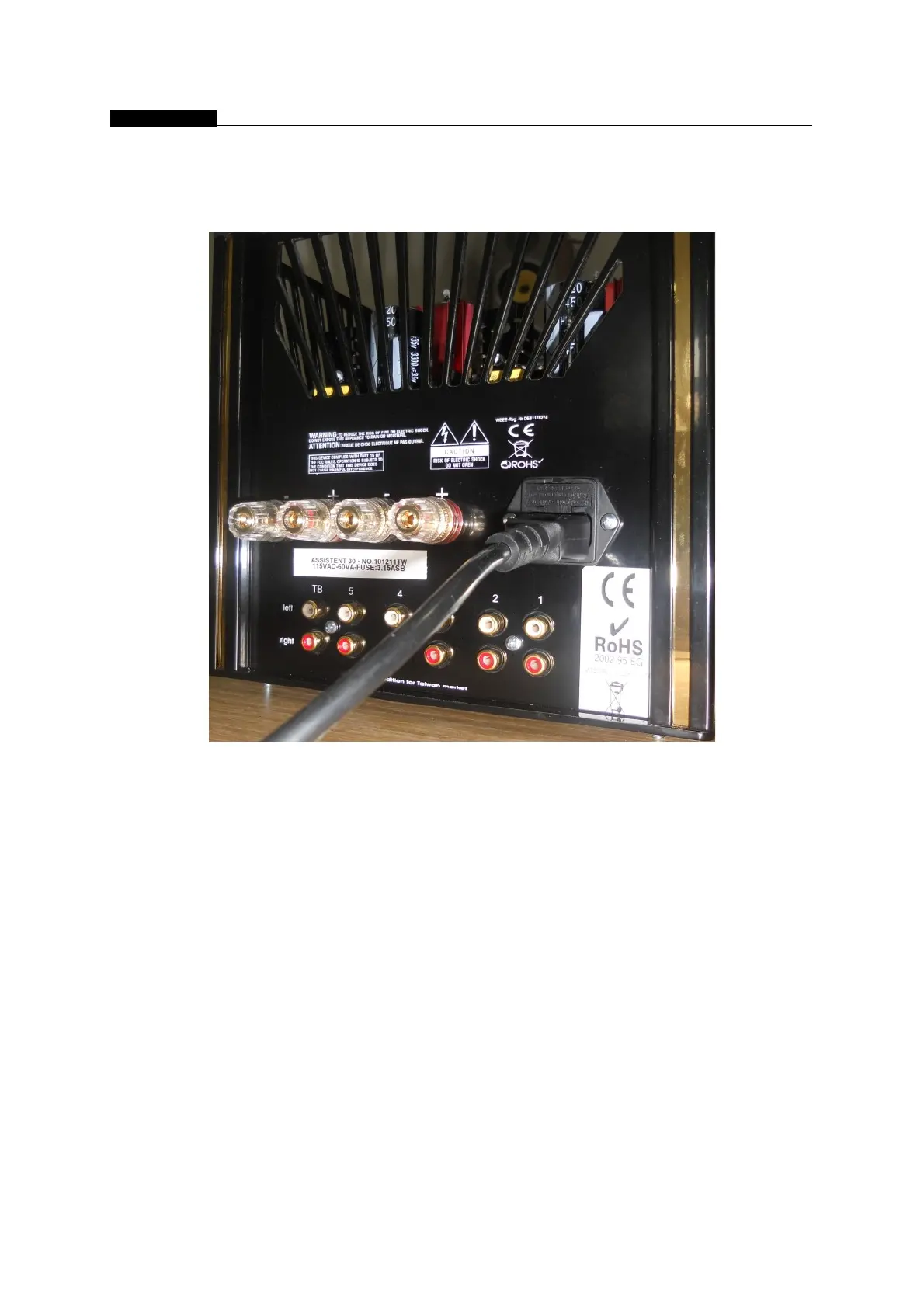

REAR PANEL
INPUT TERMINALS
The 5 pair RCA are standard terminals for the use of unbalanced input signals coming from the
signal sources . The ASSISTENT 30 uses for all inputs female jackets and for the TAPE output one
pair of RCA jackets too.
The 5 RCA INPUTs are standard RCA terminals for the
use of unbalanced input signals coming from most signal sources .
OUTPUT TERMINALS
Speaker terminals - 8 Ohm - are located on the rear panal, close to the input sources.
Two pairs of heavy duty gold plated binding posts for each cannel are supplied.
CONNECT your loudspeaker positive terminal to the
amplifier (+) output terminal. Connect your loudspeaker
negative terminal to the ( - ) output terminal.
POLARITY - PHASING
Quality of the connections must be examined to ensure a high
performance trouble free operation is enjoyed. Check that the connections are tight, but do not
overtighten with exessive use of spanners etc. If bare wires are used, make sure that no loose
