R-60 / Nov 1994R-60 / Nov 1994
R-60 / Nov 1994R-60 / Nov 1994
R-60 / Nov 1994
CC
CC
C
ONSOLEONSOLE
ONSOLEONSOLE
ONSOLE
L L
L L
L
OGICOGIC
OGICOGIC
OGIC
& I/O C & I/O C
& I/O C & I/O C
& I/O C
ONNECTIONSONNECTIONS
ONNECTIONSONNECTIONS
ONNECTIONS
Tape Remote Switches 4-6Tape Remote Switches 4-6
Tape Remote Switches 4-6Tape Remote Switches 4-6
Tape Remote Switches 4-6
(CT19-CT32, R-60 Mother Board load sheet dwg)-
(CT7-CT12, R-60 Ext Mother Board load sheet dwg)
Pin 1 - SWITCH 4, LED CATHODE
Pin 2 - SWITCH 5, LED CATHODE
Pin 3 - SWITCH 6, LED CATHODE
Pin 4 - SWITCH 4, LED ANODE
Pin 5 - SWITCH 5, LED ANODE
Pin 6 - SWITCH 6, LED ANODE
Pin 7 - SWITCH 4, COMMON
Pin 8 - SWITCH 5, COMMON
Pin 9 - SWITCH 6, COMMON
Pin 10 - SWITCH 4, NORMALLY OPEN
Pin 11 - SWITCH 5, NORMALLY OPEN
Pin 12 - SWITCH 6, NORMALLY OPEN
Simple PhoneSimple Phone
Simple PhoneSimple Phone
Simple Phone
(CT1-CT14, R-60 Mother Board load sheet dwg)
Pin 1 - FROM CALLER ONE, SHIELD
Pin 2 - FROM CALLER ONE, LOW
Pin 3 - FROM CALLER ONE, HIGH
Pin 4 - AUDIO COMMON
Pin 5 - SPARE, LOW
Pin 6 - SPARE, HIGH
Pin 7 - TO CALLER ONE, SHIELD
Pin 8 - TO CALLER ONE, LOW
Pin 9 - TO CALLER ONE, HIGH
Pin 10 - AUDIO COMMON
Pin 11 - SPARE, LOW
Pin 12 - SPARE, HIGH
Simple PhoneSimple Phone
Simple PhoneSimple Phone
Simple Phone
(CT19-CT32, R-60 Mother Board load sheet dwg)-
(CT7-CT12, R-60 Ext Mother Board load sheet dwg)
Pin 1 - NO CONNECTION
Pin 2 - NO CONNECTION
Pin 3 - NO CONNECTION
Pin 4 - MACHINE COMMON
Pin 5 - STOP
Pin 6 - START
Pin 7 - NO CONNECTION
Pin 8 - NO CONNECTION
Pin 9 - NO CONNECTION
Pin 10 - NO CONNECTION
Pin 11 - +5V LOGIC SUPPLY (FUSED)
Pin 12 - DIGITAL COMMON

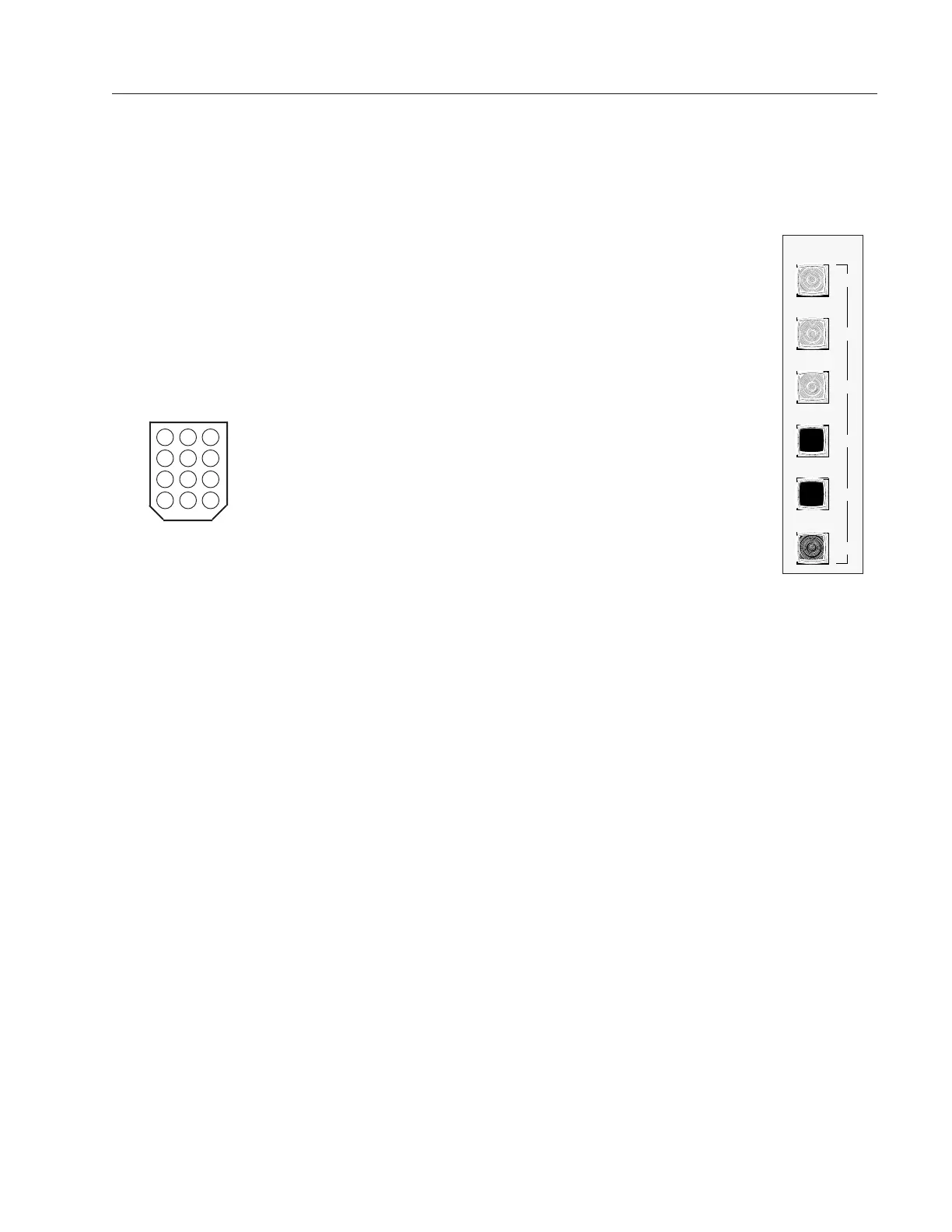

Key diagram showing back of
typical 12-pin I/O connector
plug, with pin numbers oriented
as they would be seen while
wiring. Beveled corners
correspond to PCB mounted
mating sockets.
5 46
8 79
11 1012
2 13
TA PE
PLAY
REC
STOP
REW
FF
RTZ
SW 1
SW 2
SW 3
SW 4
SW 5
SW 6
R-60 / June 2000
The SP-60 module does not
connect directly to the
telephone line. It must be
connected to a telephone
hybrid.
