AudioCodes™ MP-104 Gateway Quick Start Installation Guide
August 2004

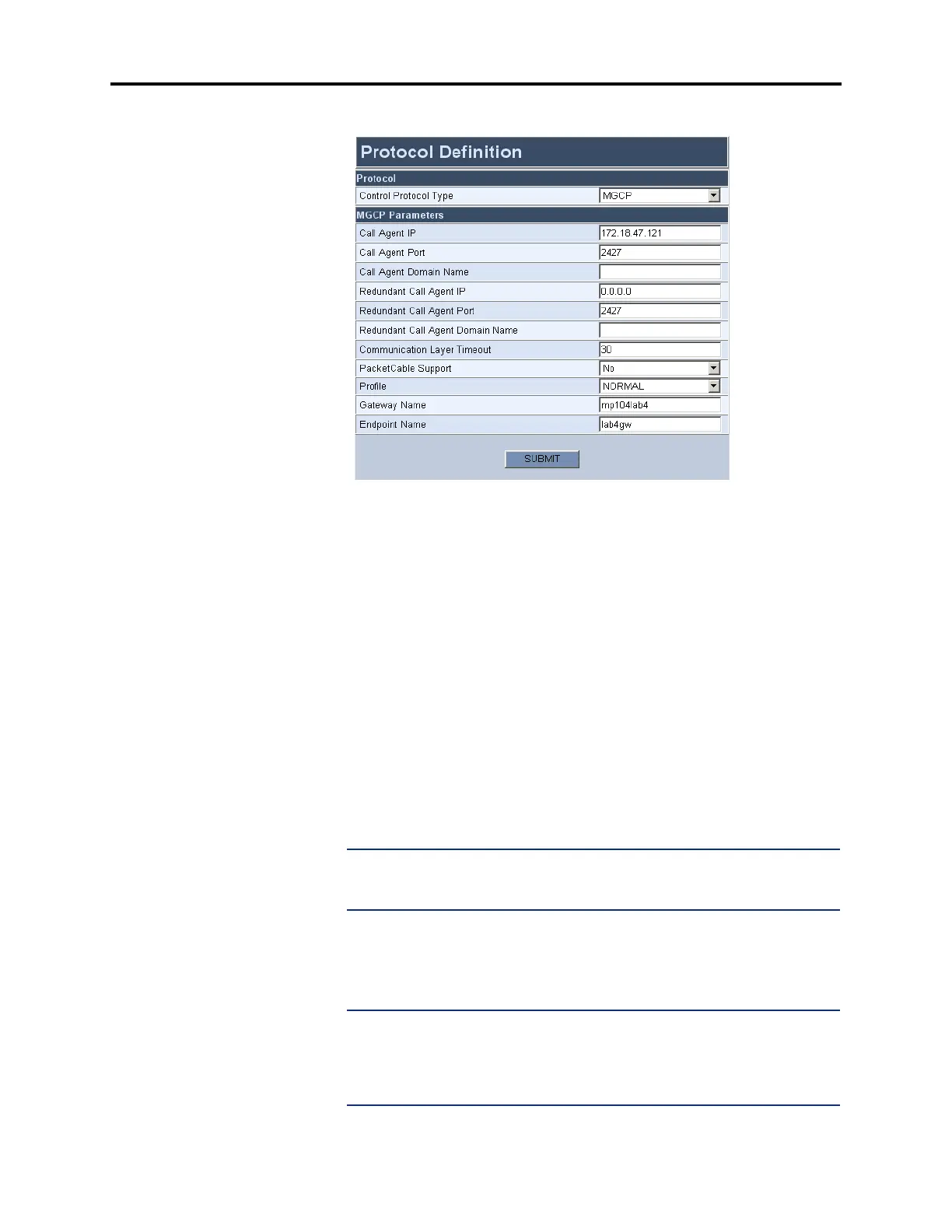

5. Protocol Management: Configure the Protocol Management field, as described below.
— Control Protocol Type: Should be set to MGCP.
— Call Agent IP: Should match the IPRC IP address.
— Call Agent Port: Should be set to 2427.
— Call Agent Domain Name: Leave this field blank.
— Redundant Call Agent IP: Should be set to 0.0.0.0.
— Redundant Call Agent Port: Should be set to 2427.
— Redundant Call Agent Domain Name: Leave this field blank. Inter-Tel does
not currently support this feature.
— Communication Layer Timeout: Should be set to 60 seconds.
— Packet Cable Support: Should be set to No.
— Profile: Should be set to NORMAL.
— Gateway Name: Enter the name to identify this gateway on the network, such
as MP104v4.4 (case-sensitive with no spaces or special characters).
NOTE: With a v8.2.x or later firmware IPRC, ensure the names match those in
Axxess Database Programming (under System\Cabinets\IPRC (32-
Device)\Devices\MGCP Gateway and Endpoint).
— Endpoint Name: The default endpoint name is “ACgw” (case-sensitive) and
should not be changed to avoid hostname resolution complications. Each end-
point has a number appended to it. For example, line 1 is assigned the name
“ACgw0,” line 2 is “ACgw1,” and line 4 is “ACgw3.”
NOTE: With a v1.5.1 firmware IPRC, ensure the names match those on the
MGCP Endpoint Name Settings page in the IPRC Web page. With a v8.2.x or
later firmware IPRC, ensure the names match those in Axxess Database Pro-
gramming (under System\Cabinets\IPRC (32-Device)\Devices\MGCP End-
point).
To apply the changes, click SUBMIT.
